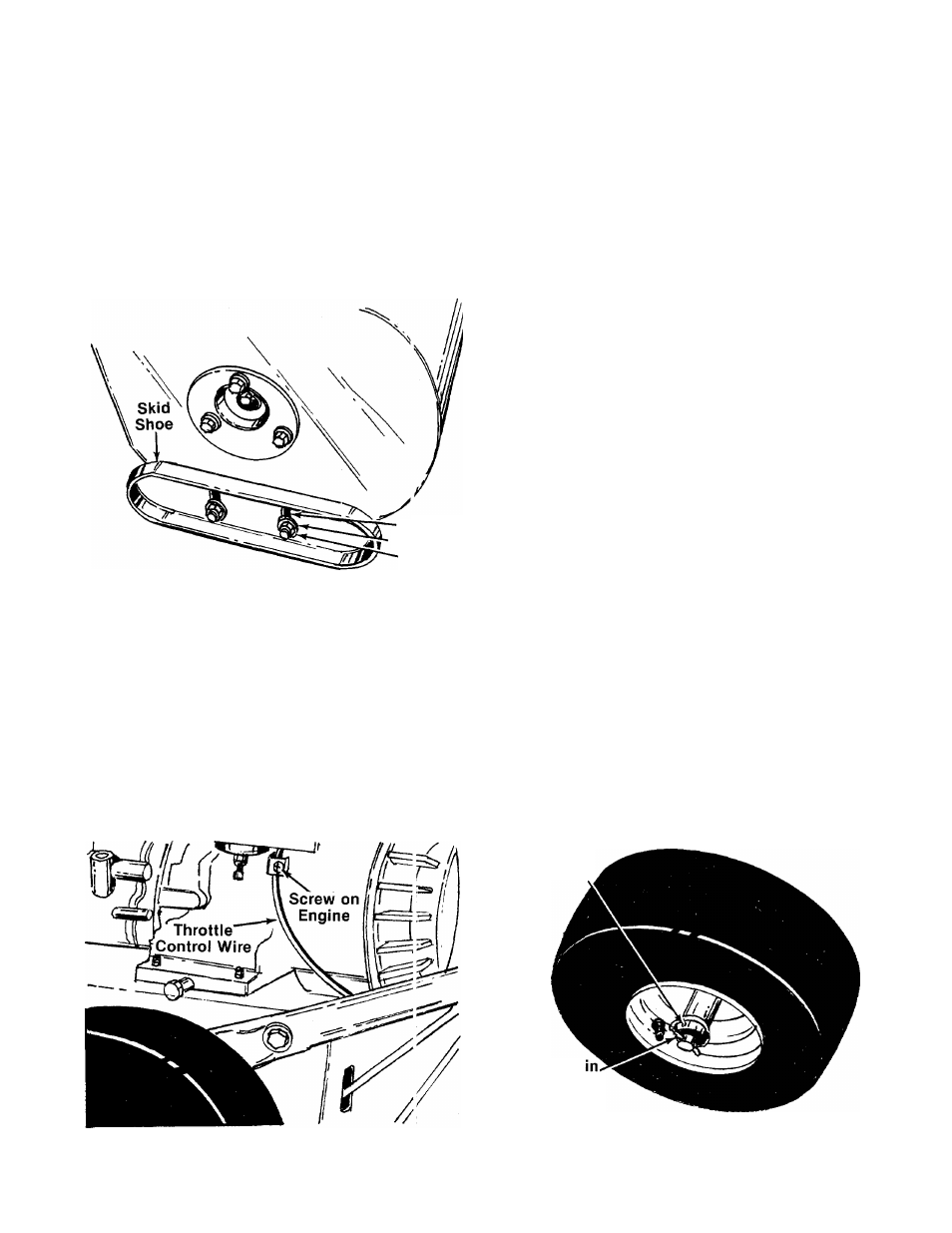

SKID SHOE ADJUSTMENT
The space between the shave plate aid the
ground can be adjusted for close snow removal by
placing skid shoes in the low position. Use middle
or high position when area to be cleared is
uneven. See figure 23.
To adjust skid shoes, loosen the four hex nuts and
carriage bolts. Move skid shoes to desired posi­
tion. Retighten nuts and bolts securely.
CARBURETOR ADJUSTMENT
H gh
Middle
L )w
FIGURE 23.
THROTTLE CONTROL ADJUSTMENT
If adjustment becomes necessary, the tirottle
control wire assembly can be reset as follc ws:
1. Loosen, but do not remove, screw securing
throttle control wire assembly at engine. See
figure 24.
2. Move throttle control lever on handle panel to
“FAST” position.
3. Move control lever on engine to full ope i posi­
tion. Retighten screw to secure throttle con­
trol wire assembly.
Ai
WARNING
If any adjustments are made to the
engine while the engine is running
(e.g. carburetor), keep clear of all
moving parts. Be careful of heated
surfaces and muffler.
Minor carburetor adjustment may be required to
compensate for differences in fuel, temperature,
altitude and load.
Refer to the separate engine manual packed with
your unit for carburetor adjustment information.
DRIVE WHEELS (Model 800)
The wheels on the model 800 snow thrower may
be adjusted for three different methods of opera­
tion. The adjustment is made by placing the klick
pins in one of two different holes on each side of
the unit. See figure 25.
1. Free Wheeling Operation—Place both klick
pins in the outside hole in the axle. This posi­
tion allows easier movement when the engine
is not running.
2. Both Wheels Driving—Place both klick pins in
the hole in the hub next to the rim. This posi­
tion is good for heavy snow as there is power
drive in both wheels.
3. One Wheel Driving —Place klick pin in the out­
side axle hole on one side and in the hole in
the hub next to the rim on-the other. This posi­
tion gives power drive to one wheel only, mak­
ing the unit easier to maneuver.
Hole in Hub
Next to Rim
FIGURE 24.
Klick Pin
Outside Hole
in Axle
FIGURE 25.
