OPERATION
KNOW YOUR TILLER
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.

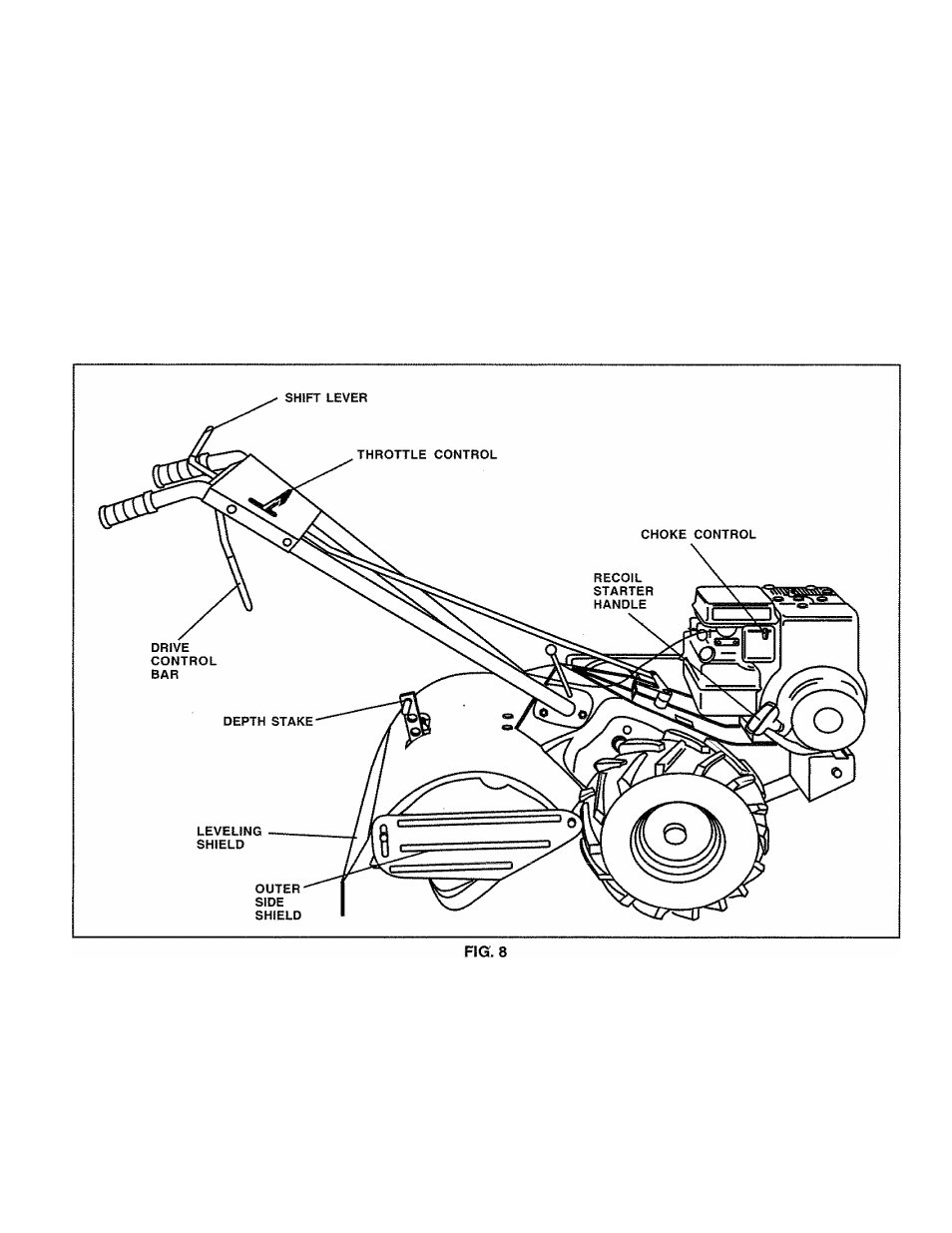

Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save this
manual forfuture reference.
These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their
meaning.
F N R A © © * ^ * ^ l \ i a ^
TiLLiNG FORWARD NEUTRAL REVERSE CAUTION ENGINE ENGINE
FAST
OR WARNING ON
OFF
SLOW
CHOKE
FUEL
OIL
RUN
STOP
o
MEETS ANSI SAFETY REQUIREMENTS
Our tillers conform to the safety standards of the American National Standards Institute.
THROTTLE CONTROL - Used to control engine speed.
DRIVE CONTROL BAR - Used to engage tiller.
DEPTH STAKE - Controls depth at which tiller will dig.
LEVELING SHIELD - Levels tilled soil.
OUTER SIDE SHIELD - Adjustable to protect small plants
from being buried.
SHIFT LEVER - Used to shift transmission gears.
RECOIL STARTER HANDLE - Used to start the engine.
CHOKE CONTROL - Used when starting a cold engine.
