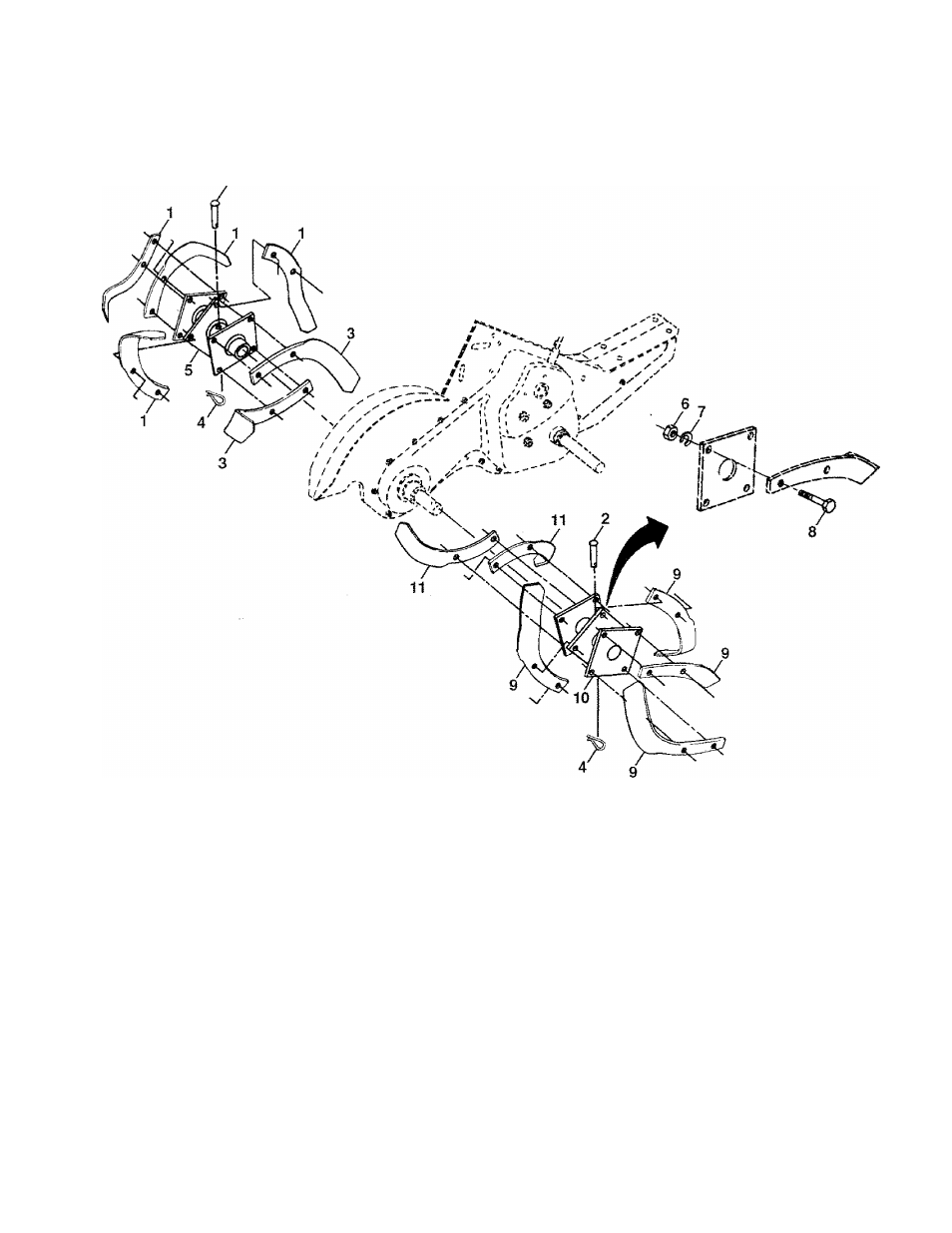

REPAIR PARTS
TINE ASSEMBLY
TILLER - - MODEL NUMBER CHDR500E
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO,
PART
NO.
DESCRIPTION
1
4459J
Tine, Outer, L.H.
8
74610616
Bolt, Hex 3/8-24 x 1
2
132673
Clevis Pin
9
4460J
Tine, Outer, R.H.
3
6554J
Tine, inner, L.H.
10
132728
Assembly, Hub and Plate, R.H.
4
3146R
Retainer, Spring
11
6555J
Tine, Inner, R.H.
5
6
132727
73610600
Assembly, Hub and Plate, L.H.
Nut, Hex 3/8-24
NOTE: All component dimensions given in U.S. incl"
7
10040600
Washer, Lock 3/8
1 inch = 25.4 mm
