Poulan CHDR500E - Manual (Page 21)

TILLER - - MODEL NUMBER CHDR500E

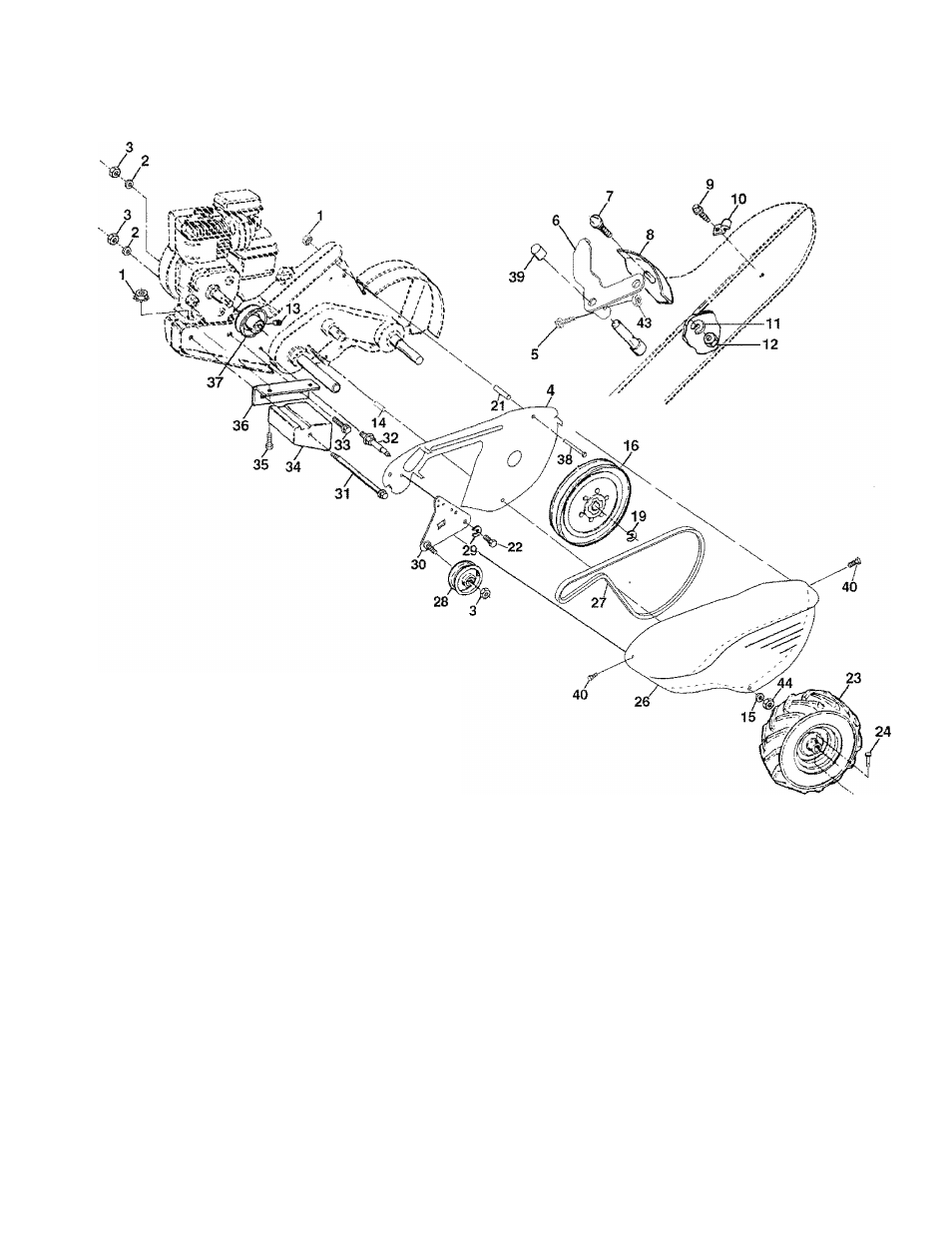

MAINFRAME, LEFT SIDE
REPAIR PARTS
KEY PART
NO. NO. DESCRIPTION
1 73510500 Nut, Keps 5/16-18
2 10040600 Washer, Lock 3/8
3 73220600 Nut, Hex 3/8-16
4 170127 Shield, Inner Belt Guard
5 154734 Screw, Shift Lever
6 110111X Lever, Shift
7 72110404 Bolt, Carnage 1/4-20 x 1/2 Gr. 5
8 8700J Plate, Shift Indicator
9 86777 Screw, Hex, Washer Head, Slotted
#10-24x1/2
10 9484R Clip
11 10040400 Washer, Lock 1/4
12 73220400 Nut, Hex 1/4-20
13 23230506 Screw, Set, Hex 5/16-18x3/8
14 156117 Spacer, Split 0.327 x 0.42 x 1.220
15 19111116 Washer 11/32 x 11/16 x 16 Ga.
16 145102 Sheave, T ransmission
19 12000028 Ring, Retainer
21 110652X Spacer, Split 0.327 x 0.42 x 2.09
22 74770508 Bolt, Fin Hex 5/16-24 X 1/2
23 102190X Tire
150750 Rim
795R Tire Valve
24 126875X Rivet, Drilled
25 4497H Clip, Hairpin
26 165501X428 Guard, Beit
27 132801 Belt, V
28 104679X Pulley, Idler
25^
KEY
NO. PART
NO.
DESCRIPTION
29 12000032 Ring, Klip
30 159229 Bracket, Idler
31 102384X Bolt, Hex 5/16-16 X 12
32 102141X Shaft, Idler Arm
33 74760616 Bolt, Hex 3/8-16 X 1
34 102383X Counterweight, L. H.
35 74760524 Bolt, Hex 5/16-18x1-1/2
36 102331X Bracket, Reinforcement, L. H.
37 130812 Sheave, Engine
38 74760544 Bolt, Fin Hex 5/16-18
X
2-3/4
39 140062 Cap, Plunger
40 170488 Screw Hex Wsh Sit # 10-24 x .50
43 69180 Nut, Lock #10-24
44 73800500 Nut, Lock 5/16-18
NOTE: All componeni dimensions given in U.S. inches.
1 inch - 25.4 mm
21
