ASSEMBLY
Your new tilier has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To
ensure safe and proper operation of yourtiiler, all parts and hardware you assemble must be tightened securely. Use the correct
tools as necessary to insure proper tightness.
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly easier. Standard
wrench sizes are listed.
(1) Utility knife
(1) Tire pressure gauge
(1) Pair of pliers
(1) 9/16" wrench

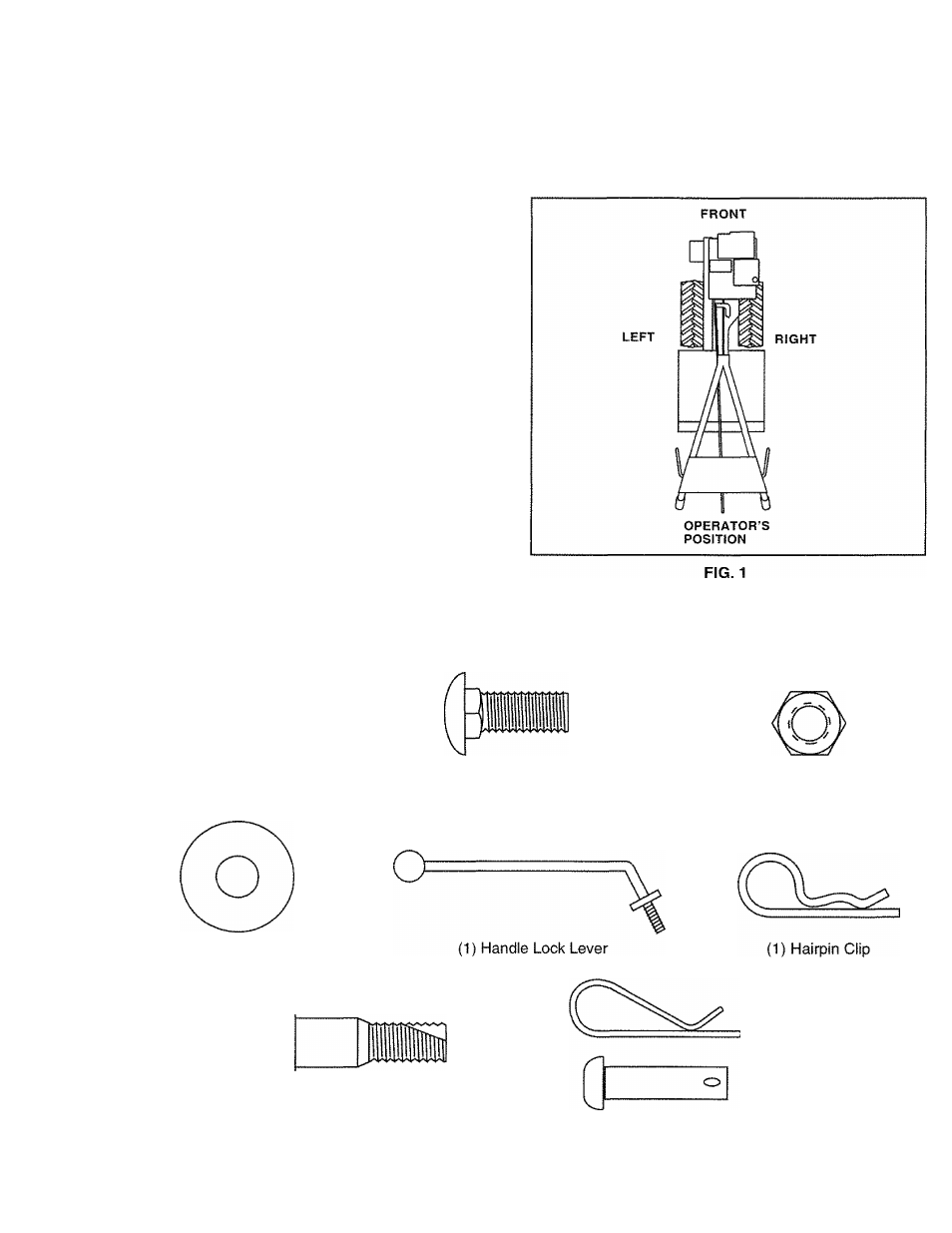

OPERATOR’S POSITION (See Fig. 1)
When right or left hand is mentioned in this manual, it means
when you are in the operating position (standing behind tiller
handies).
CONTENTS OF HARDWARE PACK
(2) Handle Locks
(1) Carriage Bolt
3/8-16 UNCxI Grades
(1) Center Locknut
3/8-16 UNC
(1) Flat Washer 13/32 x 1 x 11 Gauge
(1) Pivot Bolt
3/8-16 UNC Grade 5
Extra Shear Pins & Clips
