CUSTOMER RESPONSIBILITIES
MUFFLER
Do not operate tiller without muffler. Do not tamper with
exhaust system. Damaged mufflers orspark arresters could
create a fire hazard. Inspect periodically and replace if
necessary. If your engine is equipped with a spark arrester
screen assembly, remove every 50 hours for cleaning and
inspection. Replace If damaged.
SPARK PLUG
Replace spark plugs at the beginning of each tilling season
or after every 50 hours of use, whichever comes first. Spark
plug type and gap setting is shown in “PRODUCT SPECIFI
CATIONS” on page 3 of this manual.
TRANSMISSION
Once a season, lubricate the right hand side gear case
grease fitting with 1 oz. of EP #1 Grease.
CLEANING
•
Clean engine, wheels, finish, etc. of all foreign matter.
•
Keep finished surfaces and wheels free of all gasoline,
oil, etc.
•
Protect painted surfaces with automotive type wax.
We do not recommend using a garden hose to clean your unit
unless the muffler, air filter and carburetor are covered to
keep water out. Water in engine can result in a shortened
engine life.
SERVICE AND ADJUSTMENTS
A
CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come into
contact with plug.
TILLER

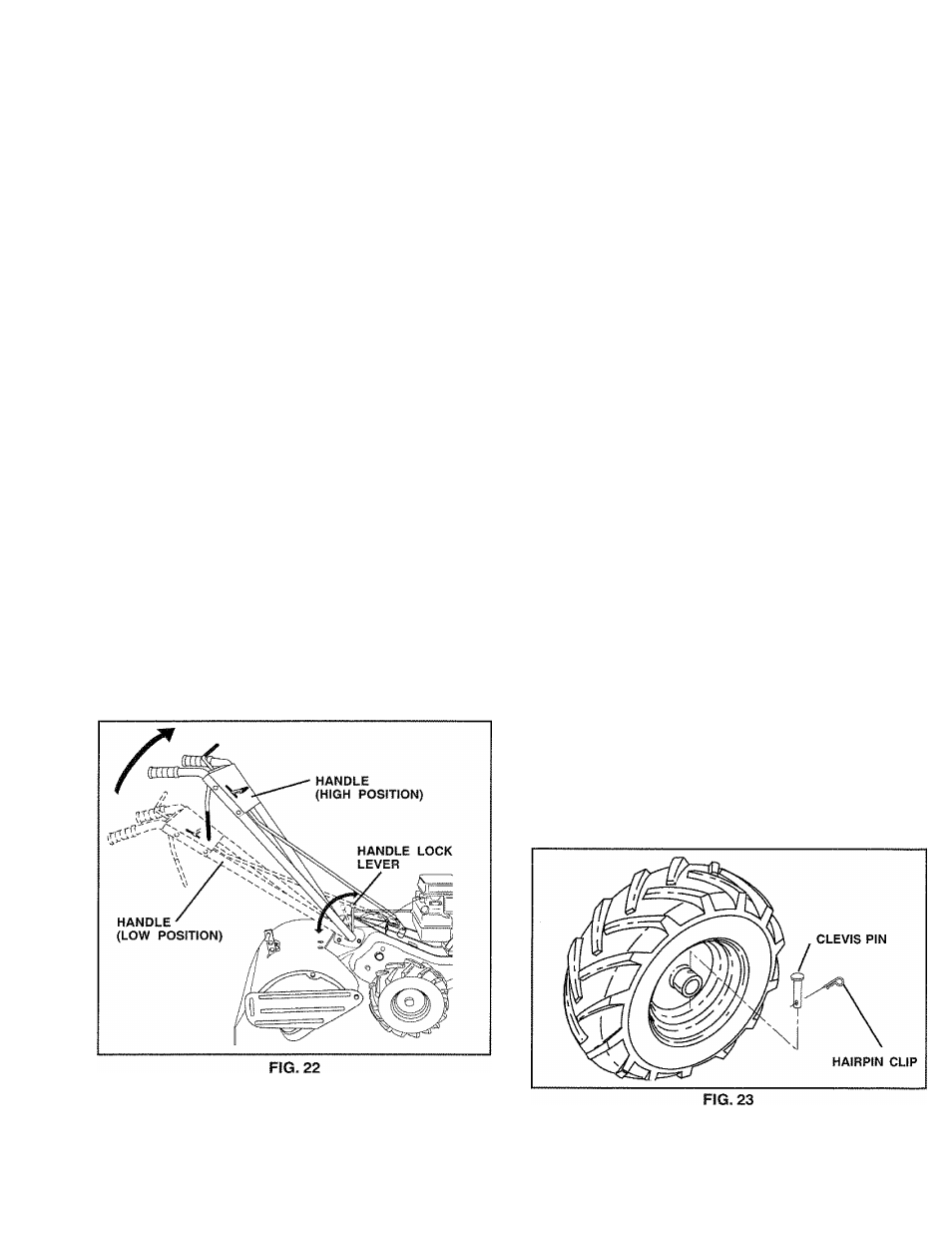

TO ADJUST HANDLE HEIGHT (See Fig. 22)
Select handle height best suited for your tilling conditions.
Handle height will be different when tiller digs into soil.
•
First loosen handle lock lever.
•
Handle can be positioned at different settings between
“HIGH”and “LOW” positions.
•
Retighten handle lock lever securely after adjusting.
1
A
CAUTION: When mounting tires, unless
beads are seated, overinflation can cause
an explosion.
•
Maintain 20 PSl {1.4 kg/cm^) of tire pressure. If tire
pressures are not equal, tiller will puli to one side.
•
Keep tires free of gasoline or oil which can damage
rubber.
TO REMOVE WHEEL (See Fig. 23)
•
Place blocks under transmission to keep tiller from
tipping.
•
Remove hairpin clip and clevis pin from wheel.
•
Remove wheel and tire.
•
Repair tire and reassemble.
