ASSEMBLY

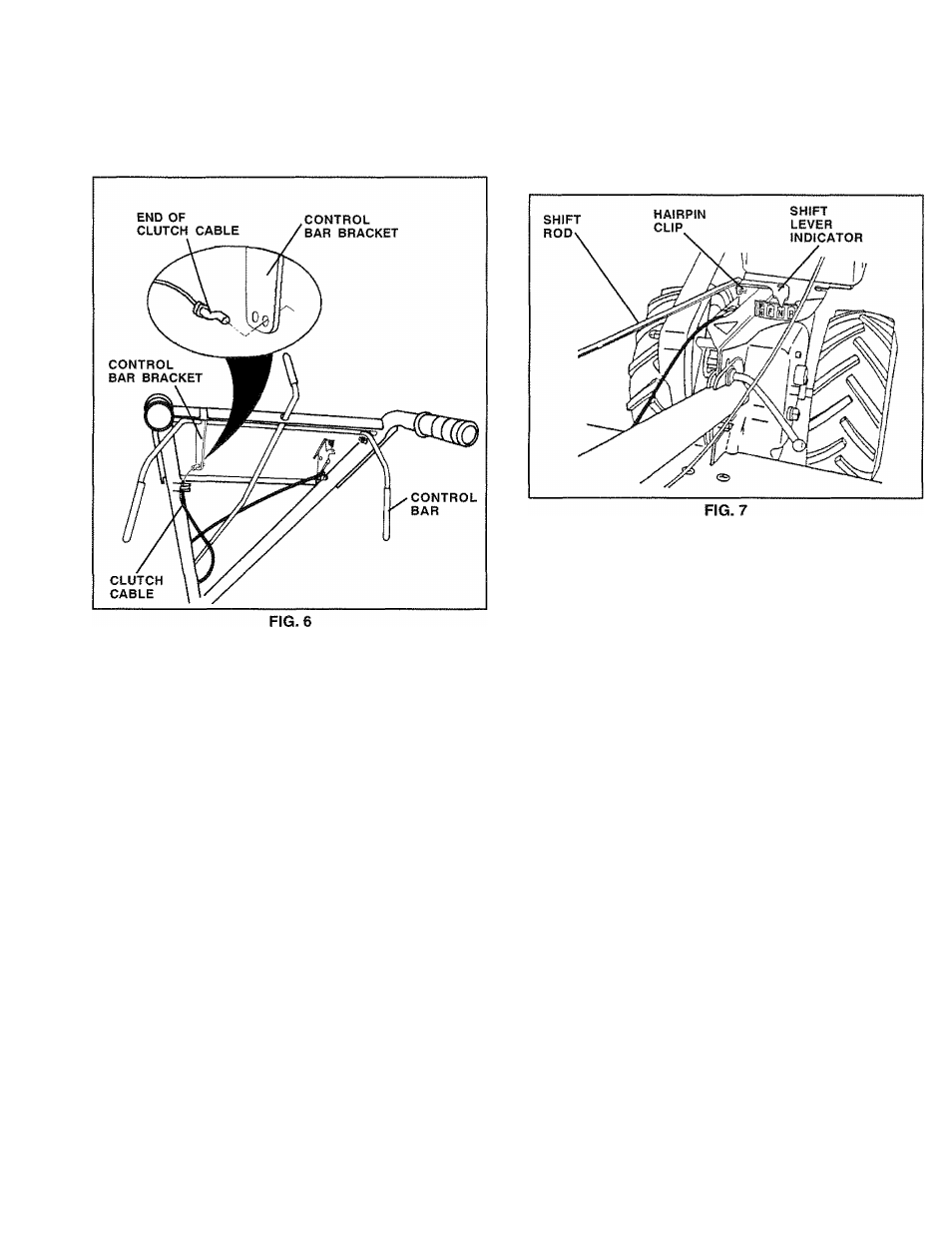

ATTACH CLUTCH CABLE (See Fig. 6)
• Hook end of dutch cable through hole in control bar
bracket.
CONNECT SHIFT ROD (See Fig. 7)
•
Insert end of shift rod farthest from bend into hole of shift
lever indicator.
“ Insert hairpin dip through hole of shift rod to secure.
REMOVE TILLER FROM CRATE
•
Make sure shift lever indicator is in “N” position (See Fig.
7)
•
Tilt tiilerforward by lifting handle. Separate cardboard
cover from leveling shield.
•
Rotate tiller handle to the right and pull tiller out of carton.
CHECK TIRE PRESSURE
The tires on your unit were overinflated at the factory for
shipping purposes. Correct and equal tire pressure is
important for best tilling performance.
•
Reduce tire pressure to 20 PSI (1.4 kg/cm^).
HANDLE HEIGHT
•
Handle height may be adjusted to better suit operator.
(See “TO ADJUST HANDLE HEIGHT" in the Service
and Adjustments section of this manual).
