REPAIR PARTS
TILLER - - MODEL NUMBER CHDR500E

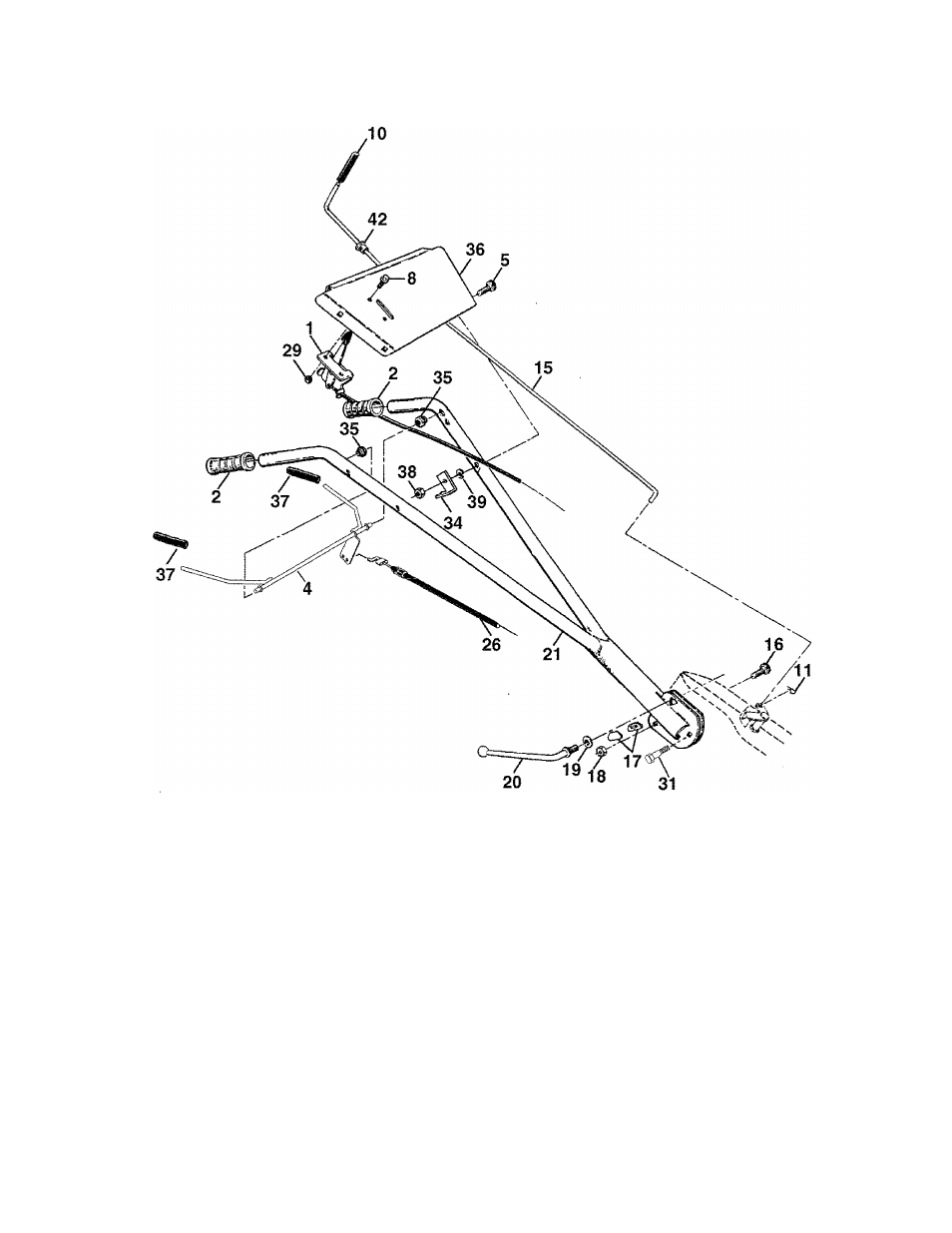

HANDLE ASSEMBLY
KEY
PART
NO.
NO.
1
127012X
2
150744
4
159227
5
72110514
8
71191008
10
8389J
11
4497H
15
108281X
16
72110608
17
109229X
18
73680600
19
19131611
20
109228X
21
150217
DESCRIPTION
Control, Throttle
Grip, Handle
Bar, Control
Bolt, Carriage 5/16-18x1 -3/4
Screw, Pan Hd. #10-24
Grip, Handle
Clip, Hairpin
Rod, Shift
Bolt, Carriage 3/8-16 x 1 Gr. 5
Lock, Handle
Nut Crownlock 3/8-16 UNC
Washer 13/32 x 1 x 11 Ga.
Lever, Lock, Handle
Handle
KEY PART
Ш. NO.
26
29
31
34
35
36
37
38
39
42
159232
73731000
150696
145821
146480
126949X428
102604X
73800500
10040500
121248X
DESCRIPTION
Cable, Clutch
Nut, Keps #10-24 UNC
Bolt, Pivot
Bracket, Clutch Cable
Grommet, Handle
Bracket, Handle
Grip, Bar Control
Locknut 5/16-18
Washer, Lock 5/16
Bushing, Snap
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
20
