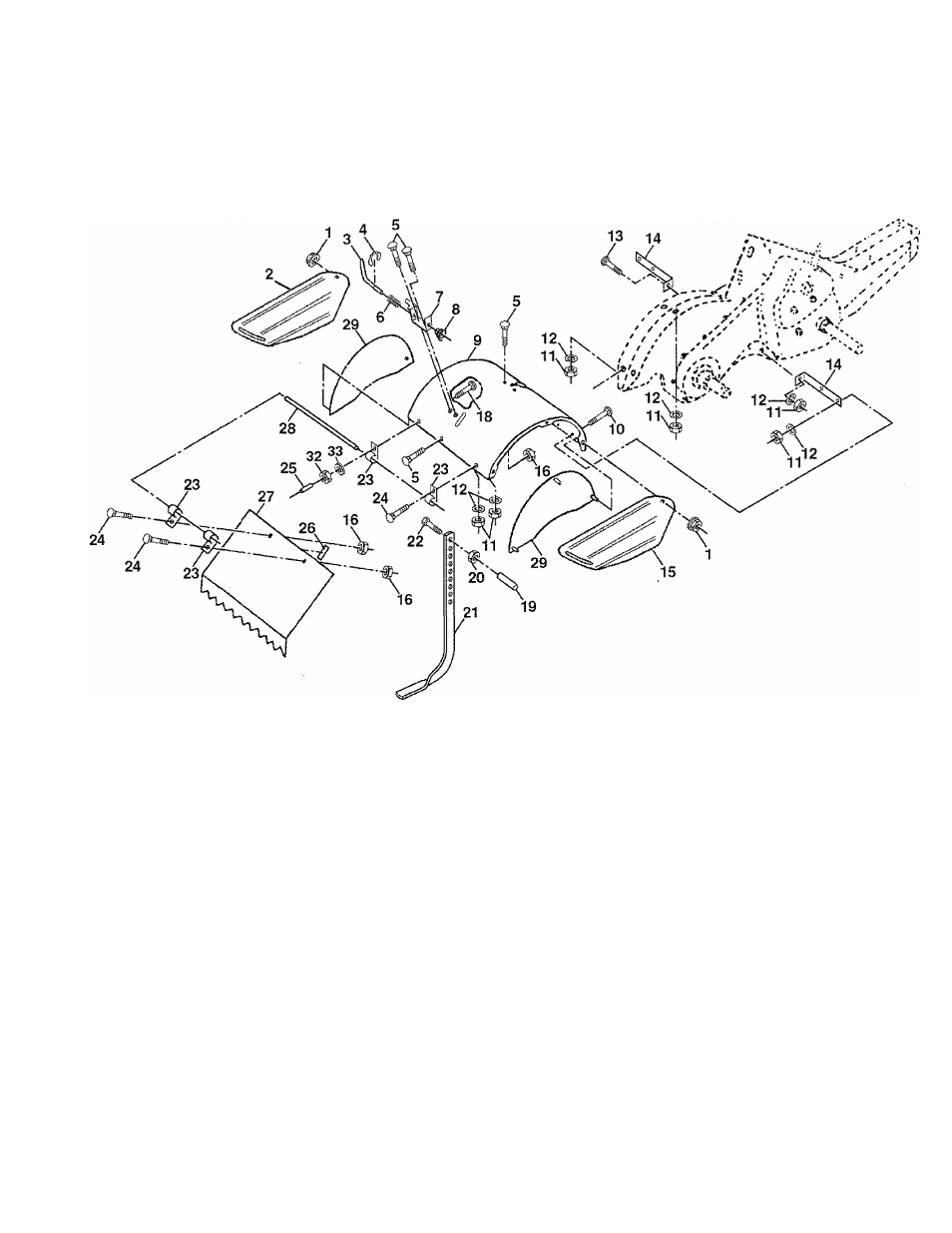

REPAIR PARTS
TINE SHIELD
TILLER - - MODEL NUMBER CHDR500E
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
73900500
Nut, Flange 5/16-18
19
102701X
Grip
2
161415X428
Shield, Side, Outer L. H.
20
73220600
Nut, Hex 3/8-16
3
8393J
Pin, Stake, Depth
21
102156X
Stake, Depth
4
12000036
Ring, Klip
22
74930632
Bolt, Hex 3/8-16x2
5
72140506
Bolt, Carriage 5/16-18 x 3/4 Gr 5
23
4440J
Hinge
6
8394J
Spring
24
72140404
Bolt, Carriage 1/4-20 x 1/2 Gr. 5
7
8392J
Bracket, Latch
25
6712 J
Cap, Vinyl
8
109230X
Spring, Depth Stake
26
109227X
Pad, Idler
9
102326X428
Shield, Tine
27
102695X428 Shield, Leveling
10
72140508
Bolt, Carriage 5/16-18x1
28
120588X
Pin, Hinge
11
73220500
Nut, Hex 5/16-18
29
104085X428 Shield, Side
12
10040500
Washer, Lock 5/16
32
73220400
Nut Fin Hex 1/4-20 UNC
13
72110510
Bolt, Carnage 5/16-18x1-1/4
33
10040400
Washer Lock Hvy Helical 1/4
14
124343X
Bracket, Shield Tine
NOTE: All comoonent dimensions aiven in U.S. inches.
15
16
18
161414X428
73900400
72040410
Shield, Side, Outer R.H.
Nut, Hex Flange 1/4-20 UNC
Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5
1 inch = 25.4 mm
