Maytag MED5591TQ1 - Manual (Page 8)

Power Supply Cord Direct Wire
▲WARNING ▲WARNING
M M
Fire Hazard Fire Hazard
Use a new UL listed 30 amp power supply cord. Use 10 gauge solid copper wire.
Use a UL listed strain relief. Use a UL listed strain relief.
Disconnect power before making electrical connections. Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal (silver).
Connect neutral wire (white or center wire) to center
terminal (silver).
Ground wire (green or bare wire) must be connected to
green ground connector. Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold). Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections. Securely tighten all electrical connections.
Failure to do so can result In death, fire, or
electrical shock.
Failure to do so can result in death, fire, or
electrical shock.

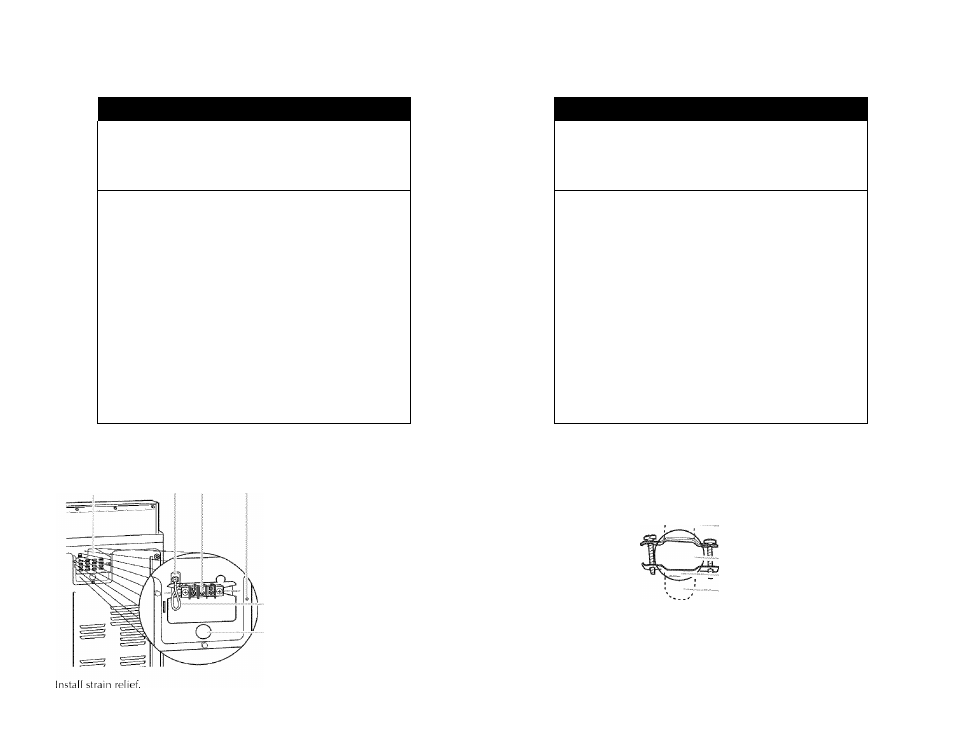

1. Disconnect power,
2. Remove the hold-down screw and terminal block cover.
B C D
E
F
/1, Termiiitil block cover
B. External ground conductor
screw
C. Center, silverwolorerj terminal
block screw
D. Hold-down screw location
E. Neutral ground wire
f. Hole below terminal block
opening
Style 1: Power supply cord strain relief
■ Remove the screws from a % " (1,9 cm) Ul. listed strain relief (UL marking on strain
relief). Put the tabs of the two clamp sections into the hole below the terminal block
opening so that one tab is pointing up and the other is pointing down, and hold in
place. Tighten strain relief screws just enough to hold the two clamp sections together.
' ' ....... /A
B
c
D
A. Strain relief tab pointing up
B. Hole below terminal block opening
C. Clamp section
D. Strain relief tab pointing down
