When connecting to the terminal block, place the hooked end of the wire under the screw of
the terminal block (hook facing right), squeeze hooked end together and tighten screw, as
shown.
/4 B
3. Connect ground wire (green or bare) of power supply cable to external ground conductor
screw. Tighten screw.
1.
2.
Remove center silver-colored terminal block screw.
Remove neutral ground wire from external ground conductor screw. Connect neutral
ground wire and place the hooked end (hook facing right) of the neutral wire (white or
center wire) of direct wire cable under the center screw of the terminal block. Squeeze
hooked ends together. Tighten screw.
/4 B
C

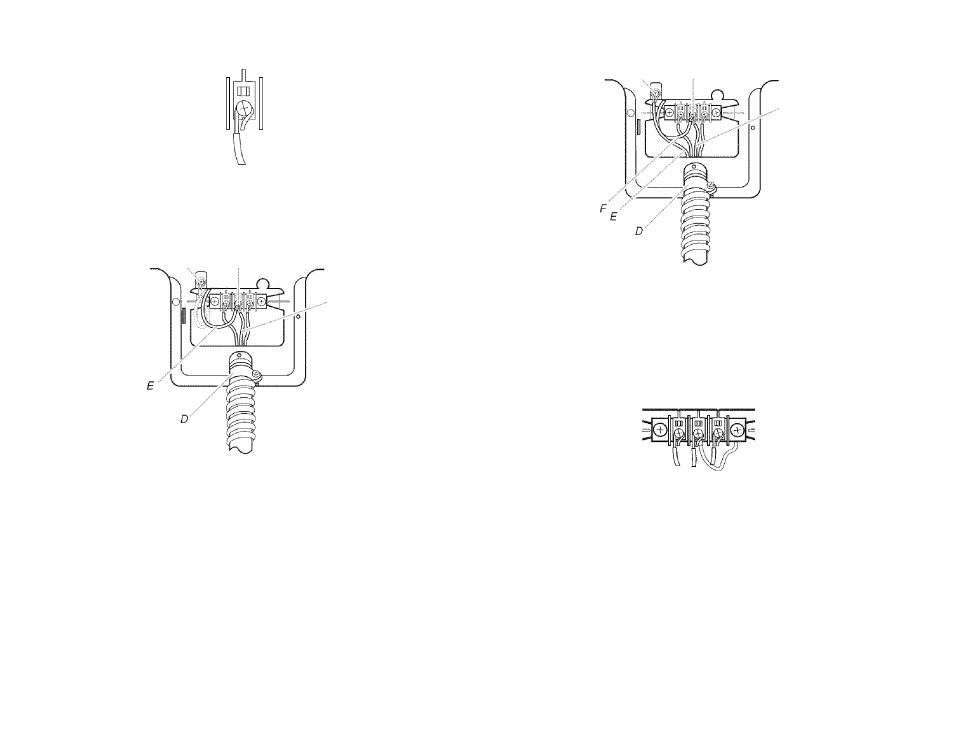

A. External gi'ound conductor screw - Dotted line shows
position of NEUTRAL ground wire before being moved to
center silver-colored terminal block screw.
B. Center silver-colored terminal block screw
C. Neutral wire (white or center wire)
D. %" (T9 cm) UL listed strain relief
E. Neutral ground wire
/t. External ground conductor screw
B. Center silver-colored terminal block screw
C. Neutral wire (white or center wire)
D. Vs" ( T9 cm) UL listed strain relief
E. Ground wire (green or bare) of power supply cable
F. Neutral ground wire
4. Place the hooked ends of the other power supply cable wires under the outer terminal
block screws (hooks facing right). Squeeze hooked ends together. Tighten screws.
I t
5. Tighten strain relief screws.
6. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold­
down screw.
7. You have completed your electrical connections. Now go to "Venting Requirements."
