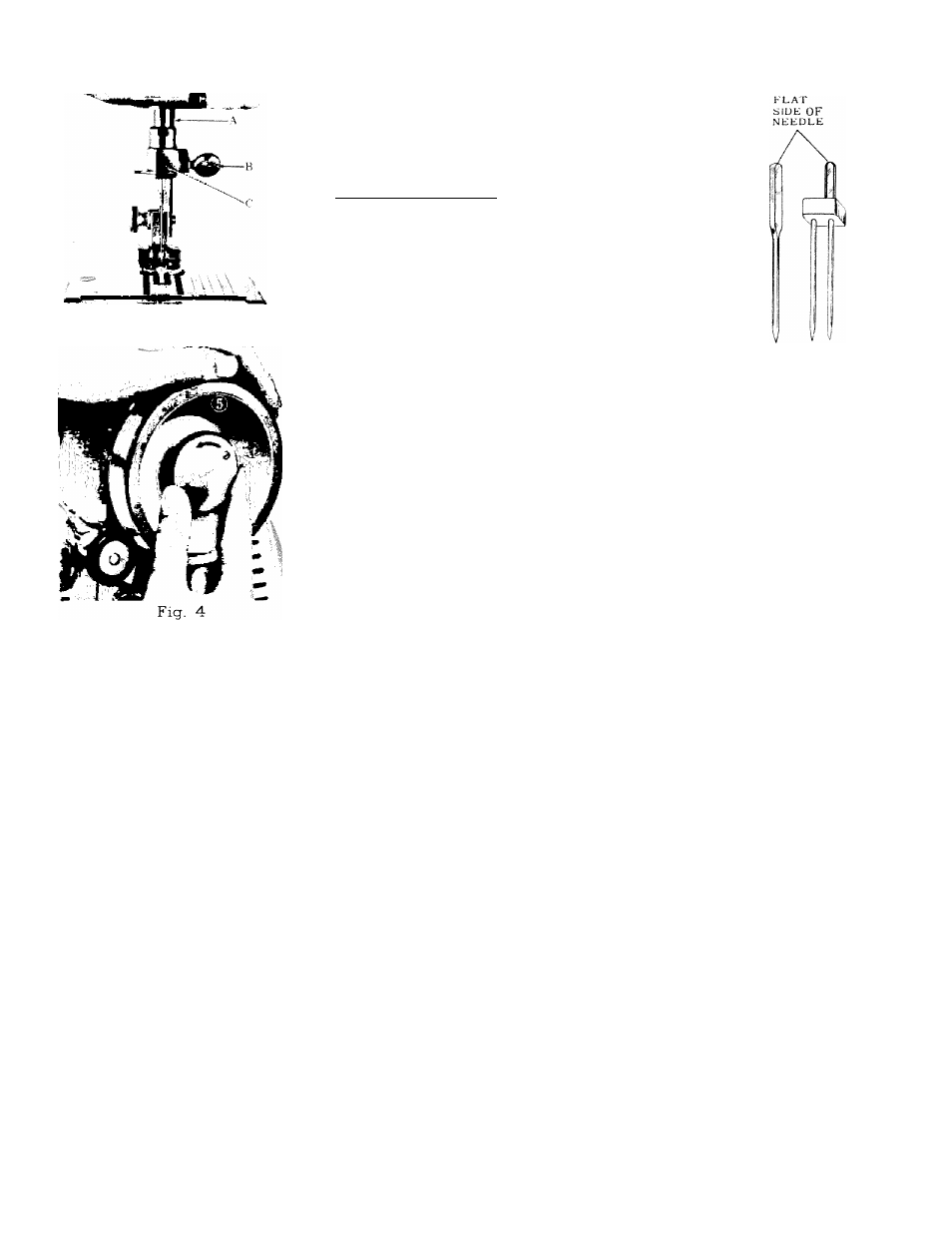

Fig. 3
SETTING THE NEEDLE
See Fig. 3. Raise the needle bar A to its high­
est point, turning wheel toward you by hand.
Then loosen the needle clamp screw B and the
needle can be inserted into clamp C. Place needle
I flat side to back i in the needle clamp and push
it upward as tar as it will go into the needle clamp
hole,
tightening the needle clamp screw securely
with a screw driver.
A t H : r c. llte ^ • -
■ ■ ■ i j l flic* ••■ •«•rMitil
b y i t A n f i t o h e s i i r e h
«.cirrt'Ct pcisitioiK,
iieoiile IS itt tliif;
WINDING THE BOBBIN
Fig. 5
Disengage the hand wheel ( 5, Fig. 4 i from the
stitching mechanism by turning the clutch 6 toward you or coun­
ter clockwise.
Place a spool of thread on one of the spool pins lead thread
through the upper thread guides on the arm, and down through
the tension disc i 10, Fig. 6 > at the base of t.he machine. Run
end of thread through a hole in the bobbin edge and place bobbin
B on spindle of bobbin winder 8 fitting the notch on bobbin
over small pm on spindle. Push bobbin winder pulley against
hand wheel. Hold thread end loosely and start machine slowly.
Bobbin will stop winding when it is filled. Turn clutch away
from you until sewing mechanism is again engaged so that needle
moves when you turn the hand wheel.
Break off loose thread end used to start the winding.
