5. Preparation for threading

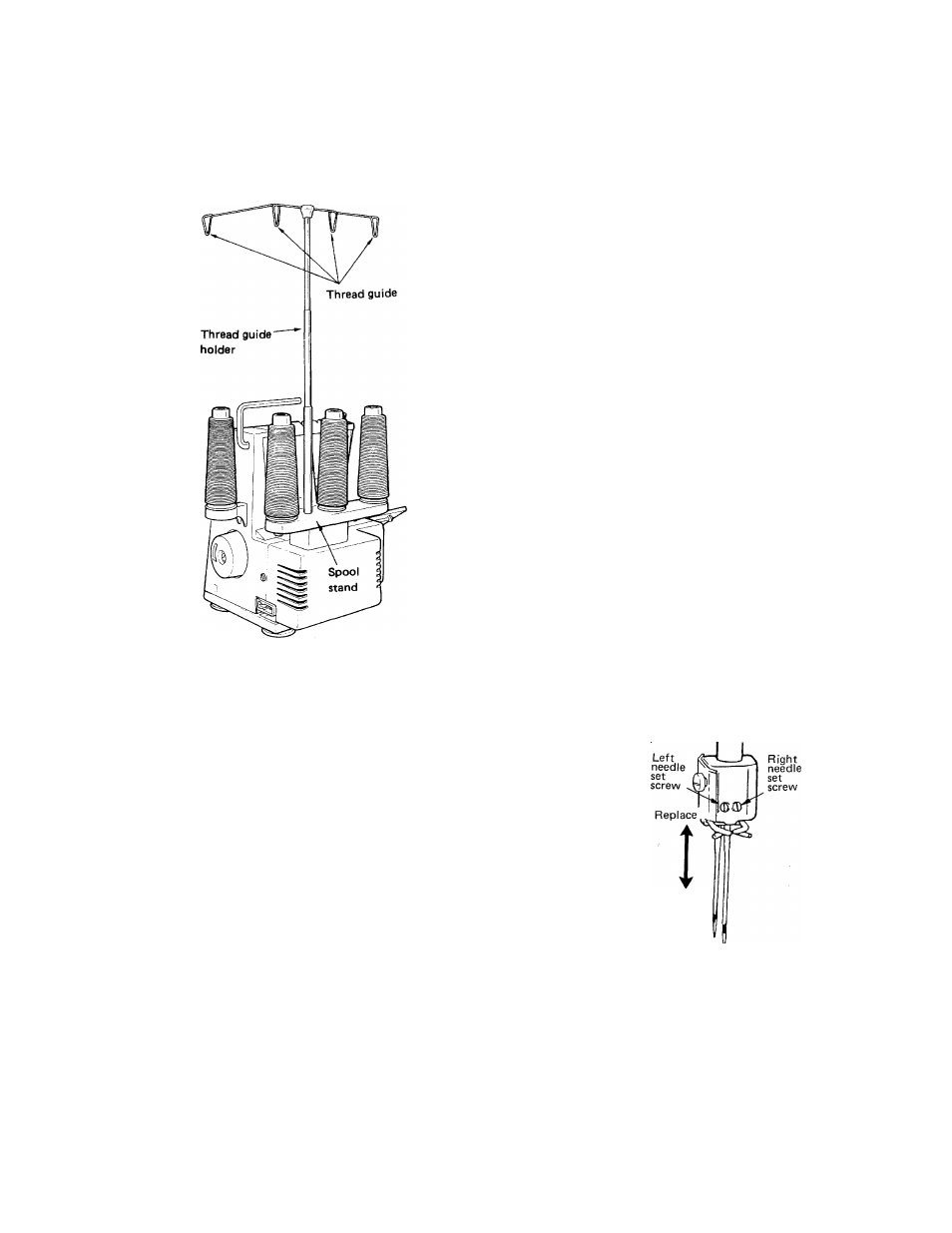

• Setting up the thread guide holder
Extend the thread guide holder as far as possible
and set the thread guides so that they are located
right above the spool pins.
Place the thread on the spool stand as sho^vn
above.
• How to insert the needles
Use Singer needles Cat. No. 2054 available in sizes #14 and (#10)
To remove the needles:
• Be sure the power line plug is disconnected from the wall receptacle.
• Turn the hand wheel toward you until the needle is at its highest
position. Loosen the needle set screw with a screwdriver and remove
needles.
To replace the needle:
• Insert the needles into the needle bar hole as far as they will go with
flat surface to the rear and securely tighten the needle set screw.
Remove
Flat surface to the rear
Note: When both the left and right needles are inserted, the left needle will be slightly higher than
the right.
