PLACING BOBBIN CASE IN SHUTTLE

Open

hinged

cover

plate

left

the

needle.

(See 8, Fig. 1) Hold the bobbin case latch, (D),

Fig. 9, between the thumb and forefinger of the left

hand, with at least three inches of thread running
from the top of the bobbin case to the right. Insert
and center the bobbin case on the stud of the shuttle
body,

(C).

sure

the

bobbin

case

finger,

(E),

is opposite the shuttle race notch, (A). Press the

bobbin case (B) into the shuttle as far as possible
until latch catches on the center post of the shuttle.

THEN release the bobbin case latch, (D). Press

bobbin case again after latch has been released to
make sure the bobbin case is hooked securely in
place. Close the cover plate.

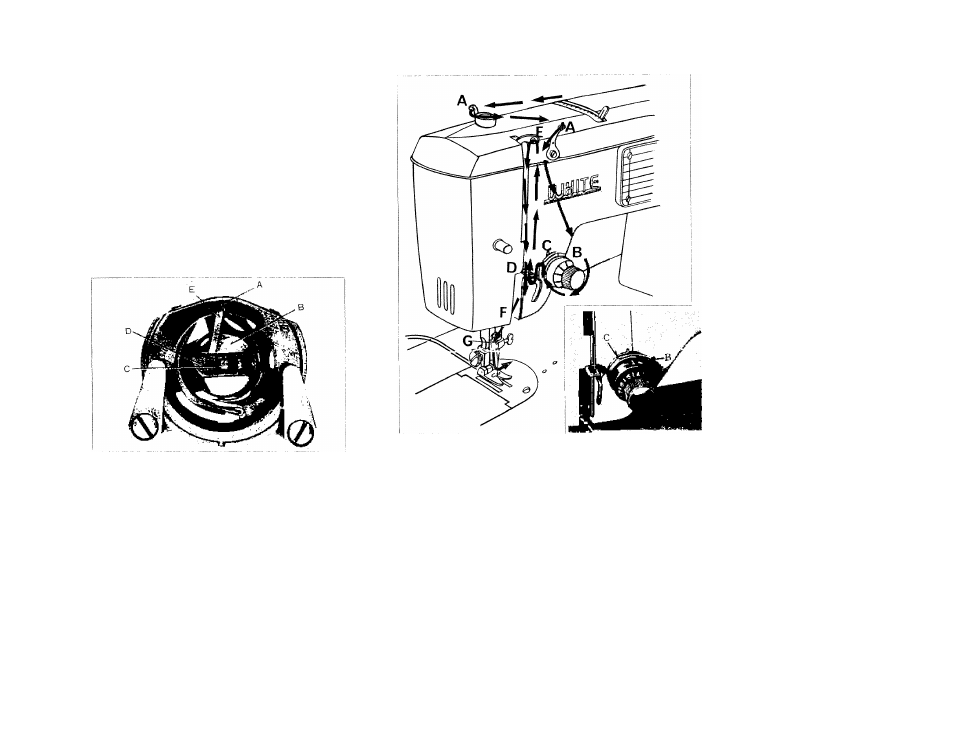

Fig. 9

Fig. 10
