SINGER W571 - Manual (Page 11)

10 ‘
STRAIGHT STITCHING
For straight sewing on fine fabric or very soft material, you
may want to use the straight stitch presser foot and the straight
stitch needle plate which are included in your accessory box.
Both have narrow needle slots.
Changing the Presser Foot and Needle Plate :
(1) Presser Foot
(A) Loosen thumb screw (10, Fig. 1) and remove zigzag
presser foot.
(B) Replace with straight stitch presser foot (Fig. 12A).
(2) Needle Plate
(A) Open cover plate.
(B) Remove screws holding needle plate
(7, Fig. 1), to bed plate.
(C) Remove zigzag needle plate
(D) Replace with straight switch needle
plate 12B.
Be sure to set stitch width lever 22 at 0,
or the needle will break in striking the foot or
plate.
Set selector lever 19 and buttonhole lever 24
at "M" position, and needle position lever 20
at "L". (Fig. 12C)

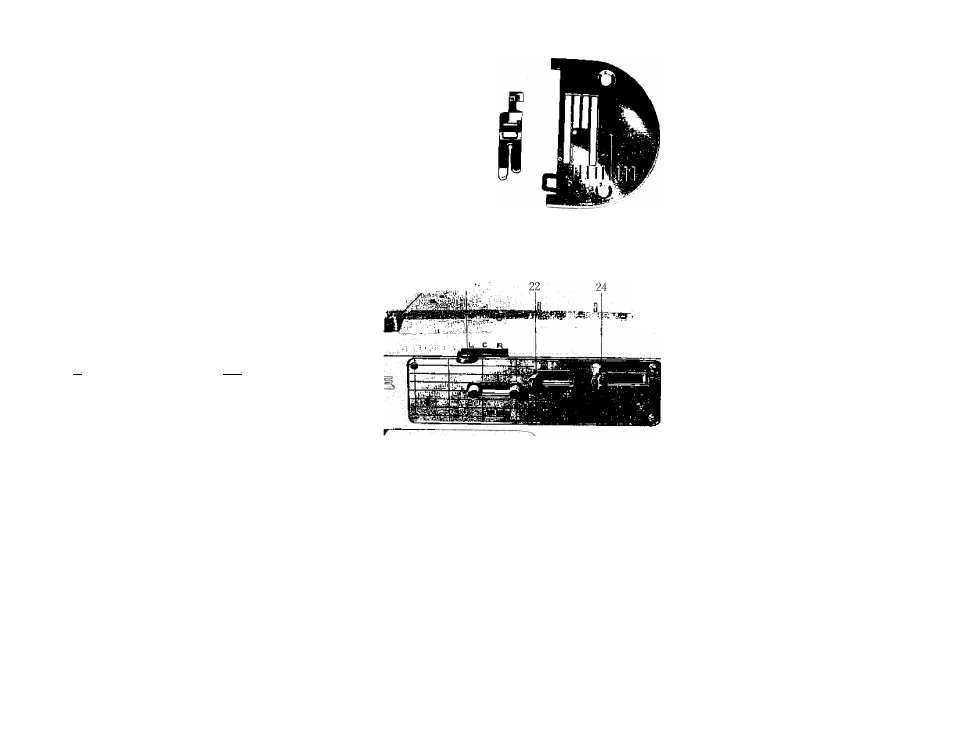

Fig. 12-A Fig. 12-B
Fig. 12-C
►
