103

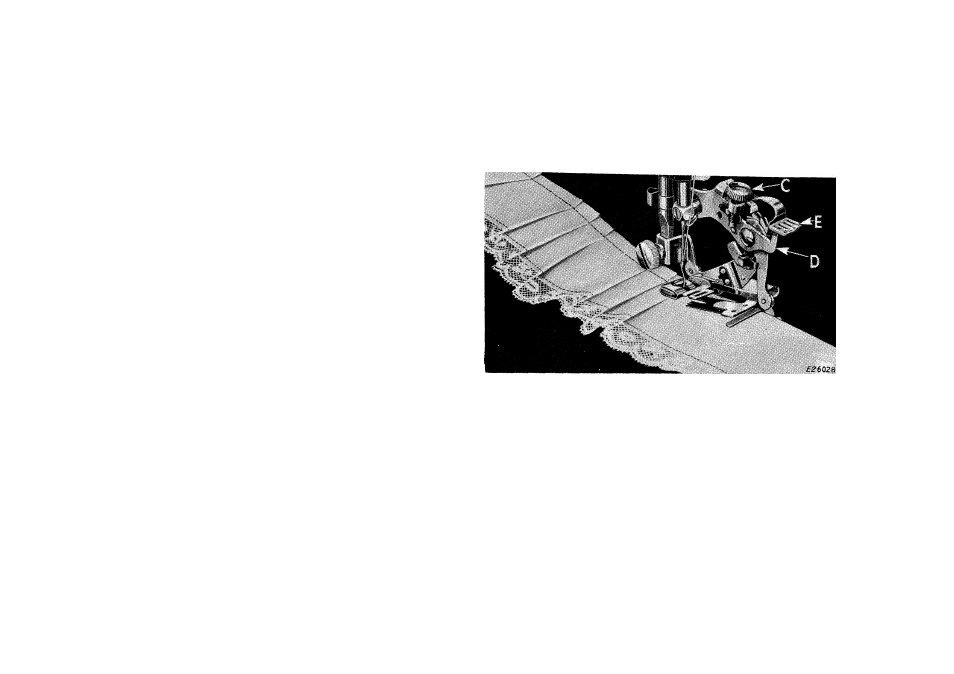

To Adjust Rüffler for Pleating, raise ad
justing lever E and move it until projection D
can be entered in slot marked "6”. The
ruffler will then pleat once every 6 stitches. To
pleat once every 12 stitches, have projection D
enter slot "12” in adjusting lever E. Insert
material to be pleated between two blue blades
and under the separator guide.
To increase width of pleat, move adjusting
finger F back toward needle and turn adjusting
screw C downward. To make a smaller pleat,
turn adjusting screw C upward. The distance
between pleats is regulated by length of stitch.
To make the space between the groups of
pleats, raise adjusting lever E and move it
until projection D can be entered in small slot
indicated by star on adjusting lever E. The
ruffler will then stop pleating and plain stitch
ing will be made.
Fig. 202. Group Pleating with Ruffler
When desired space is made, set projection D
in either of slots "6” or "12”. Insert material
to be pleated between two blue blades and
under separator guide.
