I
is
I
i ^ j '
‘4
Vi
Replace shuttle race cover, ( C ) , fitting pin at lower edge into
notch, and lock into position with shuttle race cover clamps,
B), making certain the clamps have been snapped securely in
to position.
Put bobbin into the bobbin case.
Put the bobbin case into the shuttle race, fitting tongue into
notch E of race cover.
If it
machine,
HOW TO CHANGE THE MOTOR BELT
to replace the motor belt on your
should
become
necessary
proceed as follows :
. . . . . . . . 1 .
2
.
3 .
5 .
7 .
8
.

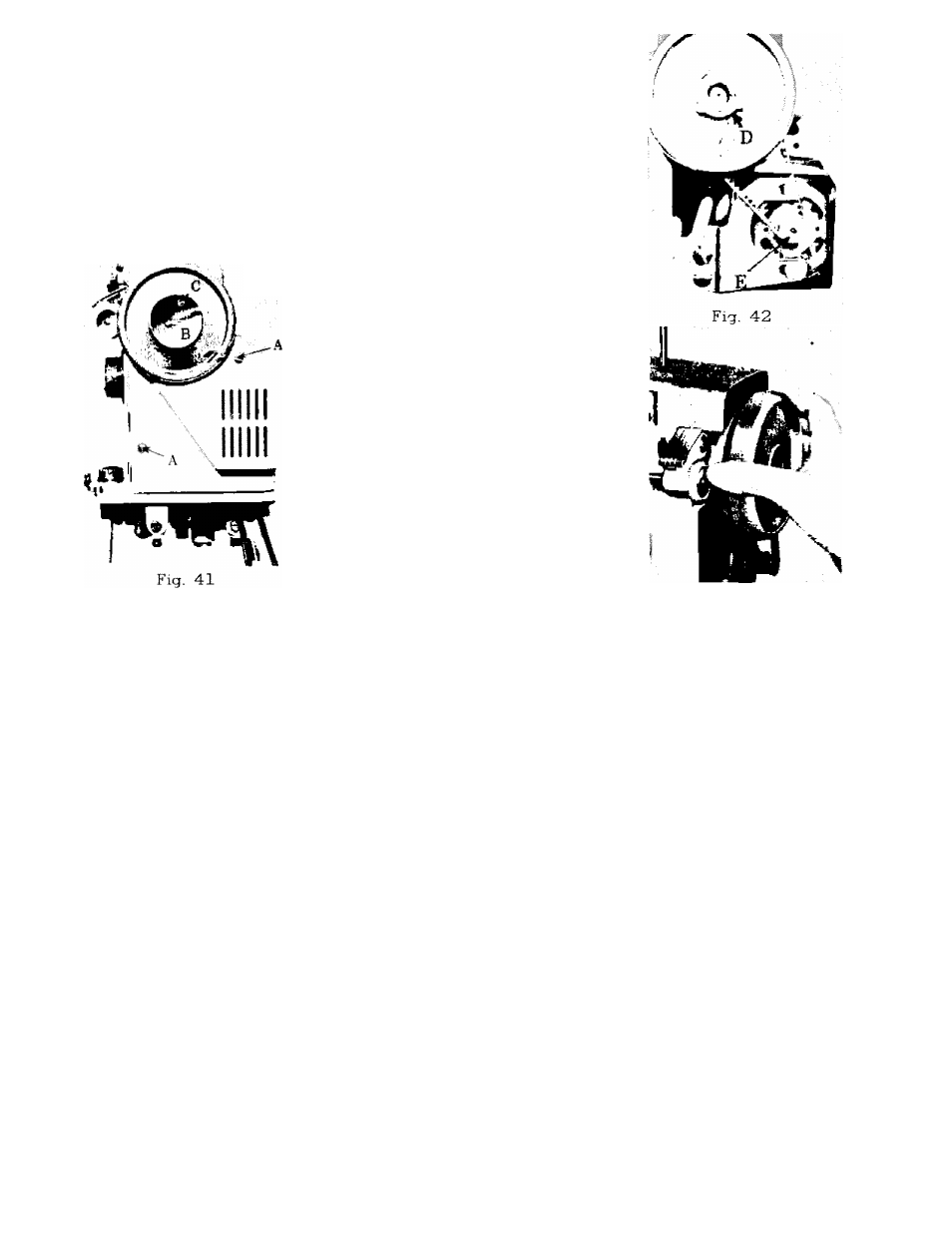

Remove screws A (Fig. 4 1 ) .
Remove rear cover.
Remove clutch nut B in center of
hand wheel (Fig. 41) by taking
out
small
screw
C.
Turn
nut
counter-clockwise
by
holding
the
take-up lever until it can be lifted
o f f .
Before moving hand wheel, note
position of lips on washer D i Fig.
42)
as
it
will
fall
off
when
changing the belt.
Slide old belt over motor pulley
E (Fig. 4 2 ) .
Pull hand wheel away from ma
chine just far enough to allow
the belt to slip over wheel.
Put new belt in grooved section
of
hand
wheel
and
then
over
motor pulley.
Replace
washer
D
in
original
position.
Fig. 43
