PLACING BOBBIN CASE IN SHUTTLE

Open hinged cover plate left of the needle.

See Fig. 1 ' Hold the bobbin case latch, D Fig.

9, between the thumb and forefinger of the left

hand, with at least three inches of thread running
from the top of the bobbin case to the right. Insert

and center the bobbin case on the stud of the shuttle

body, C'. Be sure
the

bobbin

case

finger, E ), will en
ter the shuttle race

notch, . A P r e s s
the bobbin case i B)
into the shuttle as
far as possilbe until

latch catches on the
center post of the
shuttle.

THEN release

D). Press bobbin case

again after latch has been released to make sure

the bobbin case is locked securely in place. Close

the cover plate.

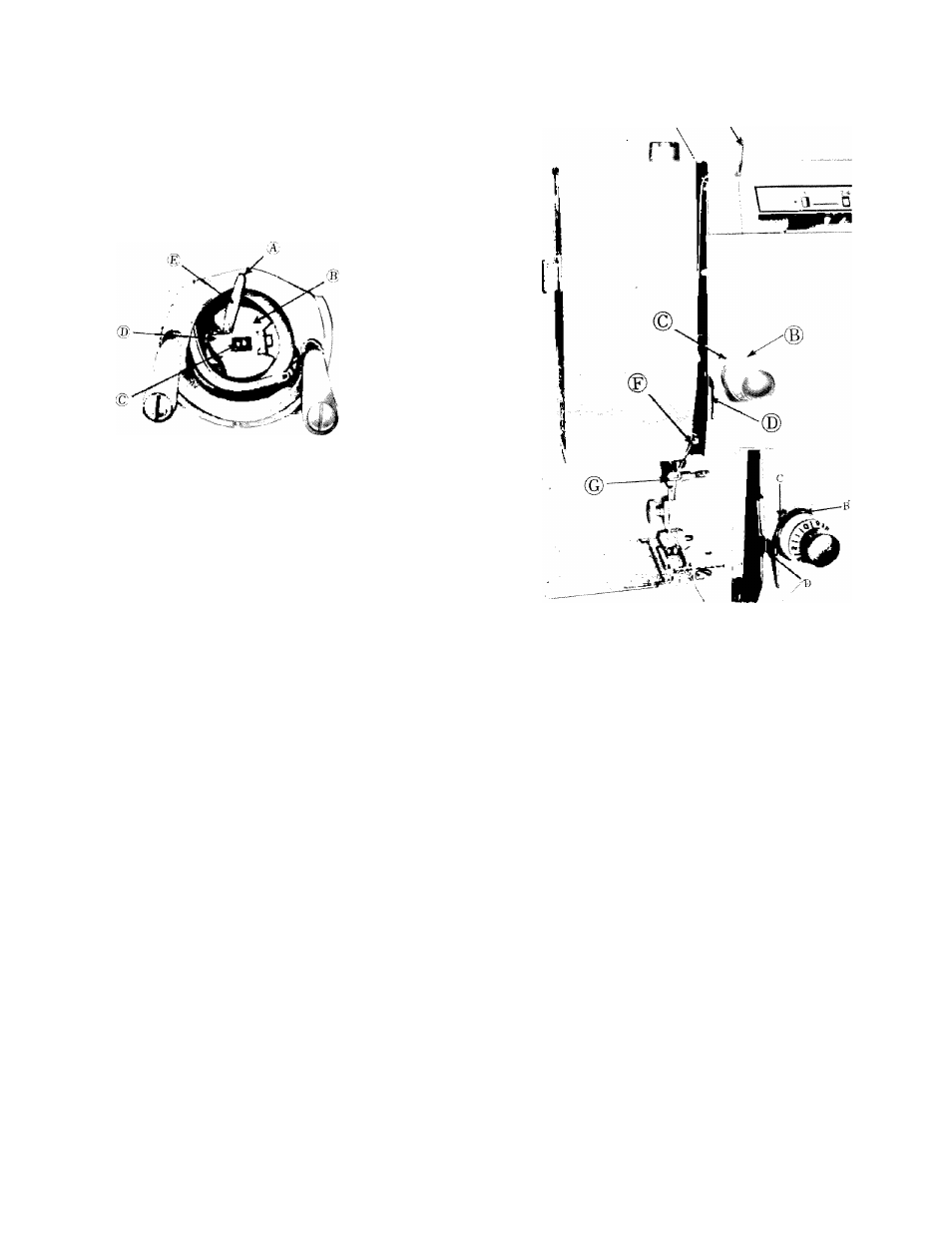

Fig. 10

Fig. 9

the bobbin case latch.
