PARTI KNOWING YOUR SEWING MACHINE
KNOW THE PARTS

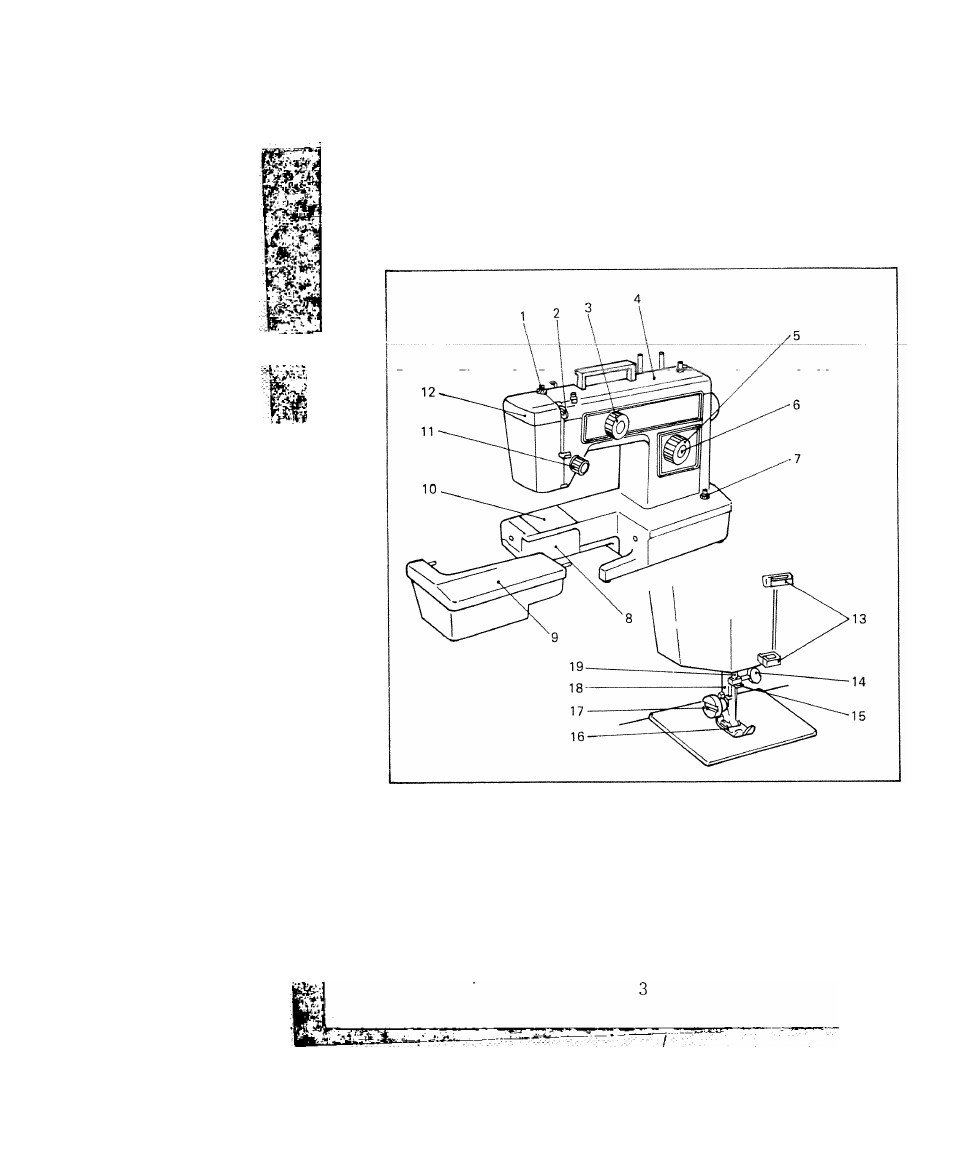

FRONT VIEW
i
1. Pressure regulator (Patch-GMatic)
2. Thread take-up lever
3. Pattern selector dial
4. Top cover
5. Stitch length dial
6. Reversing button
7. Switch
8. Shuttle cover
9. Extension table
10. Needle plate
11. Thread tension dial
12. Faceplate
13. Face piate thread guides
14. Needle damp and screw
15. Needle bar thread guide
16. Presser foot
17. Presser foot bracket thumb screw
18. Presser bar
19. Needle bar
