CLEANING FEED DOG AND SHUTTLE
Lever
Lever
Shuttle Assembly
Shuttle Race Cover
Pointed
hook Shuttle
A-. --V-
l-.-i
Shuttle driver

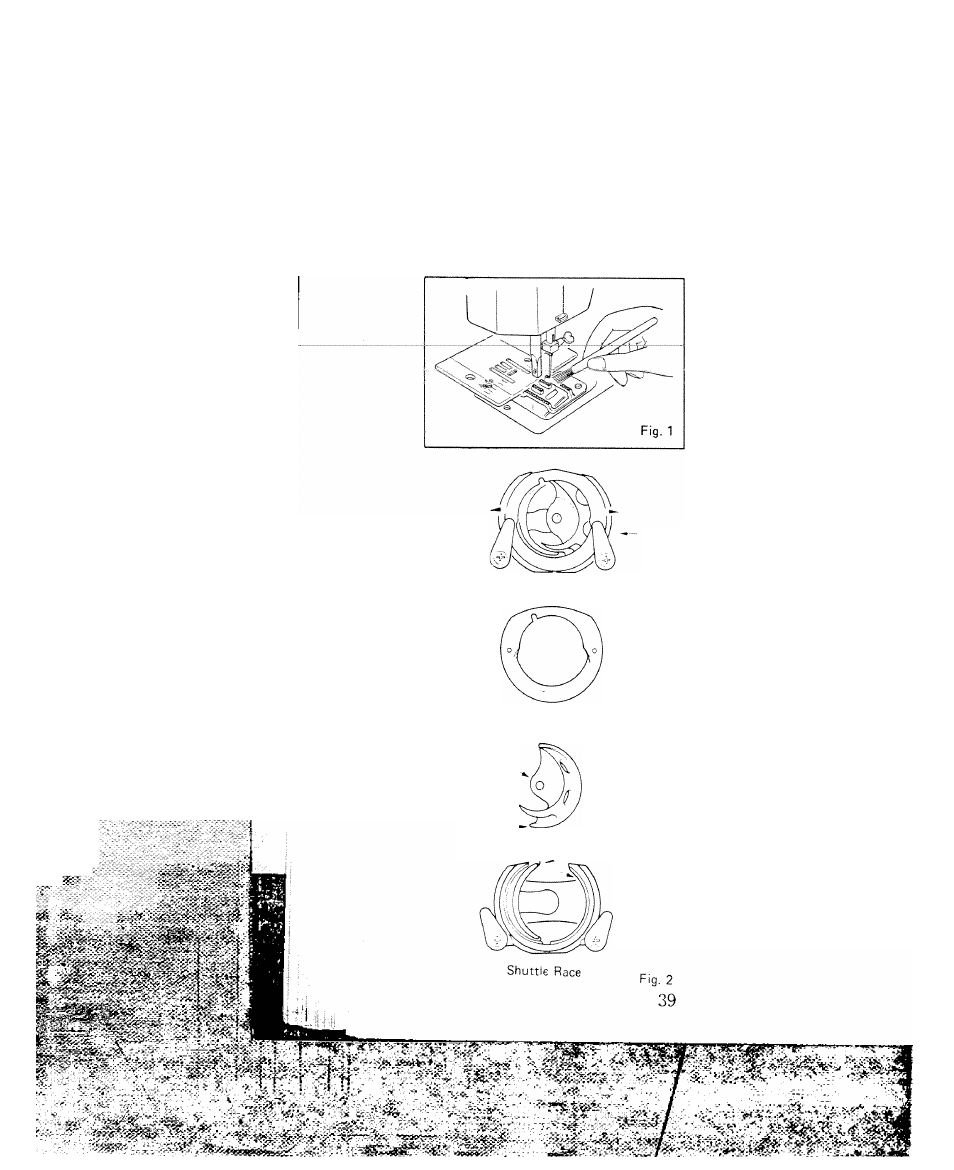

Fig. 1 Cleaning the feed dog wi
brush.
To insure the best possible open
of your machine, it is necessary to
the essential parts etean ' at all ti
Using a small brush, remove the lint
accumulates in the shuttle area
around the feed dog.
Fig. 2 Parts of the Shuttle Assembly
To Clean the Shuttle Area:
1. This area must be kept free of i
lint and occasional tangled thi
Raise the needle to its highest
point and remove the bobbin i
2. Push levers of shuttle race aside
lift shuttle race cover and shuttle
3. Clean the shuttle race with s
brush.
4. Put a drop of oil on the center p
the shuttle and shuttle race,
arrows).
To Replace Shuttle Assembly;
1. Position shuttle race as illustrate
that race is forming halt moor
the left side of the machine.
2. Hold shuttle by center pin and :
tion shuttle so as to form a half r
on the right side. Pointed hook
be on the bottom.
3. Place shuttle race cover into t
over shuttle assembly.
4. Snap the levers into position.
* See additional shuttle cleaner infe
tion on page 43.
