Connecting Your Phone
Your system administrator will likely connect your new Cisco Unified IP Phone to the corporate IP

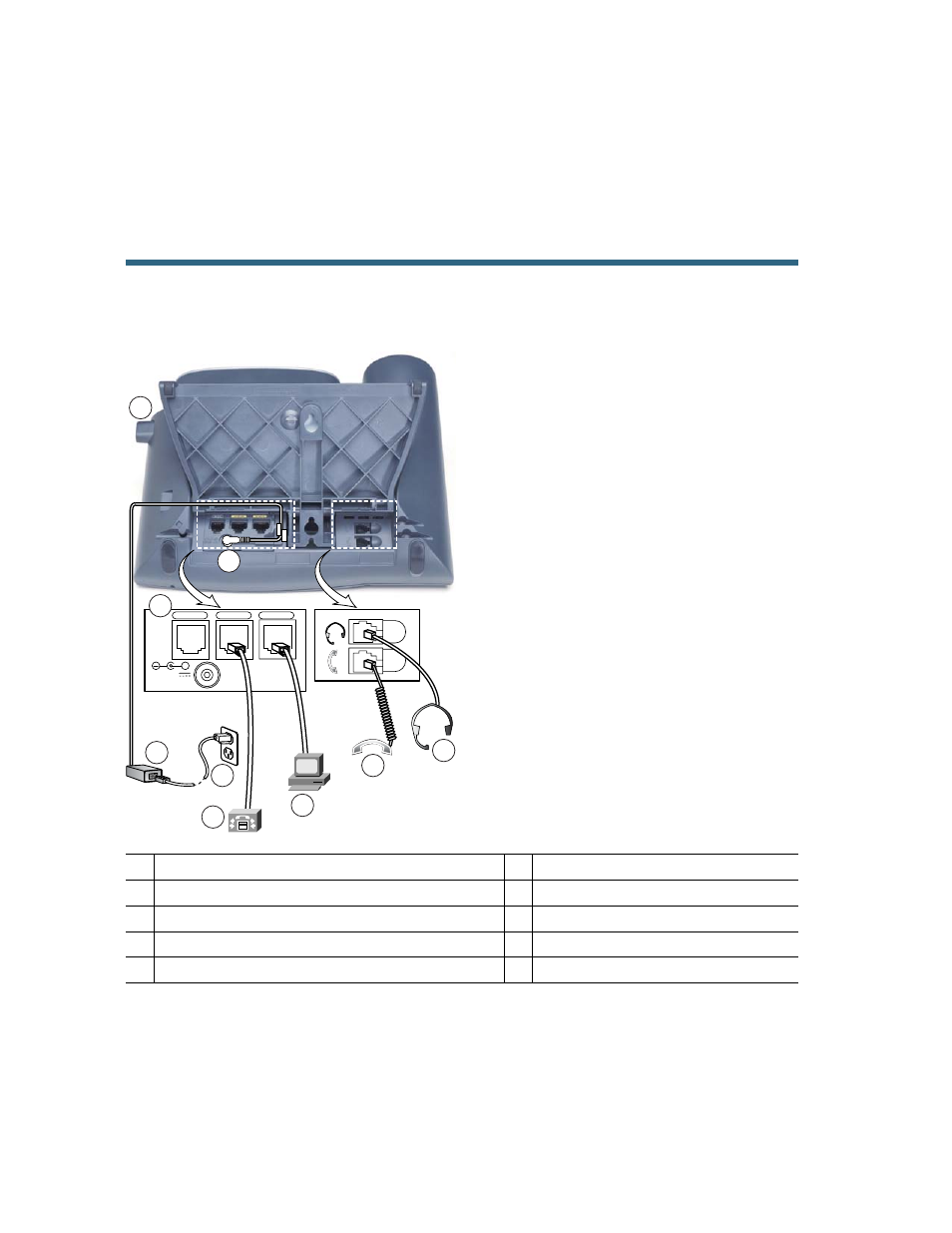

telephony network. If that is not the case, refer to the graphic and table below to connect your phone.
1 DC adaptor port (DC48V) 6 Handset port
2 AC-to-DC power supply 7 Headset port
3 AC power cord 8 Footstand button
4 Network port (10/100/1000 SW) 9 Auxiliary port (AUX)
5 Access port (10/100/1000 PC)
