HOW TO THREAD THE MACHINE

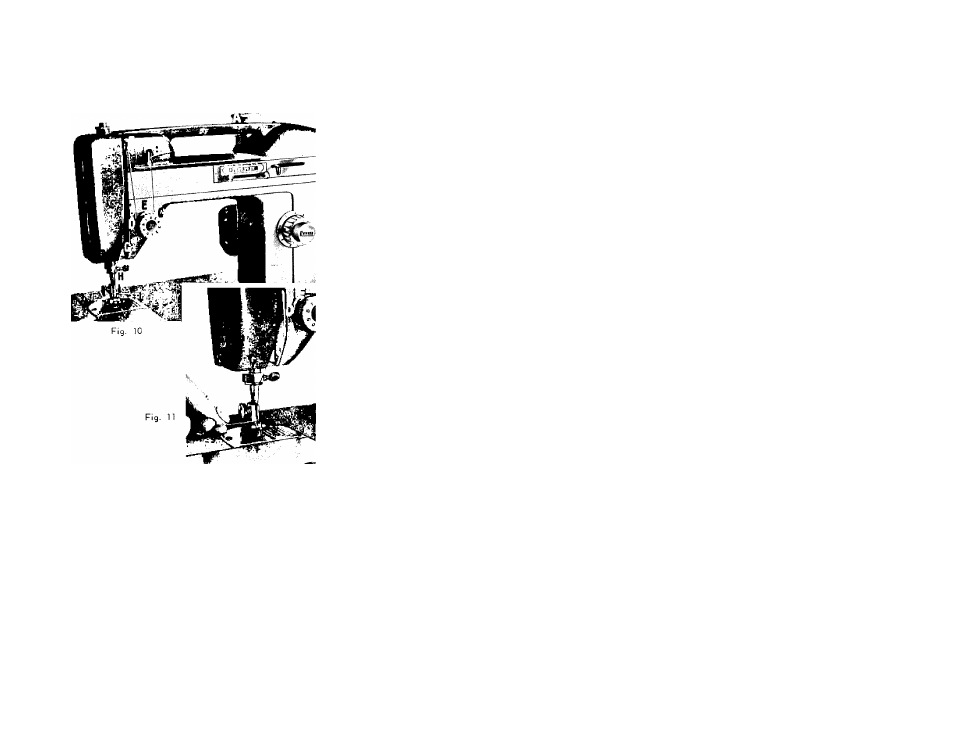

(Single Needle, Fig. 10)
Turn hand wheel toward you to raise take-up lever
to highest position.
1. Place a spool oi thread on spool pin A,
2 . lead thread through eyelet in arm thread
guide B,
3. pass the thread down and around tension discs
C from right to left
4. into check spring D
5. then tug on thread to pull it around and into
hook E Fig. 11 j
lead up to take-up lever F, threading from right
to left,
down into thread guide G
into needle bar guide H
and through needle I from front to back.
r ^
■
Q' -
O' ^
c,. ■
c
C,'
6 .
7.
8
.
9.
