SETTING THE NEEDLE
See Fig. 3. Raise the needle bar A to its highest point, turn
ing
wheel
toward
you
by
hand.
Then
loosen
the
needle
clamp
screw
B
and
the
needle
clamp
C
will
open.
Place
needle
(flat
side
to
back;
in
the
needle
clamp
and
push
it
upward
as
far
as
it
will
go
into
the
needle
clamp
hole,
fastening
the
needle
clamp securely with a screw driver.
WINDING THE BOBBIN
Disengage
the
hand
wheel
(Fig.
4)
from
the
stitching
mechanism
by
turning
the
clutch
toward
you
or
counterclock
wise.
Place
a
spool
of
thread
on
one
of
the
spool
pins,
lead
thread
under
the
handle
and
through
the
upper
thread
guide
on the arm, and down through the tension disc (11, Fig. 5) at
the base of the machine. Run end of thread through a hole in
the
bobbin
edge
and
place
bobbin
on
spindle
B
of
winder
4, fitting the notch on bobbin over small pin on spindle. Push
_ 7
_

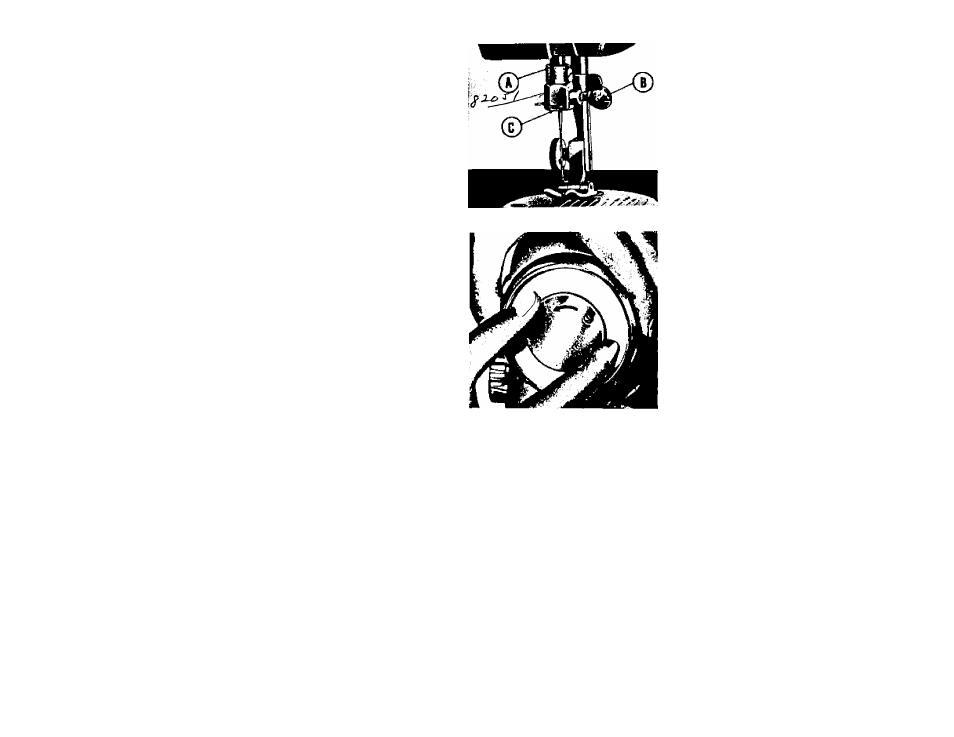

Fig. 3
Fig. 4
