PLACING BOBBIN CASE IN SHUTTLE
Open
hinged
cover
plate
in
front
of
the
needle.
(See
15,
Fig.
1).
Hold
the
bobbin
case
latch,
(D),
Fig.
9,
between the thumb and forefinger of the left hand, with
at least three inches of thread running from the top of
the
bobbin
case
to
the
right.
Insert
and
center
the
bobbin case on the
stud
of the
shuttle body, (C . Be
sure
the
bobbin
case
finger,
(E),
is
opposite
shuttle
race
notch,
(A).
Press
the
bobbin
case
into
the
shuttle
as
far
as
possible
until
latch
catches
on
the
center
post
of
shuttle.
THEN
release
the
bobbin
case
latch,
(D).
Press
bobbin
case
again
after
latch
has
been
released
to
make
sure
the
bobbin
case
is
locked
securely in place. Close the cover plate.

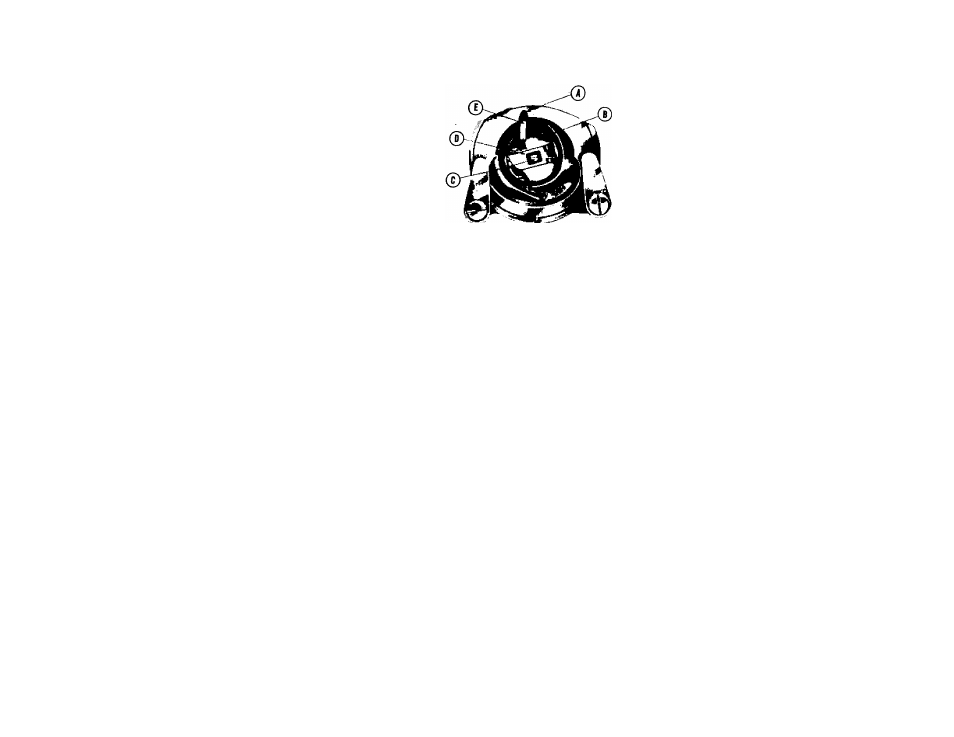

Fig. 9
