SINGER W2134 User Manual
Page 27
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

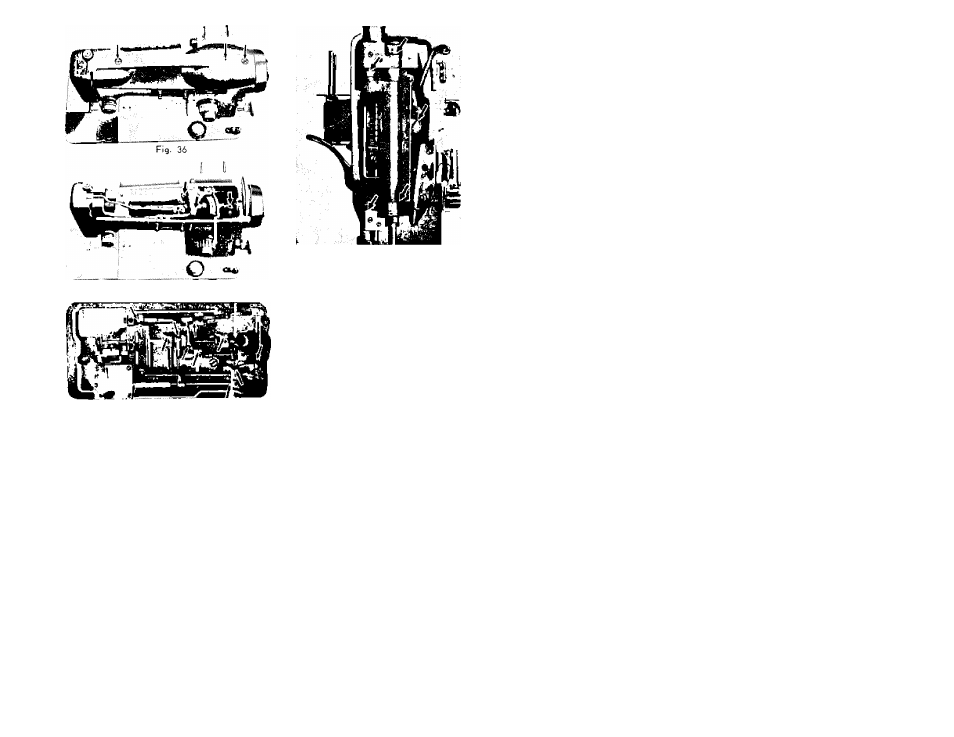

Fig. 37
Fig. 39
Occasionally
remove
the
top
cover
by
removing
screws
and
oil
moving
parts
not
ac
cessible
through
oil
holes,
Fig. 37.
To
oil
parts
under
the
bed
of
the
machine,
tip
the
unit
back
on
its
hinges
and
apply
a
drop
of
oil
at
each
point
indicated in Fig. 38.
Fig. 38
To
oil
moving
parts
inside
the
face
plate,
which
only
rarely
require
oiling,
remove
plate
by
taking
out
the
screws. Oil at spots indicated in Fig. 39.
Use
gear
lubricant
on
gears
indicated
by
white
arrows
in
Figs.
37
and
38.
Lubricate
only
when
machine
seems
to sew more slowly than usual.
