bobbin windeT pulley against hand wheel. Hold
thread end loosely and start machine slowly. Bob­
bin will be released automatically when it is filled.
Break oH loose thread end used to start the winding.
Turn clutch away from you until sewing mech­
anism is again engaged so that needle moves when
you turn the hand wheel.
If the bobbin winds unevenly, adjust bobbin
winding tension disc to the right or left by loosen­
ing the screw. When disc is in proper position,
tighten screw.
THREADING THE BOBBIN CASE

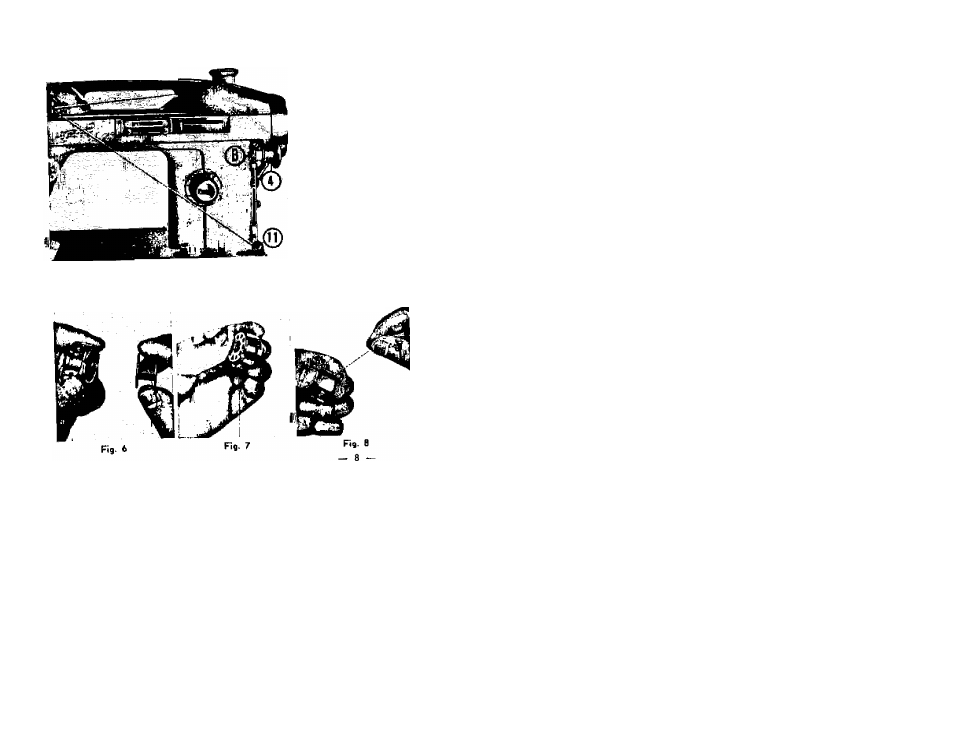

Reier to Fi,B. 6, 7 «id 8 to youreelf »1th the ptooedute_ Hold the bobbta
— case in your left hand. Let about
two inches of thread hang free from
the bobbin, and insert bobbin into
case so that thread will be rotating
counterclockwise. Guide the thread
end through the slot on the side
of the case and under the tension
spring until it enters the small notch
on the edge of the spring.
