Fig. 42
HOW TO REPLACE LIGHT BULB
Grasp
light
bulb
button
(see
31,
Fig.
2;
and
pull
light
bracket
down
ward.
Unscrew
bulb
and
replace
with
bulb
of
same
size,
which
is
available from your sewing machine dealer.
HOW TO CHANGE THE BELT
If
it
should
ever
become
necessary
to
replace
the
belt
on
your
ma
chine, the hand wheel must first be loosened and moved out.
To do this, follow these instructions :
1.

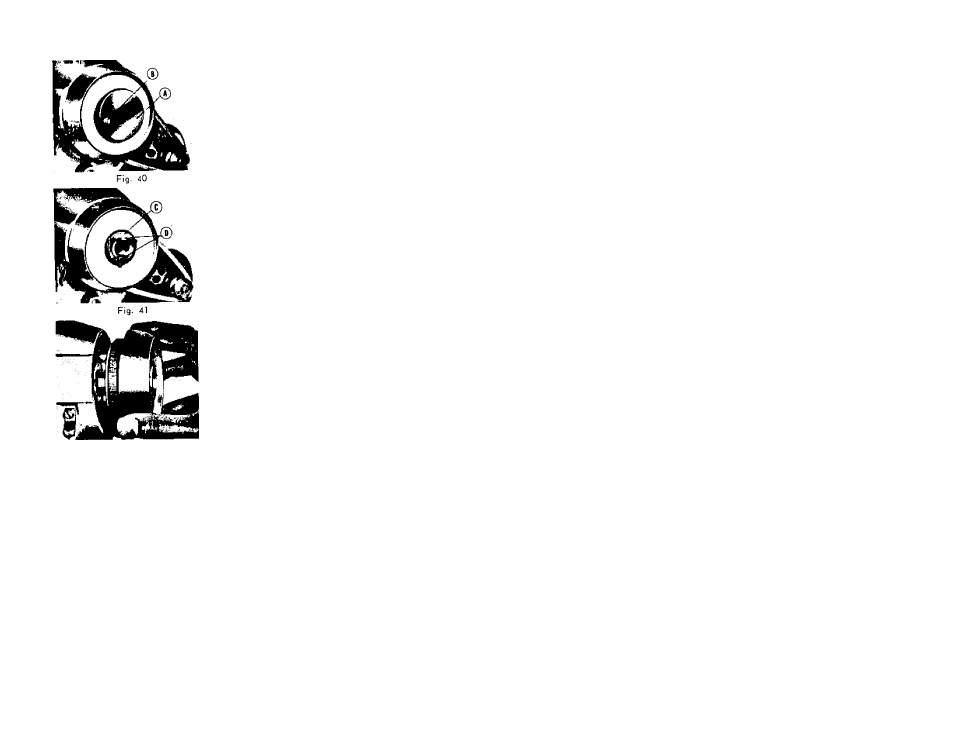

Remove clutch nut A in center of wheel by taking out the small
screw
B
near
the
edge.
Fig.
40.
Turn
nut
counterclockwise
until
it can be lifted off.
2.
Before
moving
the
hand
wheel,
note
the
position
of
the
washer,
C, Fig. 41, which fits under the clutch nut. It may fall out when
you are changing the belt.
3.
Pull
hand
wheel
away
from
the
machine
carefully.
Fig.
42.
Pull
it
just
far
enough
to
make
the
grooved
section
which
holds
the
belt accessible.
4
.
Slide old belt over hand
wheel and over
pulley on the
end
of
motor.
