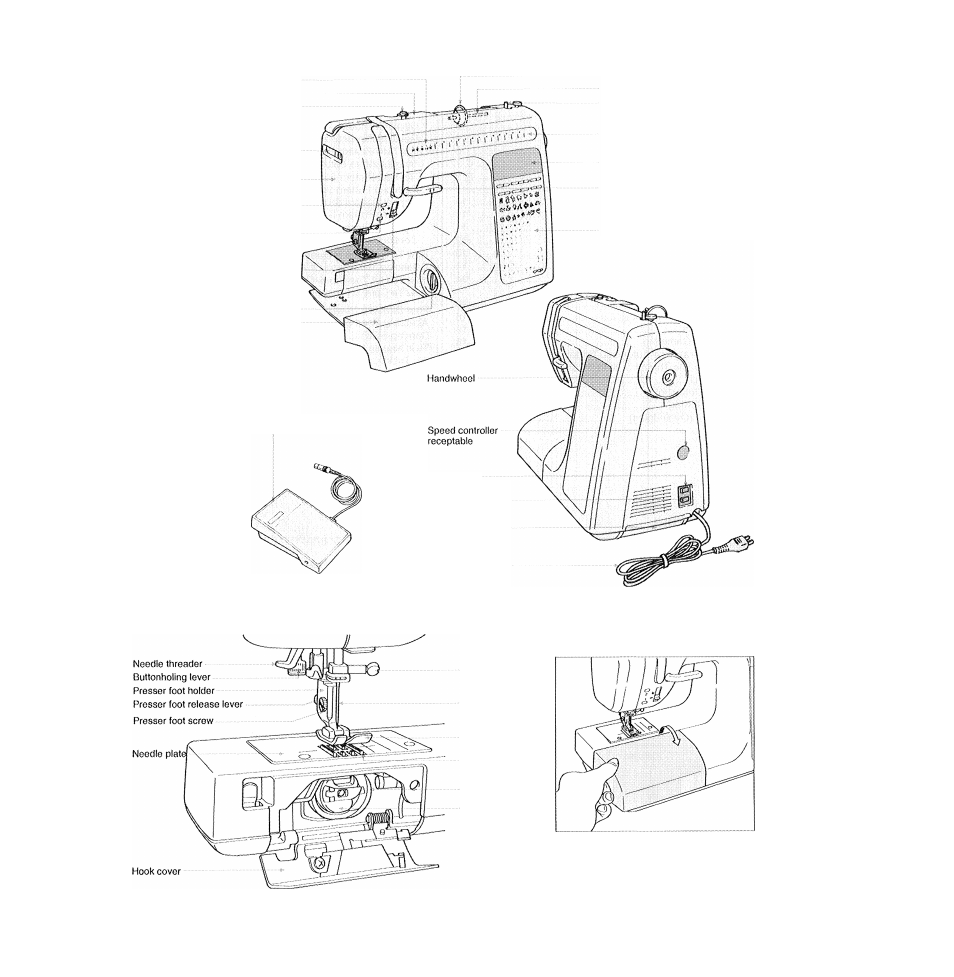

Principal Parts
Indicator lights
Thread sensor guide
Bobbin winder thread guide
Pressor foot adjusting lever
Face plate cover
Reverse stitch button
Start/stop button
(When speed controller Is not used.)
Sewing speed setting lever
(When speed controller is not used.)
Stitch balance control
Auxiliary bed
Speed controller
Thread spool cap
Spool pin
Bobbin winder
Instant pattern button
Liquid crystal display
Presser foot lifter/thread cutter lever
Pattern display panel
Light switch
Power switch
Accessory box
Electric power cord
Converting the machine to free-arm
Needle clamp
Needle
Presser foot
Feed dog
Hook
Bobbin case
Lift the auxiliary bed, pull it toward you.
and pull it down.
