RBimovmQ BOBBIN
case
3;-PJTTLl

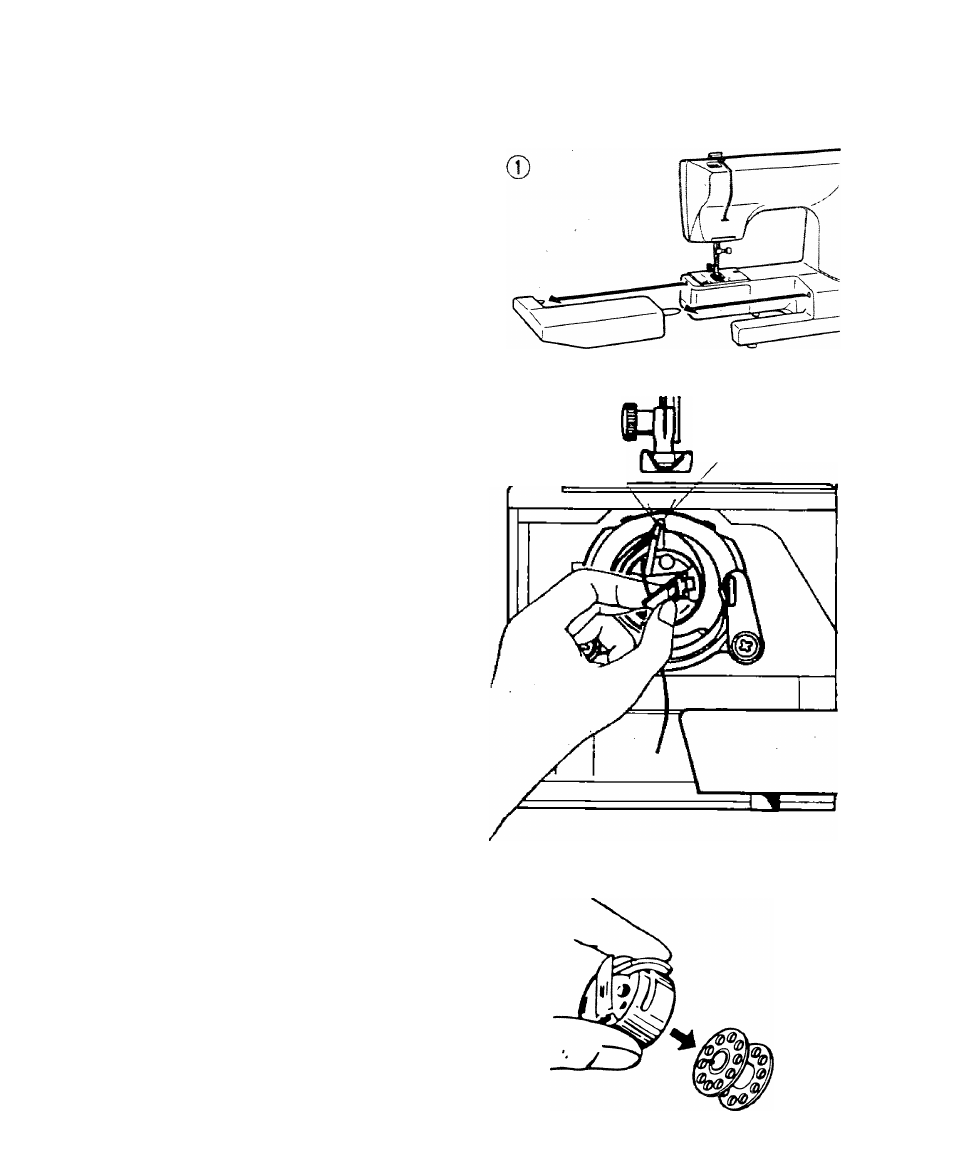

1. Remove the extension table from the
machine by puiling it to the left.
ha. Open the bobbin access cover by
pulling it down at the notch.
b. With your forefinger and thumb, pull
up the latch on the bobbin case.
c. Using this latch, lift the bobbin case out
of the shuttle.
Locating pin
A
Locating groove
3. Turn the bobbin case upside down and the
bobbin will drop out of the case.
