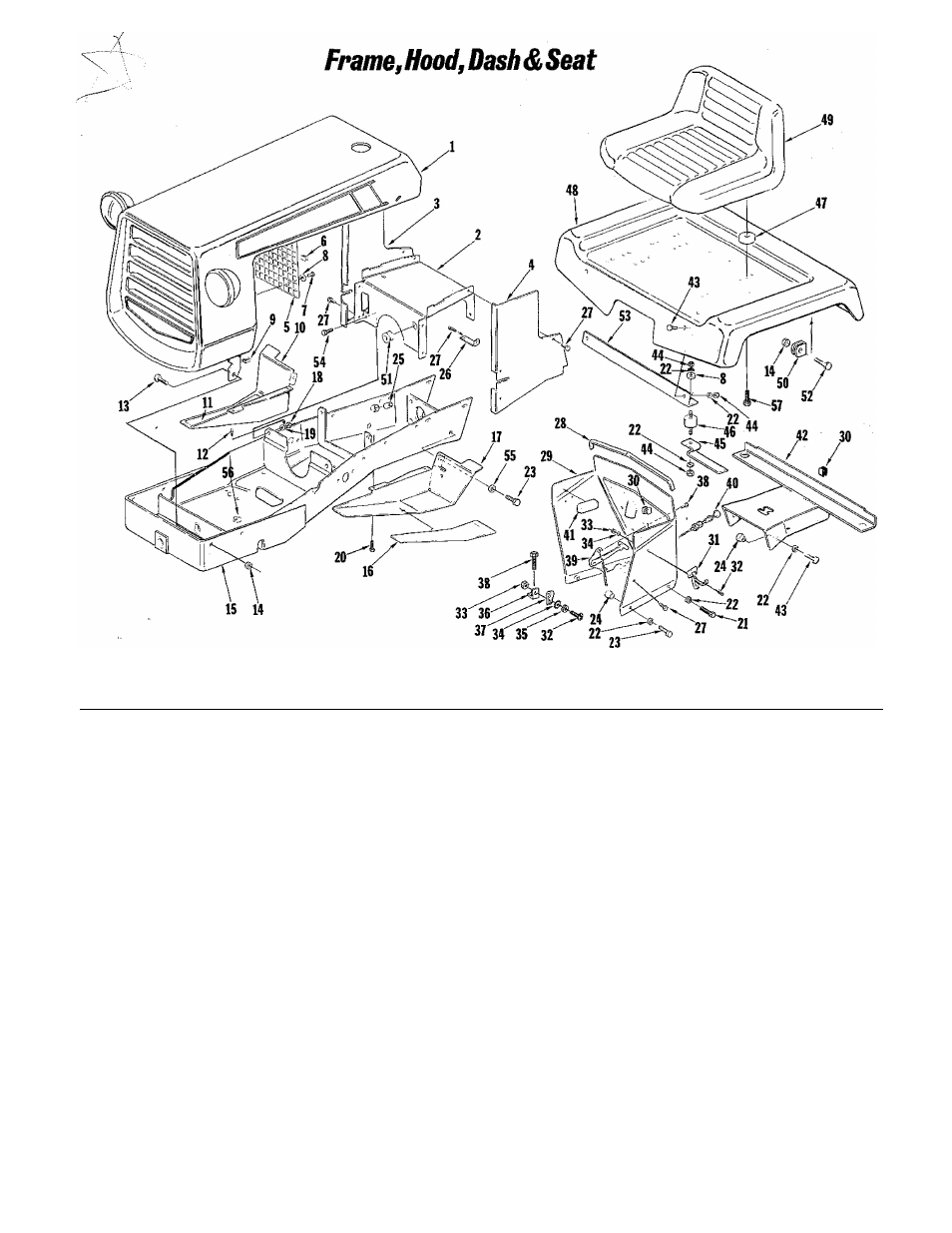

Homelite T-16H User Manual
Page 9
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
No.
Description
Part No.
Qty,
No.
Description
Part No.
Qty,
1
HOOD ASSEMBLY
LM-16063-79
1
30
CLIP-cable
LM-01724-34
2
*2
SUPPORT ASSEMBLY-battery
LM-16081-06
1
31
LATCH-hood
LM-16032-78
2
3
PANEL-side (R. H.)
LM-16064-48
1
32
SCREW-rd. hd., i 0-24 x 3/8
LM-09160-79
5
4
PANEL~side (L, H.)
LM-16064-47
1
33
NUT-hex, 10-24
LM-09166-21
. 5
5
SCREEN-grille
LM-16071-83
1
34
WASHER-lock #10, ext. tooth
LM-09227-11
5
6
SPEED“Clip
LM-01650-74
7
35
WASHER-#10
LM-09232-12
1
7
RIVET-pop
LM-16045-56
4
36
BRACKET-throttle cable
LM-01573-15
1
8
WASHER-1/4
LM-09173-77
6
37
CLIP-throttle cable
LM-16031-04
1
9
SPEED CLIP
LM-16044-51
1
38
SCREW-tapping, 1/4-20 x 5/8 (Taptite)
LM-09274-29
3
10
FOOT REST (R. H.)
LM-16064-09
I
39
THROTTLE
LM-16066-89
1
11
PAD-foot (R. H.)
LM-16066-77
1
40
CHOKE (includes nut & washer)
LM-01713-34
1
12
FITTING-lube (drive type)
LM-09211-33
1
41
GASKET-felt
LM-01065-S2
8
13
BOLT-carriage, 3/8-16 x 3/4
LM-09221-10
2
42
COVER ASSEMELY-frame
LM-16064-61
1
14
NUT-hex lock, 3/8-16
LM-09234-28
4
43
SCREW-hex hd. cap, 5/16-18x5/8
LM-09193-18
6
*15
FRAME ASSEMBLY
LM-16081-08
1
44
NUT-hex, 5/16-18
LM-09173-72
10
16
PAD-foot (L.H.)
LM-16066-78
1
45
CLIP-spring
LM-16068-23
2
17
FOOT REST (L.E.)
LM-16064-08
1
46
CONNECTOR-cushion
LM-01570-94
2
18
NUT-hex hd., 3/8-16
LM-09169-50
4
*47
C ONN E C TOR - cushion
LlW-16085-35
4
19
WASHER-lock, 3/8
LM-09169-65
4
48
DECK ASSEMBLY-seat
LM-01661-11
1
20
SCREW-Taptite, 3/8-16 x 3/4
LM-09236-83
4
*49
SEAT
LM-1607y-86
1
21
SCREW-hex hd. cap, 5/16-18 x 3/4
LM-09173-97
2
50
STOP-seat deck
LM-16078-70
2
22
WASHER-lock. 5/16
LM-09173-56
12
51
GROMMET (T-10, T-16S)
LM-16021-02
1
23
SCREW-hex hd. Taptite, 3/8-16 x ]/2
LM-0924S-56
4
GROMMET (T-16H only)
LM-16021-02
2
24
NUT-retainer, 5/16-18
LM-0922S-58
6
52
SCREW-hex hd. cap, 3/8-16 x 1-1/4
LM-09174-00
2
25
BEARING-sleeve
LM-16064-45
2
53
BRACKET-front seat deck
LM-01640-29
1
26
GLIP-elosed (furn. open)
LM-09253-07
1
54
SCREW-hex cap. 3/8-16 x 3/4
LM-09081-27
4
CLIP-closed (T-16H)
LM-09253-07
2
55
WASHER-flat, 13/32
LM-0922T-55
2
27
SCREW-Taptite, ]/4-20 x 1/2
LM-09250-03
9
56
CLIP-cable
LM-01724-36
1
28
MOULDING-dash
LM-16066-16
1
57
SCREW-cap, 5/16-18 x 1
LM-09213-33
4
*29
PANEL ASSEMBLY-instrument
LM-16080-83
I
* Denotes new parts
ALWAYS FURNISH MODEL AND SERIAL NUMBER WHEN ORDERING PARTS.
