Homelite T-16H - Manual (Page 22)

m
No.

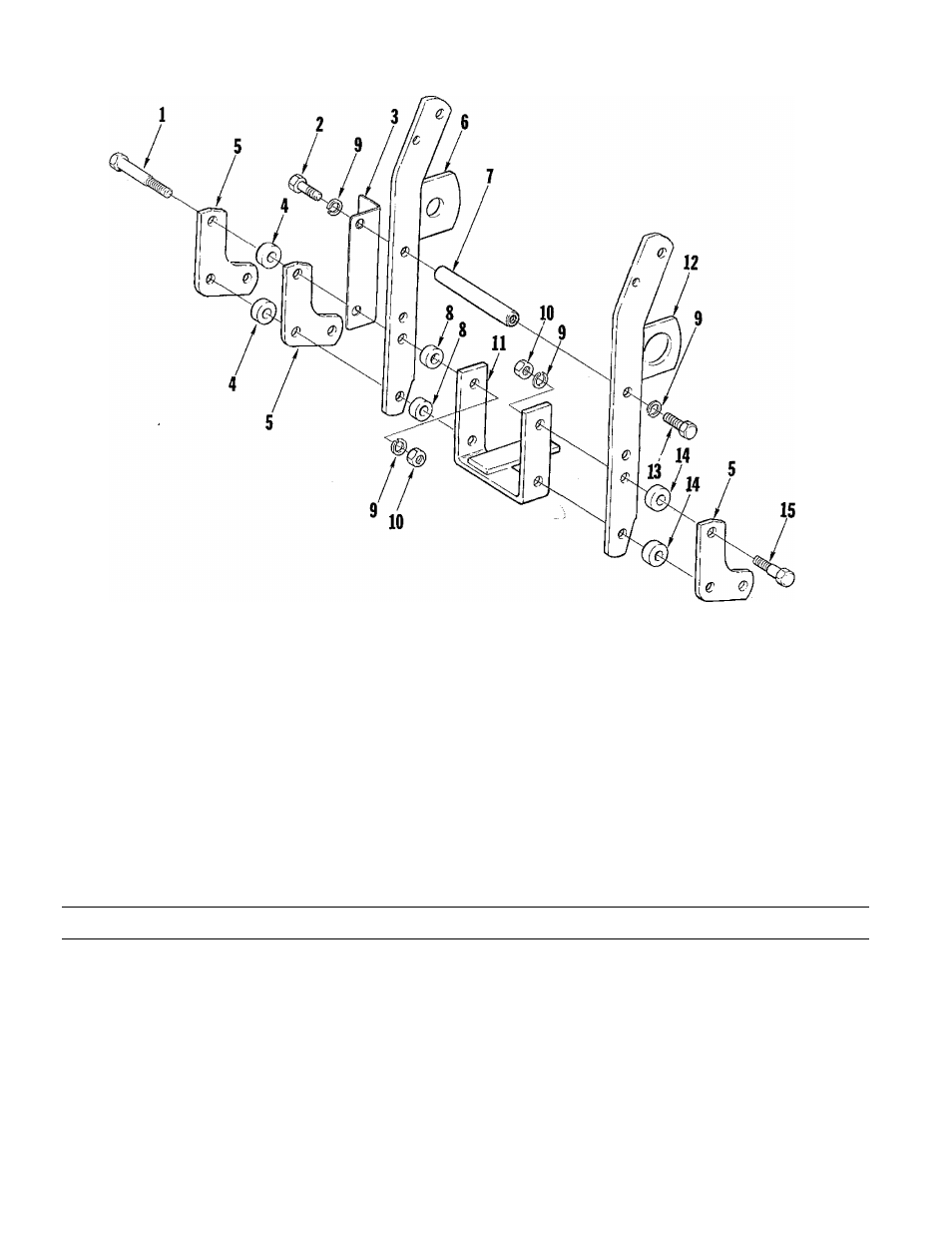

Draw Bar Assembly T-16H
Description Part No. Qty.
1 SCREW”hex hd. cap, 7/16-14 X 3 LM-09193-65 2
2 SCREW-hex hd. cap, 7/16-14 x 1-3/4 LM-09166-09 1
3 PLATE-decal LM-01661-98 i
4 SPACER LM-01660-76 2
5 PLATE-draw LM-03660-75 3
6 BAR ASSEMBLY-upright LM-01662-06 3
7 SPACER LM-01661-10 1
8 SPACER LM-16066-41 2
9 WASHER-lock, 7/16 LM-09181-99 6
10 NUT-hex, 7/16-14 LM-09182-13 4
11 DRAWBAR ASSEMBLY LM-16066-38 1
12 BAR ASSEMBLY-upright LM-01660-72 1
13 SCREW-hex hd. cap, 5/16-14 X 1-1/4 LM-09164-32 1
14 SPACER LM-16066-42 2
15 SCREW-hex hd. cap, 7/16-14 x 2-1/4 LM-09193-64 2
* Denotes new parts
Des cription Part No.
O «
X
sO
Qty. Description Part No.
o 'O
X
A Qty.
*FILM-shift LM-01762-99 X 1 *DECAL-hydrostatic LM-16072-S9 X 2
*PLATE-safety LM-16082-02 X 1 DECAL-T-10 LM-16075-50 X 3
PAINT-spray can (blue) 12 oz. 24764 X X X *DECAL-T~16 LM-16 081-56 X X 3
PAINT-spray can (white) 12 oz. 24765 X X X *DECAL-instrument panel LM-160S2-99 X 1
PAINT-spray can (black) 12 oz. 22772 X X X * DECAL-instrument panel LM-16 082-03 X 1
*PAINT-safety w/shift pattern LM-16082-98 X
1 *DECAL-instrument panel LM-16081-46 X 1
*PAINT-safety w/shift pattern LM-16084-9 7 X 1 *DECAL-caution LM-16081-48 X X X 1
PLAQUE-hood (R. H.) /:/LM-1607 5-49 X X X 1 DECAL-parking brake LM-01728-16 X X X 1
PLAQUE-hood (L. H.) LM-16075-48 X X X 1 *DECAL-quadrant LM-16081-55 X 1
PLAQUE-grille LM-16075-47 X X X 1 FILM-ins t. (clutch & brake) LM-01749-24 X X X 1
STUD RECEIVER-push on LM-16076-22 X X X 13
*DECAL-shuttle LM-16086-25 X 2
* Denotes new parts
ALWAYS FURNISH MODEL AND SERIAL NUMBER WHEN ORDERING PARTS.
