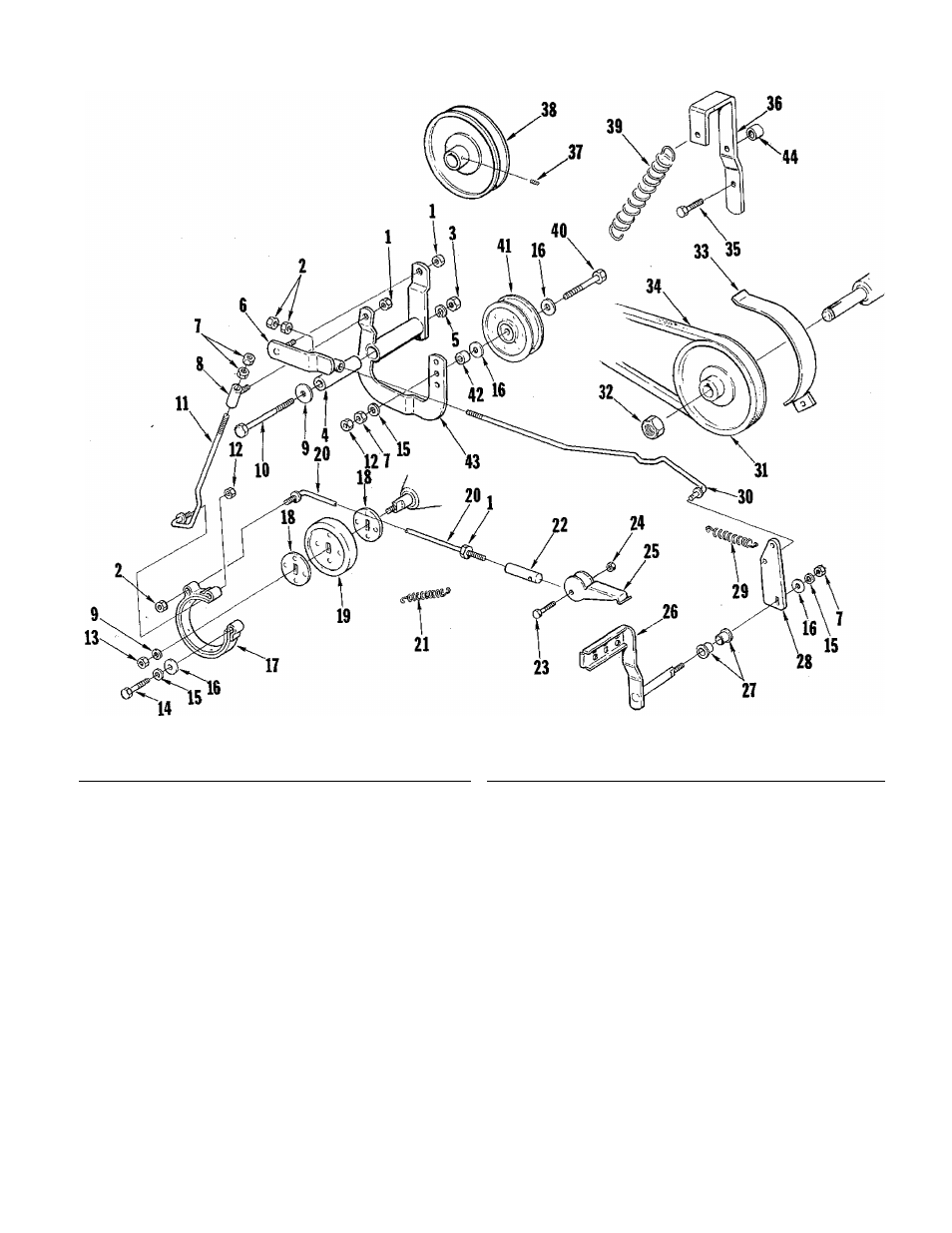

Clutch & Brake T-16H
No.
Description
Part No.
Qty.
1
NUT-hex lock, 5/16-18
LM-09233-62
3
2
NUT-hex fin, 5/16-18
LM-09173-72
3
3
NUT-hex fin, 7/16-14
LM-09182-13
1
4
SPACER
LM-01661-30
1
5
WASHER-lock, 7/16
LM-09181-99
1
6
GUIDE ASSEMBLY-rod
LM-01661-57
1
7
NUT-hex fin, 3/8-16
LM-09169-50
4
8
GUIDE ASSEMBLY-rod
LM-16035-62
1
9
WASHER-flat, 7/16
LM-09184-30
2
10
SCREW-hex hd. cap, 7/16-14x3-3/4
LM-09193-67
1
11
ROD ASSEMBLY-brake
LM-01724-60
1
12
NUT-hex lock fin, 3/8-16
LM-09234-28
^ 2
13
NUT-hex lock, 7/16-14
LM-09240-58
1
14
SCREW-hex hd.eap, 3/8-16 x 1-3/4
LM-09193-61
1
15
WASHER-lock, 3/8
LM-09169-65
3
16
WASHER-Hat, 3/8
LM-09173-78
4
17
BAND ASSEMBLY-brake
LM-01722-34
1
18
WASHER-special
LM-01581-96
2
19
DRUM-brake
LM-01661-76
1
20
ROD ASSEMBLY-parklng brake
LM-16 06 8-17
1
21
S BRING
LM-01210-37
1
22
ROD-end
LM-01719-94
1
No.
Description
Part No.
Qty.
23
SCREW-hex hd. cap, 1/4-20 x 1-1/4
LM-09287-45
1
24
NUT-hex lock, 1/4-20
LM-09233-58
1
25
LEVER-parking brake
LM-01721-08
1
*26
PEDAL ASSEMBLY-foot
LM-01711-78
1
27
BUSHING-flanged
LM-16104-56
2
28
ARM-foot pedal
LM-16064-77
1
29
SPRING-brake pedal
LM-01591-06
1
30
ROD-clutch & Brake
LM-16064-78
1
31
PULLEY-driver
LM-16062-06
1
32
NUT-jam lock, 3/4-16
LM-16070-21
1
33
RETAINER ASSEMBLY-belt
LM-16074-57
1
34
BELT-hydrostatic drive
LM-16029-69
1
35
SCREW-tapping (Taptite), 3/8-16 x 1
LM-09286'-96
2
*36
BRACKET-spring
LM-16082-50
1
37
SETSCREW-5/16-18 x 5/16
LM-09117-12
1
38
PULLEY-driven
LM-01661-73
1
39
SPRING-idler pulley
LM-160S3-95
1
40
SCREW-hex hd, cap, 3/8-16 x 2-1/4
LM-09193-62
1
41
PULLEY-idler
LM-16035-15
1
42
SPACER
LM-01570-81
1
43
LEVER ASSEMBLY-idler
LM-01661-26
1
44
SPACER
* Denotes new parts
LM-16104-04
1
