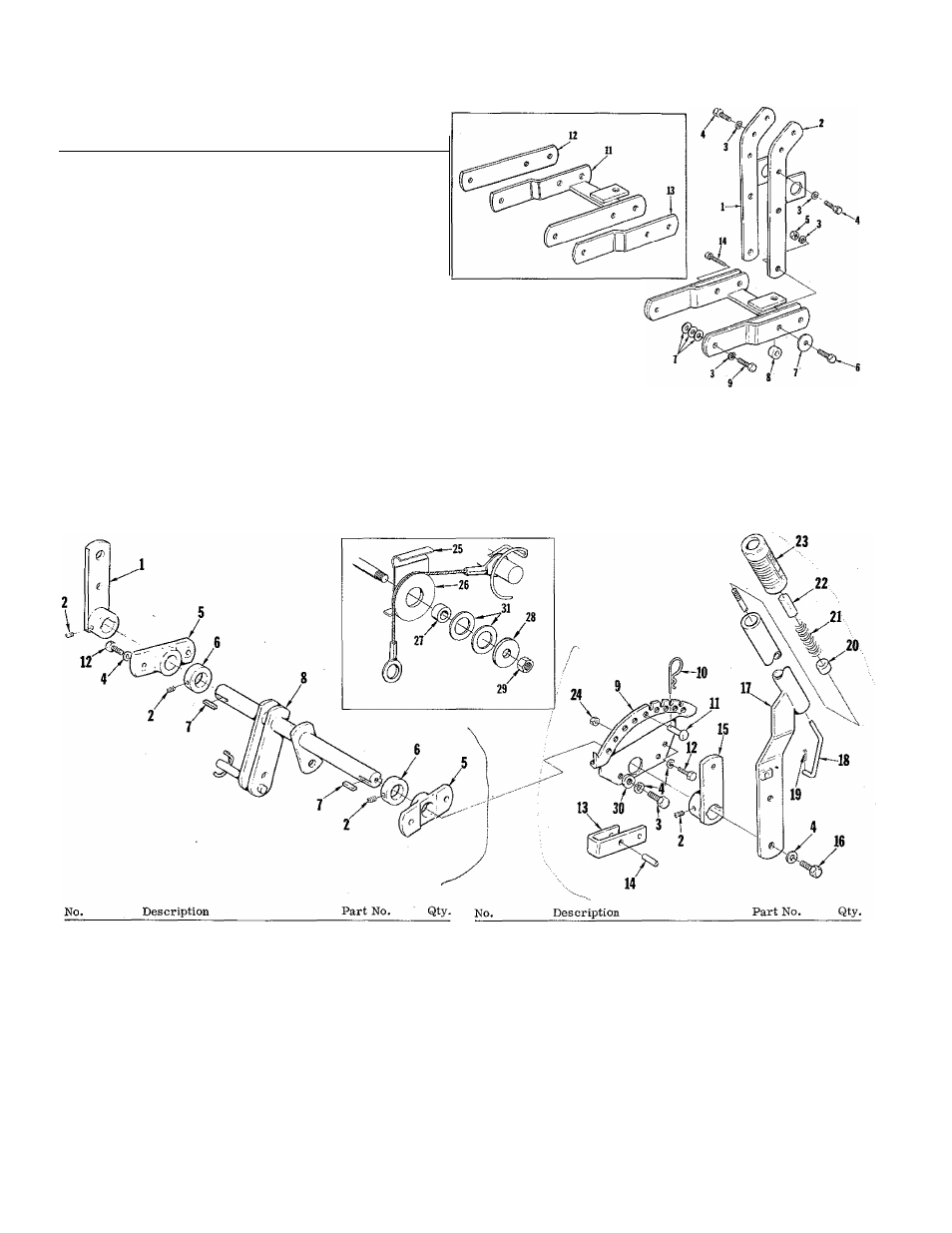

Draw Bar Assembly T-10
No.
Des cription
Part No.
Qty.
1
ARM ASSEMBLY (L. H.)
LM-01643-04
1
2
ARM ASSEMBLY (R. H.)
LM-01642-84
1
3
WASHER-lock
LM-09181-99
8
4
SCREW-hex hd. cap
LM-09182-12
4
5
NUT-hex
LM-09182-13
2
6
SCREW-hex hd. cap, 7/16-14 x
1-3/4
LM-09166-09
1
7
WASHER-Hat
LM-09184-30
7
8
SPACER
LM-01660-76
2
9
SCREW-hex hd. cap. 7/16-14 x
1-1/2
LM-09166-08
1
10
SCREW-hex hd. cap, 7/16-14 x
1-1/4
LM-09164-32
1
11
DRAWBAR ASSEMBLY
LM-16066-36
1
12
BAR-pull
LM-01570-91
1
13
BAR-draw
LM-01542-03
1
14
SCREW-hex, 7/16-14 x 2
LM-09174-03
1
Lift Jksembly T‘10& hlBS
1
LEVER ASSEMBLY-front lift
LM-01576-25 1
2
SETSCREW-hex soc, 5/16-18 X 5/16
LM-09117-12 4
3
SCREW-hex hd. cap
LM-090 7 7-31 2
4
WASHER-lock
LM-09169-65 7
5
BEARING-lift lever
LM-01576-20 2
6
COLLAR-set
LM-01576-24 2
7
KEY-plain parallel
LM-09213-46 4
8
SHAFT ASSEMBLY-Uft
LM-16064-31 1
*
9
QUADRANT-lift lever
LM-16076-48 1
10
CLIP-spring
LM-81610-45 1
*11
PIN-lock
LM-16087-02 1
12
SCREW-hex hd. cap
LM-09081-27 3
13
LATCH-Uft lever
LM-01730-39 1
14
PIN-spring
LM-09181-13 1
15
LIFT LEVER ASSEMBLY-inner sect. LM-01715-93
1
16
SCREW-hex hd. cap, 3/8-16 x 1
LM-09212-10 2
17
LEVER ASSEMBLY-lift
LM-16065-51 1
1^
ROD-latch lift lever
LM-16065-53 1
19
PIN-cotter
LM-09184-47 1
20
SPACER-handle, lift lever
LM-01542-26 1
21
SPRING-stand
LM-01520-06 1
22
BUTTON-thumb '
LM-01542-27
1
23
GRIP-lift lever
LM-01562-09 1
24
NUT-hex fin, 3/8-16
LM-09169-50 1
25
CLIP-cable retaining
LM-16064-30 1
26
PULLEY
LM-01727-25 1
27
SPACER-pulley
LM-16064-69 1
28
WASHER-flat, 13/32
LM-09226-11 1
29
NUT-hex lock, 3/8-16
LM-09234-28 1
30
WASHER-flat, 3/8
LM-09173-7S 2
31
WASHER
LM-01084-72 2
ALWAYS FURNISH MODEL AND SERIAL NUMBER WHEN ORDERING PARTS.
