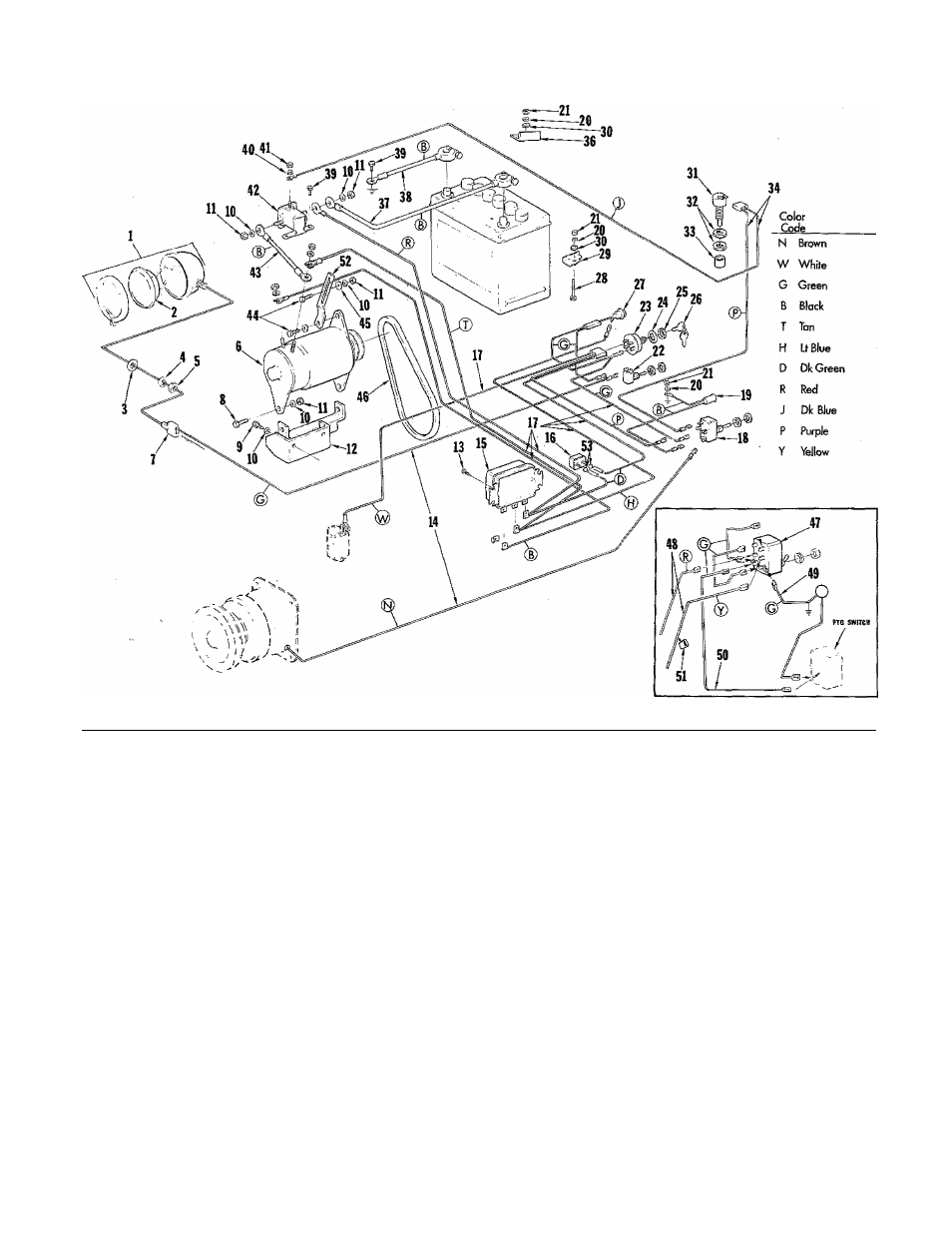

Electrical T-10, T-16S&T-16H
Hi
No.
Description
Part No.
Qty.
No.
Description
Part No.
Qty.
1
LAMP ASSEMBLY
LM-01221-7 5
2
29
CLAMP-battery (L. H.)
LM-16073-43
1
2
Includes: BULB
LM-01221-64
2
30
WASHER-1/4
LM-09173-77
2
3
WASHER-flat, 7/16
LM-09184-30
6
31
SWITCH-safety
LM-01222-33
1
4
WASHER-lock, 1/2
LM-09169-66
2
Includes:
5
NUT-hex fin, 1/2-13
LM-09169-51
2
32
NUT-hex special
LM-01222-34
1
6
MOTOR-generator
LM-01222-36
1
33
BOOT-rubber
LM-16 044-40
1
7
CONKECTOR-insulated
LM-01221-82
1
34
WIRE ASSEMBLY-switch
LM-16067-65
1
8
SCREW-hex M. cap, 5/16-18 x 1-1/4
LM-09077-29
2
35
BATTERY
LM-16073-60
1
9
SCREW-hex hd. cap, 5/16-18 x 3/4
LM-09173-97
2
Includes: LABEL (not shown)
LM-16073-57
1
10
WASHER-lock, reg, 5/16
LM-0917 3-56
S
36
CLAMP-battery (R.H.)
LM-16073-42
1
11
NUT-hex fin. 5/16-18
LM-09173-72
5
37
CABLE-battery to solenoid
LM-16012-43
1
12
SUPPORT ASSEMBLY-generator
LM-16063-67
1
38
CABLE-battery to ground
LM-01718-11
1
13
SCREW-tapping (Taptite) 1/4-20 x 5/8
LM-092 74-2 9
3
39
SCREW-Taptite, 1/4-20 x 1/2
LM-09250-03
2
14
HARNESS ASSEMBLY-Iight & PTO
LM-16067-66
1
40
WASHER-lock, ext. tooth #10
LM-09227-11
1
15
REGULATOR-voltage
LM-01221-93
1
41
NUT-mach. screw hex, 10-32
LM-09174-15
1
16
BREAKER-circnit
LM-01721-63
1
42
SOLENOID
LM-01222-16
1
17
HARNESS ASSEMBLY-wiring
LM-16067-64
1
43
CABLE-generator to solenoid
LM-16036-18
1
18
SWITCH TOGGLE-PTO
LM-16072-42
1
44
SCREW-hex hd. cap, 5/16-18 x 3/4
LM-09213-32
2
19
LIGHT-pilot
LM-16072-44
1
45
WASHER-5/16
LM-09176-42
1
20
WASHER-lock, 1/4
LM-09169-64
3
46
BE LT-generator
LM-16073-23
1
21
NUT-hex, 1/4-20
LM-09166-22
3
47
SWITCH-toggle (actuator) T-16H only
LM-16072-43
1
22
SWITCH-light toggle
LM-01221-S4
1
48
HARNESS-switch to actuator (T-16H only)LM-16067-69
1
23
SWITCH-key
LM-01222-01
1
49
LEAD-switch to ground (T-16H only)
LM-16073-72
1
Includes:
50
LEAD-switch to PTO switch (T-16H only)LM-16067-68
1
24
WASHER
LM-09286-36
1
51
CLIP-speed (T-16H only)
LM-01650-73
1
25
NUT-hex
LM-01222-35
1
52
ARM-belt tightener
LM-01571-02
1
26
KEY-set (ignition)
LM-16032-49
1
53
WASHER-insnlation
LM-16076-08
2
27
INDICATOR-lamp assembly
LM-01712-95
1
28
SCREW-hex hd. cap, 1/4-20 x 2
LM-09199-29
2
* Denotes new parts
ALWAYS FURNISH MODEL AND SERIAL NUMBER WHEN ORDERING PARTS.
