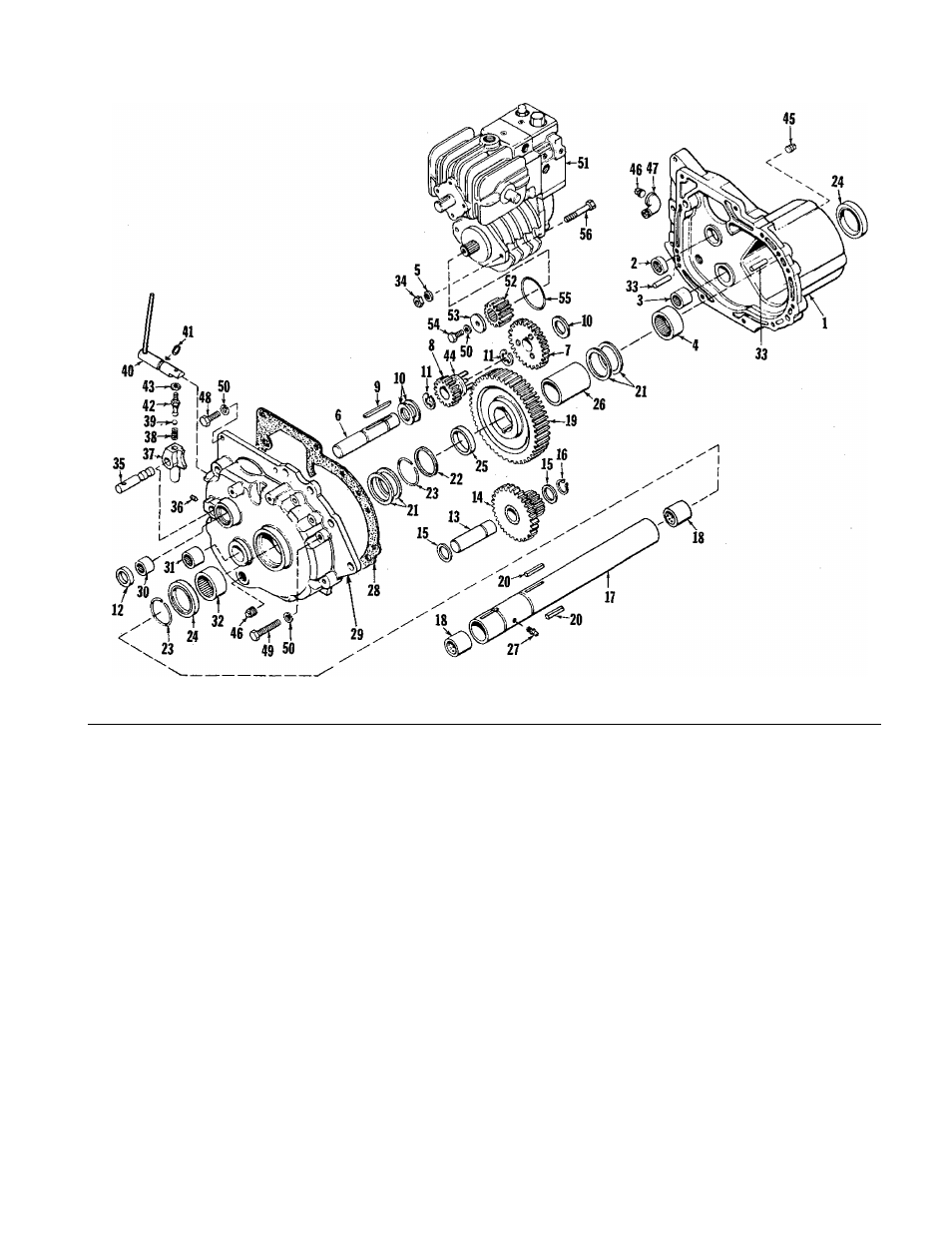

Traimmission Assembly T‘16H
No,
Description
Part No.
Qty.
No.
Description
Part No.
Qty.
1
GEAR CASE
LM-01661-05
1
31
BEARING-needle
LM-01660-18
1
Includes;
32
BEARING-needle
LM-01575-19
1
2
BEARING-needle
LM-01542-71
1
33
PHSr-roll, 3/8 X 1
LM-09183-90
2
3
BEARENG-needle
- LM-01660-18
1
34
NUT-MI hex, 7/16-14
LM-09182-13
2
4
BEARING-needle
LM-0157 5-19
1
*35
SHAET-shifter
LM-01762-39
1
5
WASHER-lock. 7/16
LM-09191-99
2
36
SCREW-cone pt, hollow hd.
* 6
BRAKE SHAFT
LM-01762-46
1
5/16-18 X 1/2
LM-09172-31
1
* 7
GEAR-lst. Interm,
LM-01762-45
1
*37
FORK-shift
LM-0176 2-34
1
*
8
PINION-1st. Interm.
LM-01762-43
1
38
SPRING
LM-01543-23
1
* 9
KEY
LM-01762-44
1
39
BALL-shift lock
LM-01542-62
1
10
WASHER
LM-016GO-13
3
*40
SHIFT SHAFT ASSEMBLY
LM-01762-38
1
*11
ring
-retainer
LM-01769-80
2
41
"0" RING
LM-09235-48
1
12
SEAL-oil
LM-016 6 0-21
1
42
STEM-shift
LM-01660-29
1
13
SHAFT-Interm.
LM-016&0-12
1
43
NUT-hexjam, 5/16-24
LM-09204-38
1
*14
PINION & GEAR ASSEMBLY
LM-01762-36
1
*44
FLANGE-drive
LM-01762-42
1
15
WASHER
LM-01660-16
2
45
PLUG-pipe, 1/4
LM-09016-52
1
16
RING-retaining
LM-01660-17
1
46
PLUG-pipe
LM-09016-53
2
17
AXLE TUBE ASSEMBLY
LM-01660-66
I
47
ELBOW-street, 3/8
LM-09017-23
1
18
Includes: BUSHING
LM-01642-24
2
48
SCREW-hex cap, 5/16-18 x 1
LM-09164-31
5
19
GEAR-drive
LM-01660-06
1
49
SCREW-hex cap, 5/16-18 x 2
LM-09193-54
4
20
KEY
LM-01540-96
2
50
WASHER-lock, 5/16
LM-09173-56
10
21
WASHER
LM-01540-97
4
51
PUMP & MOTOR UNIT-hydrostatic
LM-0166 0-97
1
22
WASHER
LM-01661-67
1
52
PINlON-motor shaft
LM-01660-03
1
23
RING-snap
LM-01542-6 8
2
53
WASHER
LM-01231-44
1
24
SEAL
LM-01542-6 9
2
54
SCREW-hex cap, 5/16-24 x 5/8
LM-09219-80
1
25
SPACER-side (R. H.)
LM-01660-40
1
55
"0''RING
LM-01660-26
1
26
SPACER-side {L. H.)
LM-016 6 0-41
1
56
SCREW-hex cap, 7/16-14 x4
LM-01762-42
1
27
FITTING-greas e
LM-09128-08
1
28
GASKET-gear case
LM-0166 0-43
1
* Denotes new parts
29
COVER-gear case sub assembly
LM-01661-03
1
Includes;
30
BEARING-needle
LM-01660-19
1
ALWAYS FURNISH MODEL AND SERIAL NUMBER WHEN ORDERING PARTS.
