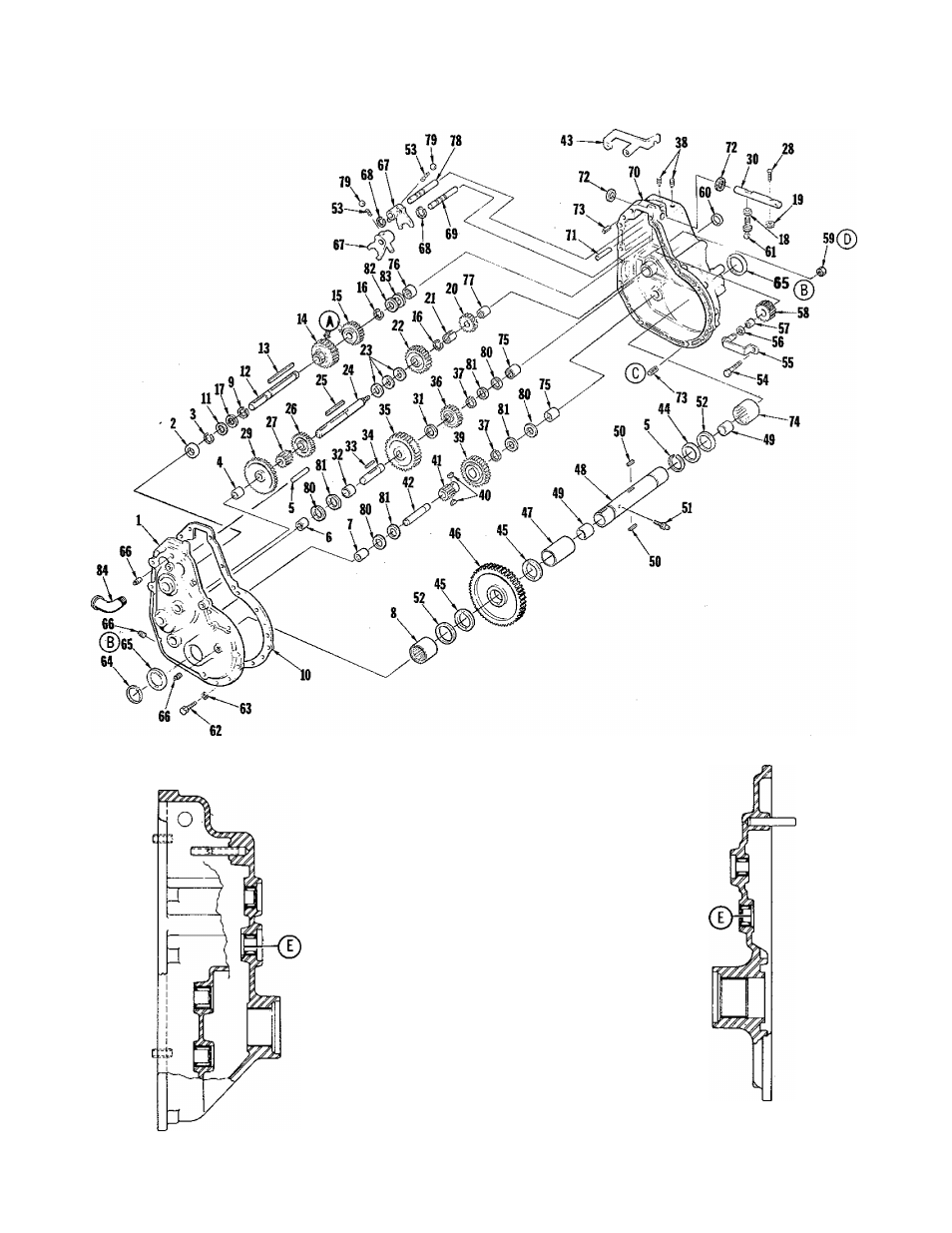

Transmission Assembiy T-10 & T-16S
i
\
X '
Indicates beveled side of gears •
®
Grease inside lips of all seals before
installation.
Install all seals with spring toward
of ease.
©
Cover must be seated over dowel pins (c)
before cap screws are installed.
Tighten (59) to 5S ft. lbs. torque
®
1/16" clearance from inside surface, all
other.bearings have flush fit with inside
aurfacp.
ALWAYS FURWISH MODEL AND SERIAL NUMBER WHEN ORDERING PARTS.
