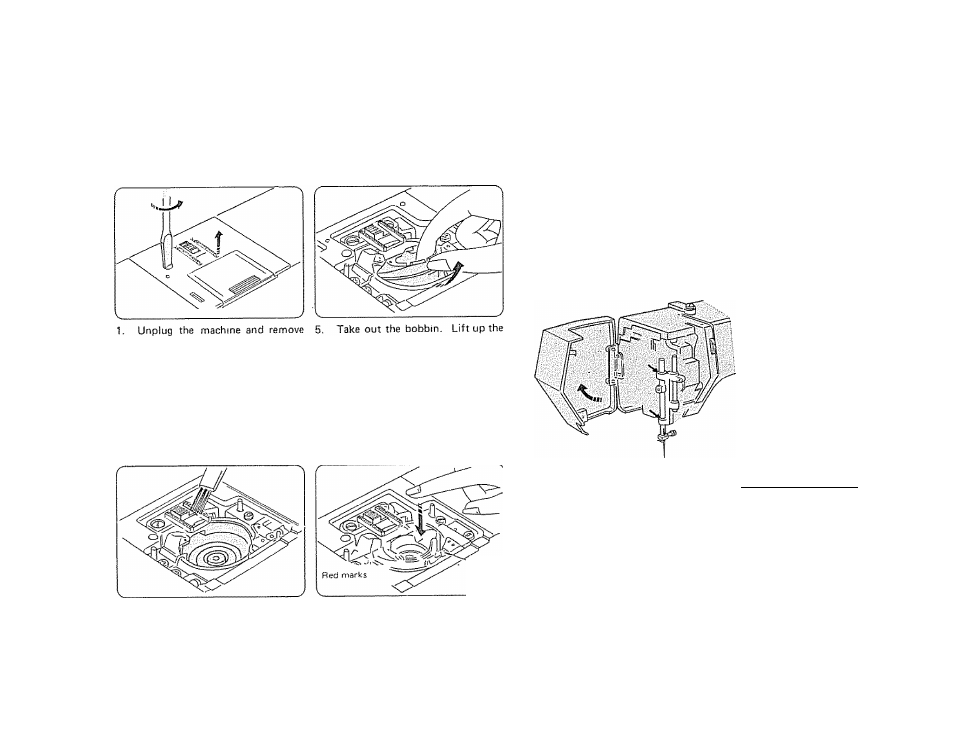

Glean the Hook Race and Feed Dogs
SECTIONS. CARE FOR YOUR MACHINE
Oiling the Machine
the presser foot and needle.
2.
Remove the bobbin cover plate.
3.
Remove the screw/ on the left side
ot the needle with the large screw
driver,
4.
Remove the needle plate.
bobbin holder and remove it.
'Stopper
Use the lint brush to clean the
feed dogs, hook race and bobbin
holder. Also use a soft, dry
cloth.
Line up the red marks and place
the bobbin holder so the knob fits
next to the stopper m the hook
race, as shown above.
Open face cover plate and oil points as shown below at least once a year. One or
two drops of oil is sufficient.
Remove excess oil, otherwise it may stain fabrics.
In case machine is not used for an
extended time, oil it before sewing.
Use good quality sewing machine oil.
No other oiling is required
Above points are only area which
require oiling on this machine.
