SECT:Orvl 3. LEA^N THE STiTCHES

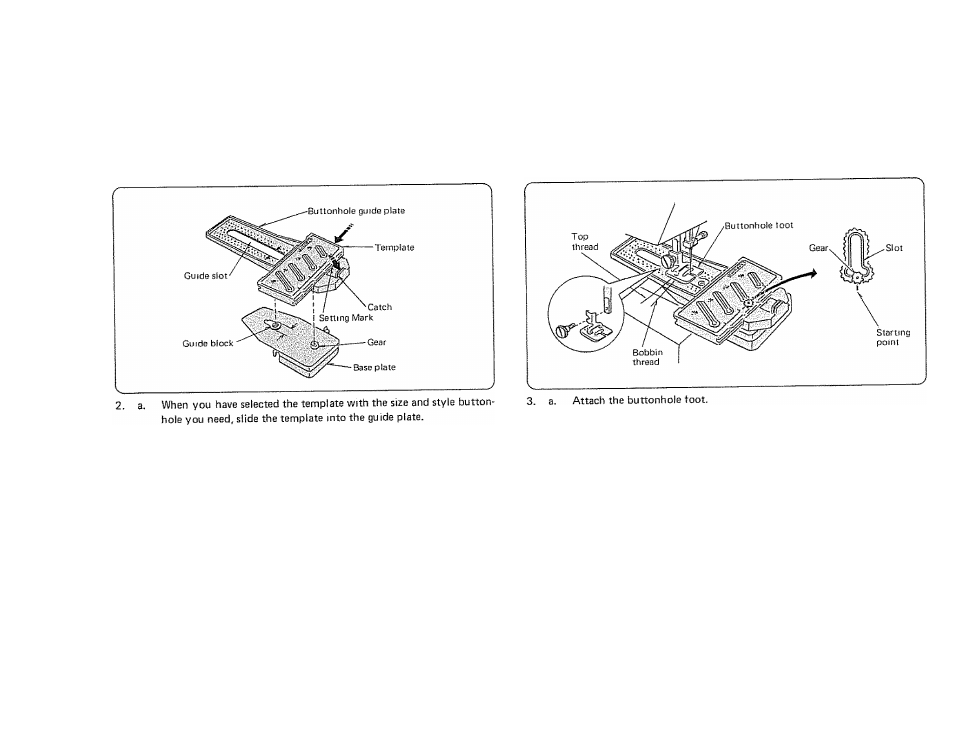

Buttonhole Making (Continued)
b.
Pull catch toward you while sliding the template until the button
hole size you have chosen is at the setting mark.
c.
Insert gear of base plate into slot of template and fit guide block
into the center of the guide slot.
b.
Adjust position of gear so it is aligned with the starting point of
template.
The lever can be used to change gear position.
c.
Pull the bobbin thread up through guide slot by turning the hand wheel
toward you while holding top thread.
d.
Place the bobbin and top threads to the left side of guide plate.
Leave 3 to 4 inches of thread.
46
