ASSEMB LY INSTRUCTIONS

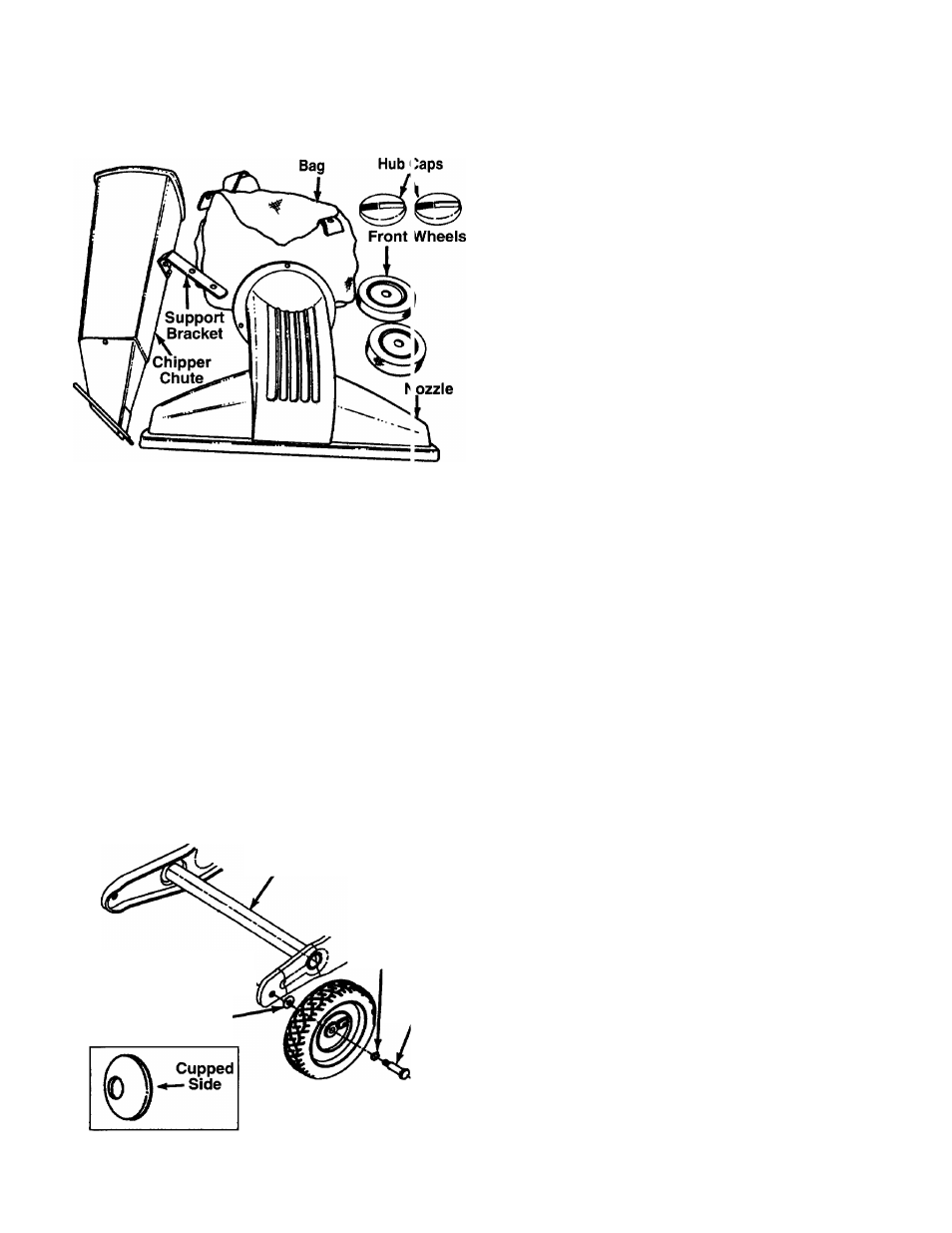

LOOSE PARTS IN CARTON
(See Figure
1)
FIGURE 1.
(2) Front Wheels (1)
(2) Hub Caps (1)
(1) Nozzle Assembly (1)
(1) Chipper Chute (1)
(1) Support Bracket (1)
Bag
Shift Knob
Tamper Plugf
Safety Glassest
Bottle of Oilt
tNot Shown
IMPORTANT: This unit is shipped WITHOUT GASO­
LINE or OIL in the engine. After assembly, see opera­
tion section of this manual for proper fuel and engine
oil recommendations.
NOTE: To determine right and left hand sides of your
chipper-vacuum, stand behind and face the unit
(Refer to figure 7).
Your chipper-vacuum has been completely assem­
bled at the factory except for the front wheels, hub
caps, nozzle, chipper chute, support bracket and bag.
A pair of safety glasses and bottle of oil are also
included in the carton.
REMOVING CHIPPER-VACUUM FROM CARTON
Cut the corners of the carton. Remove all packing
inserts and loose parts. Push down on handle to lift
front of chipper-vacuum, and roll chipper-vacuum out
of the carton. Make certain all parts and literature
have been removed before the carton is discarded.
TOOLS REQUIRED FOR ASSEMBLY
(1) 3/4" Open End Wrench
(2) 1/2" or Adjustable Wrenches
(1) 9/16" Wrench
(1) Funnel
(1) Set of Pliers
0) 7/16" Wrench
Wheel Bracket
Hex
Lock Nut-------
Cupped Washer
Wave
Washe r
Shoulder
Bolt
(
Hub Ù
Cap—
FIGURE 2.
SETTING-UP YOUR CHIPPER-VACUUM
ATTACHING THE FRONT WHEELS
• Tilt unit backward so that it rests on the handle
(place a piece of the carton under handle to avoid
scratches). Remove the cardboard packing
material around the wheel brackets.
• Remove the hex lock nuts and shoulder bolts from
the front of the wheel brackets. See figure 2.
• Place wave washer on shoulder bolt. Insert
shoulder bolt through wheel, with the head of the
shoulder bolt through the flat side of the wheel.
• Assemble wheel to outside of wheel bracket.
Secure with cupped washer and hex lock nut.
Tighten the nut. The cupped side of washer goes
on end of shoulder bolt between the wheel and the
bracket.
