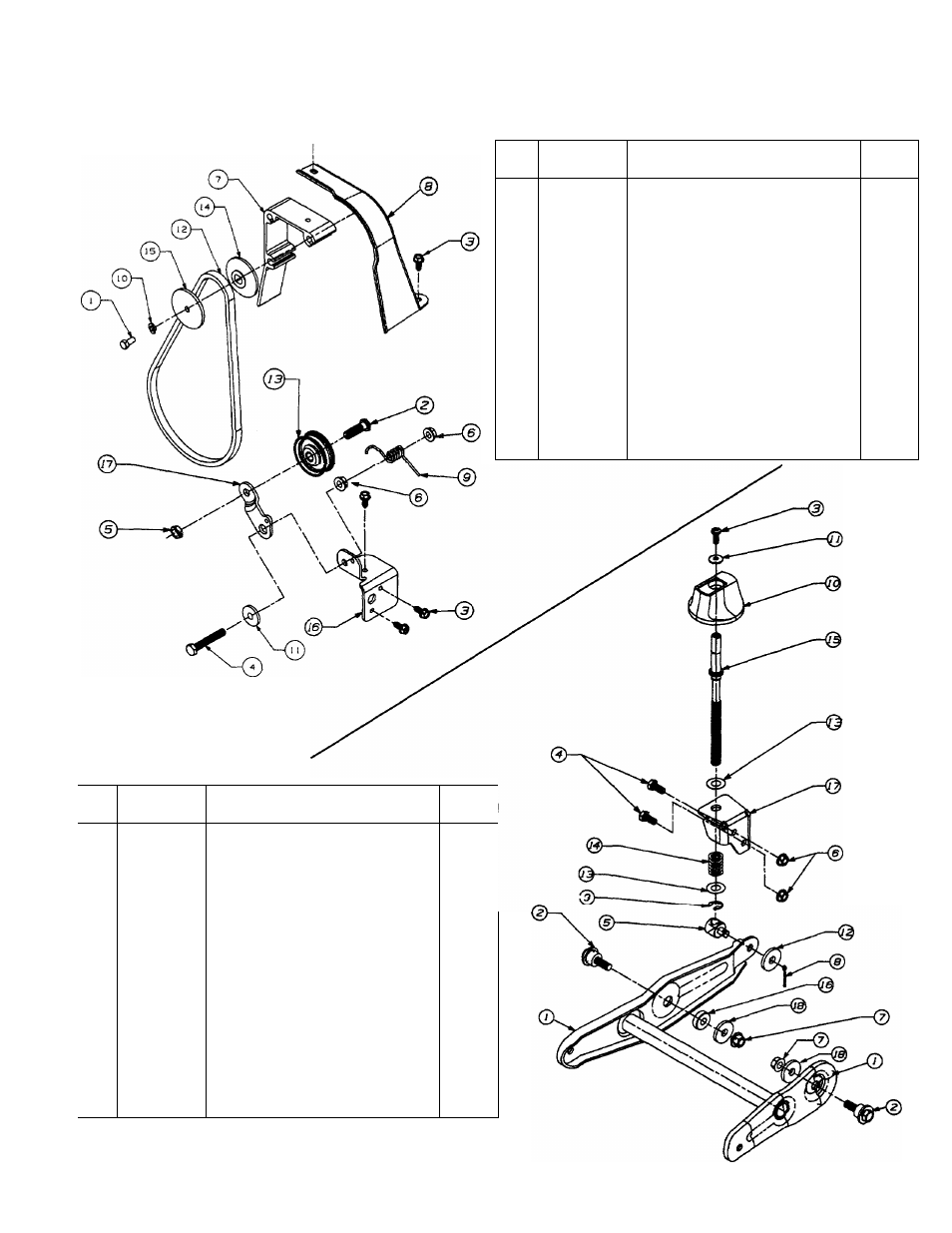

SEARS CRAFTSMAN CHIPPER-VACUUM MODEL 247.799630
Repair Parts
REF.
NO.
PART
NO.
DESCRIPTION
QTY.
1
710-0230
SCREW-HEX
1
2
710-0723
SCREW-HEX
1
3
710-0896
SCREW-HEX
5
4
710-0646
SCREW-HEX
1
5
712-0266
NUT-HEX LOCK
1
6
712-3004A
NUT-HEX LOCK FL
2
7
719-0330A
ADAPTER-MOUNTING
1
8
731-1646
COVER-BELT
1
9
732-0745
SPRING-TORSION
1
10
736-0329
WASHER-LOCK
1
11
748-0234
SHOULDER SPACER
1
12
754-0450
V-BELT
1
13
756-0313
IDLER-FLAT
1
14
756-0985
PULLEY
1
15
756-0984
PULLEY
1
16
781-0667
BRACKET-IDLER PIVOT
1
17
781-0614
BRACKET-IDLER
1
REF.
NO.
PART
NO.
DESCRIPTION
QTY.
1
681-0096
BRKT. ASSY.-WHEEL PIVOT
1
2
738-0955
SCREW-SHOULDER
2
3
710-0924
SCREW-MACHINE PAN HD.
1
4
710-3008
SCREW-HEX
2
5
711-1041
FERRULE-ADJUSTABLE
1
6
712-3004A
NUT-HEX FLANGE
2
7
712-0431
NUT-HEX FLANGE LOCK
2
8
714-0115
PIN-COTTER
1
9
716-0104
E-RING
1
10
720-0236
PLASTIC KNOB
1
11
736-0270
BELL WASHER
1
12
736-0300
FLAT WASHER
2
13
736-0369
FLAT WASHER
2
14
732-0645
COMPRESSION SPRING
1
15
747-0631
ADJUSTABLE ROD
1
16
711-0242
SPACER
1
17
781-0605
BRKT.-HEIGHT ADJ.
1
18
736-0247
FLAT WASHER
2
