SEARS CRAFTSMAN 5.5 H.P. ENGINE MODEL NO. 143.965501
FOR CHIPPER-VACUUM MODEL NO. 247.799630

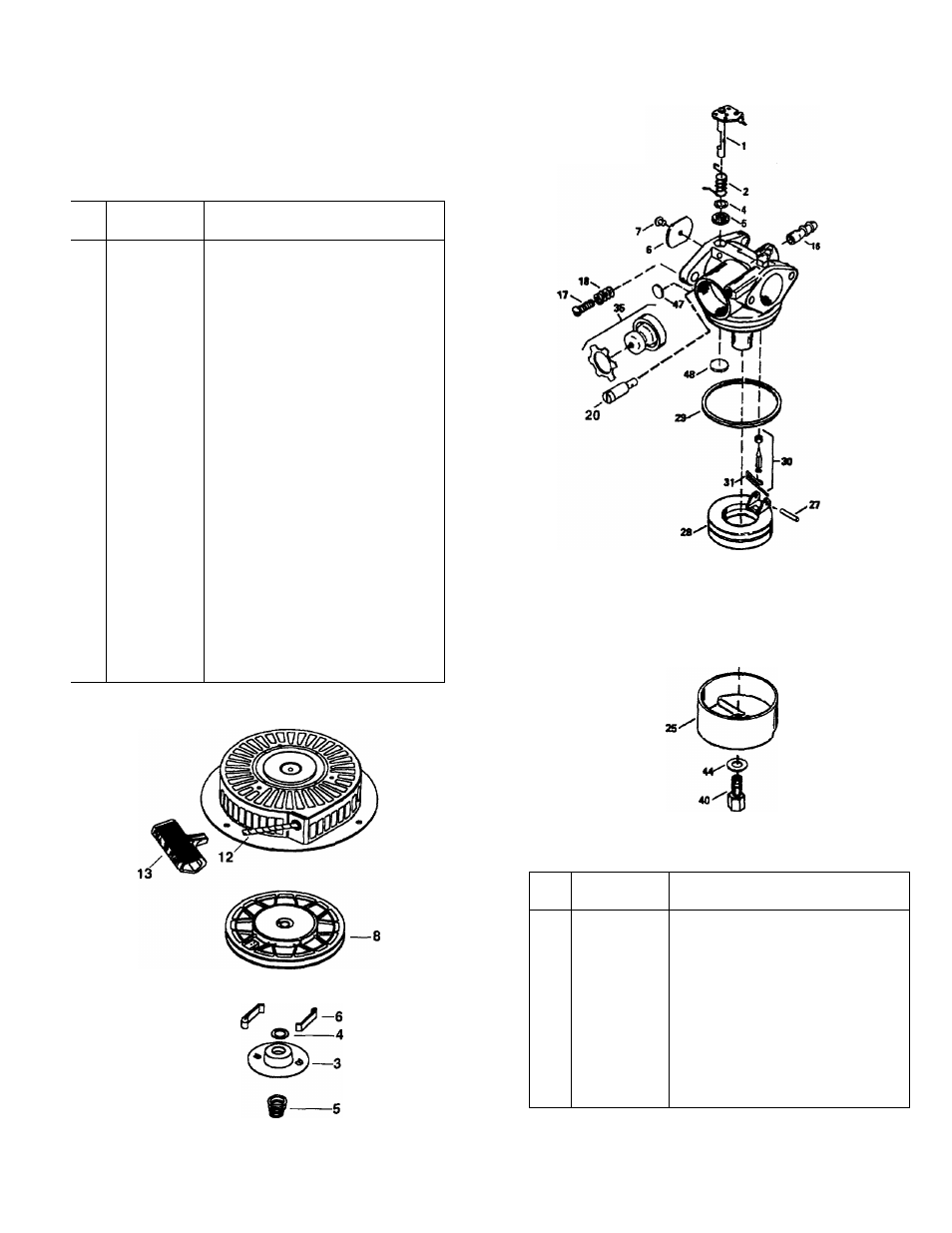

Repair Parts
PARTS LIST FOR CARBURETOR
KEY
NO.
PART
NO.
DESCRIPTION
— 640025 Carburetor (Incl. 184 or Engine
Parts List)
1 631615 Throttle Shaft & Lever Assembly
2 631767 Throttle Return Spring
4 631184 Dust Seal Washer
5 631183 Dust Seal (Throttle)
6 631036 Throttle Shutter
7 650506 Shutter/".. •'«
16 632164 Fuel Fi
17 650417 Throttle C. ..oK Screw/ldle Speed
Screw
18 630766 Tension Spring
20 640018 Restrictor Screw
25 631867 Float Bowl
27 631024 Float Shaft
28 632019 Float
29 631028 Float Bowl “0”-Ring
30 631021 Inlet Needle, Seat, & Clip
(Incl. 31)
31 631022 Spring Clip
35 36045 Primer Bulb/Retainer Ring
36 640019 Main Nozzle Tube
37 632547 “0”-Ring, Main Nozzle Tube
10 640015 High Speed Bowl Nut
14 27110 Bowl Nut Washer
17 630748 Welch Plug, Idle Mixture Well
18 631027 Welch Plug, Atmospheric Vent
i—37
-11
PARTS LIST FOR RECOIL STARTER
6—
KEY
NO.
PART
NO.
DESCRIPTION
_ 590736 Rewind Starter
1 590599A Spring Pin (Incl. 4)
2 590600 Washer
3 590696 Retainer
4 590601 Washer
5 590697 Brake Spring
6 590698 Starter Dog
7 590699 Dog Spring
8 590700 Puiley & Rewind Spring Ass’y.
11 590705 Starter Housing Ass’y.
12 590535 Starter Rope (98" x 9/64" Dia.)
13 590701 Starter Handle
O---------- 2
0
31
