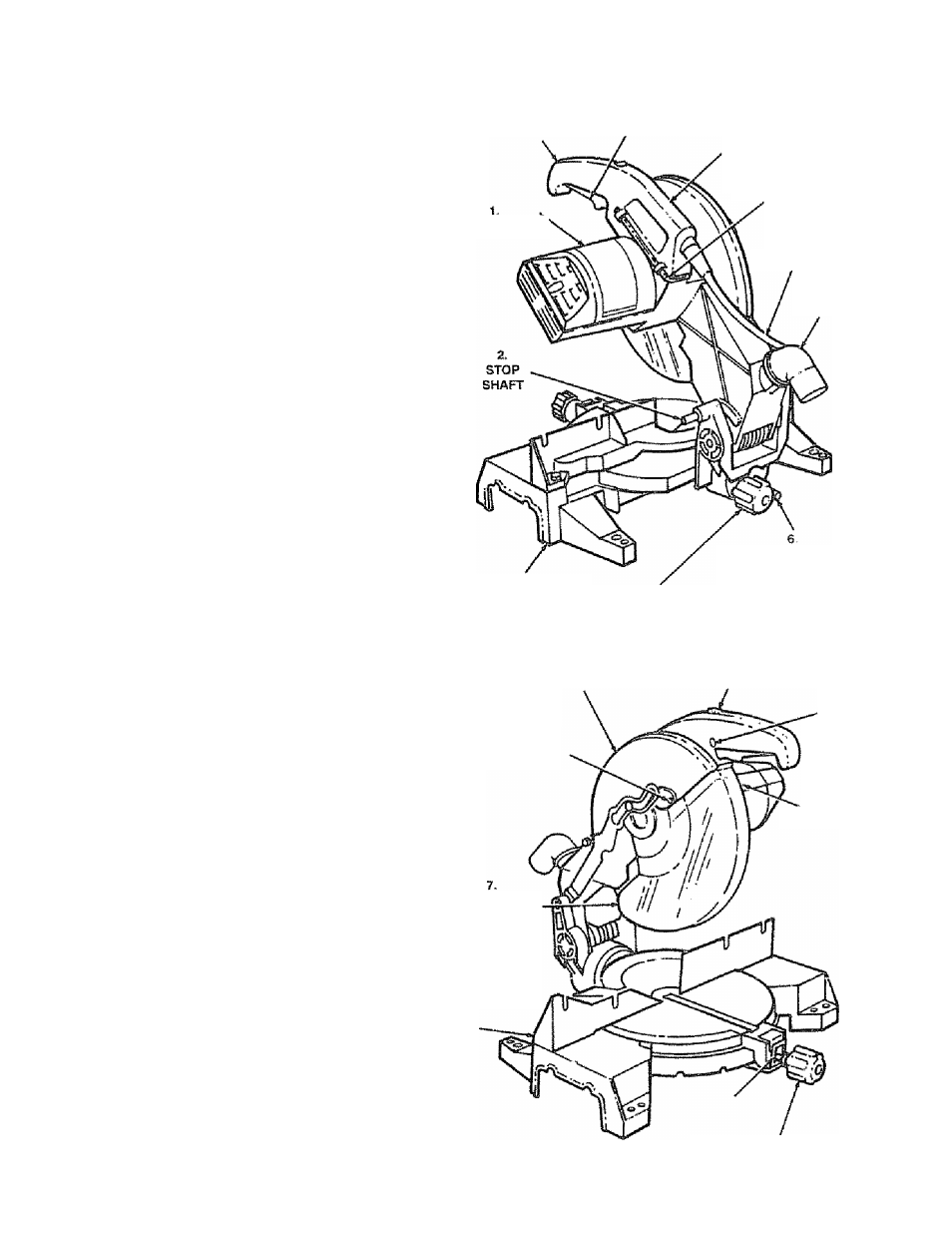

Getting to Know Your Miter Saw-
8,
MITER SAW
SWITCH HANDLE
WARNING LABEL
1 vV'aming fabei,
2. Stop Shaft - The miter saw can be locked in the
lowered position for compact storage.
3 Miter Lock Knob - The miter lock knob securely
locks the miter saw at a desired miter angle Index
points have been provided at 0, 22*5 R/L, and 45
R/L
4 Miter index Spring - Loosen Miter Lock Knob and
depress the index spring to move out of 0,22-1/2" &.
45° indexes
5 Bevei Lock Knob - The bevel lock knob locks the
miter saw at a desired bevel angle* Model
113 235200 only
6. Bevel Index Pin - This pin allows for quick 0" and
45" bevel settings. The pin may also be pulled out
far enough to override the stops. Mode!
113.235220 & 113 235240 only,
7 Lower Blade Guard - The blade guard helps pro­
tect your hands from the blade in the raised posi­
tion. To avoid binding on the workpiece, it retracts
as the blade is lowered
8, Miter Saw Switch Handle - The saw handle con­
tains the trigger switch with a lock-off button The
blade is lowered into the workpiece by pushing
down on the handle. The saw will return to its
upright position when the handle is released.
9 On-Off Trigger Switch - To prevent the trigger
from being accidentally engaged, a lock-off button
is provided To start the tool, push the lock-off but­
ton forward and squeeze the trigger. Release the
trigger to stop the miter saw,
10. Padlock Hole - A hole in the switch trigger and
handle has been provided so that a padlock {not
supplied) could be attached to prevent unautho­
rized use,
11 Miter Saw Carry Handie - After locking the power
head in the lowered position with the stop shaft, the
saw is conveniently carried using this handle,
12 Cover Plate Stop Screw - When this screw Is
loosened, the cover plate is rotated to the rear,
allowing for blade removal/repiacement.
13 Arbor Lock (Model 113.235220 & 113-23S240
Only) - Allows the user to keep the blade from
rotating while tightening or ioosening the arbor
lower blade
screw during blade replacement or removal. guard
14. Combination Wrench - Used for 1/4" hex and
Phillips head screw adjustments. Storage is provid­
ed as shown,
15, Base - Supports table, holds accessories and
allows for workbench or legset mounting
FENCH
9.
TRIGGER SWiTCH
11
MITER SAW
CARRY HANDLE
14*
COMBINATION
WRENCH
POWER CORO
ELBOW
15.
BASE
BEVEL INDEX
PIN MODEL 113.23S220 &
113.235240 ONLY
BEVEL LOCK KNOB
MODEL 113 23S220 &
113 235240 ONLY
UPPER BLADE
GUARD
LOCK OFF
BUTTON
12 .
COVER PLATE
STOP SCREW
10 .
PADLOCK
HOLE
13„
ARBOR LOCK
4-
MITER INDEX
SPRING
3.
MITER LOCK KNOB
