SECTION 5. CARE FOR THE MACHINE

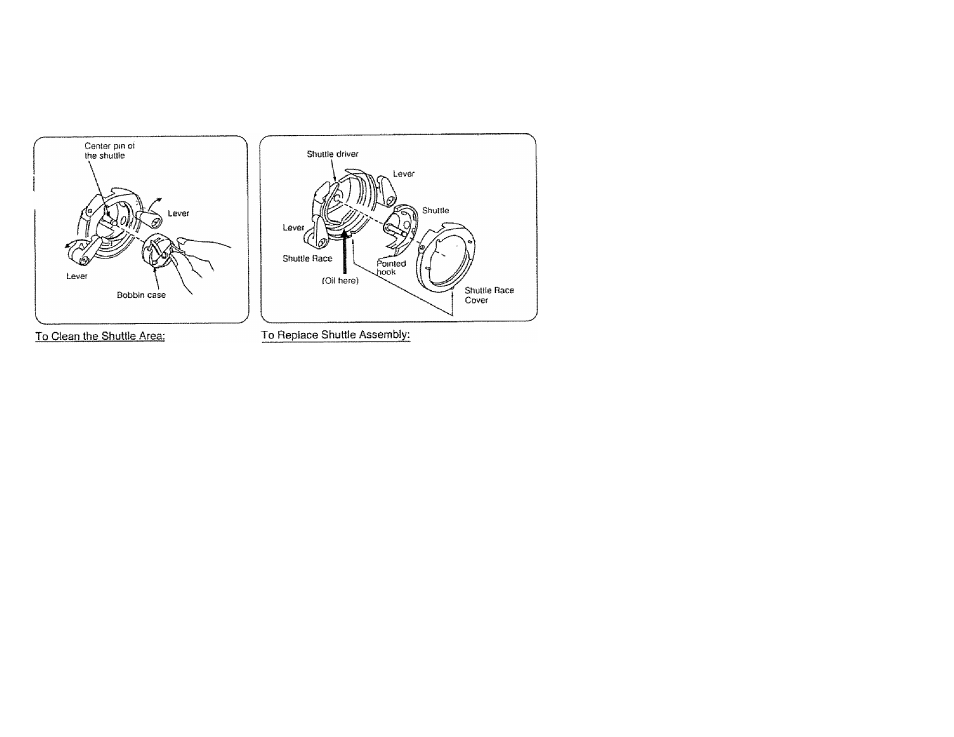

• Clean the Shuttle Race

This area must be kept tree ot dust, lint and occasional tangled thread. Clean the shuttle race area about

every three months.

1. Raise the needle bar to its highest point

and remove the bobblr? case.

2. Push shuttle race levers aside. Lift

shuttle race cover and take shuttle out.

3. Glean the shuttle race with a lint brush.

4. Put a drop of oil on the center pin of the

shuttle and shuttle race. Do not over-oil.

1, Position shuttle race as illustrated so that shuttle

driver Is forming half moon on the left side ol the

machine.

2, Hold shuttle by center pin and position shuttle so as

to form a half moon on the right side. Pointed hook
will be on the bottom.

3, Place shuttle race cover into place over shuttle

assembly.

4, Snap the levers back into the original position.
