assembly

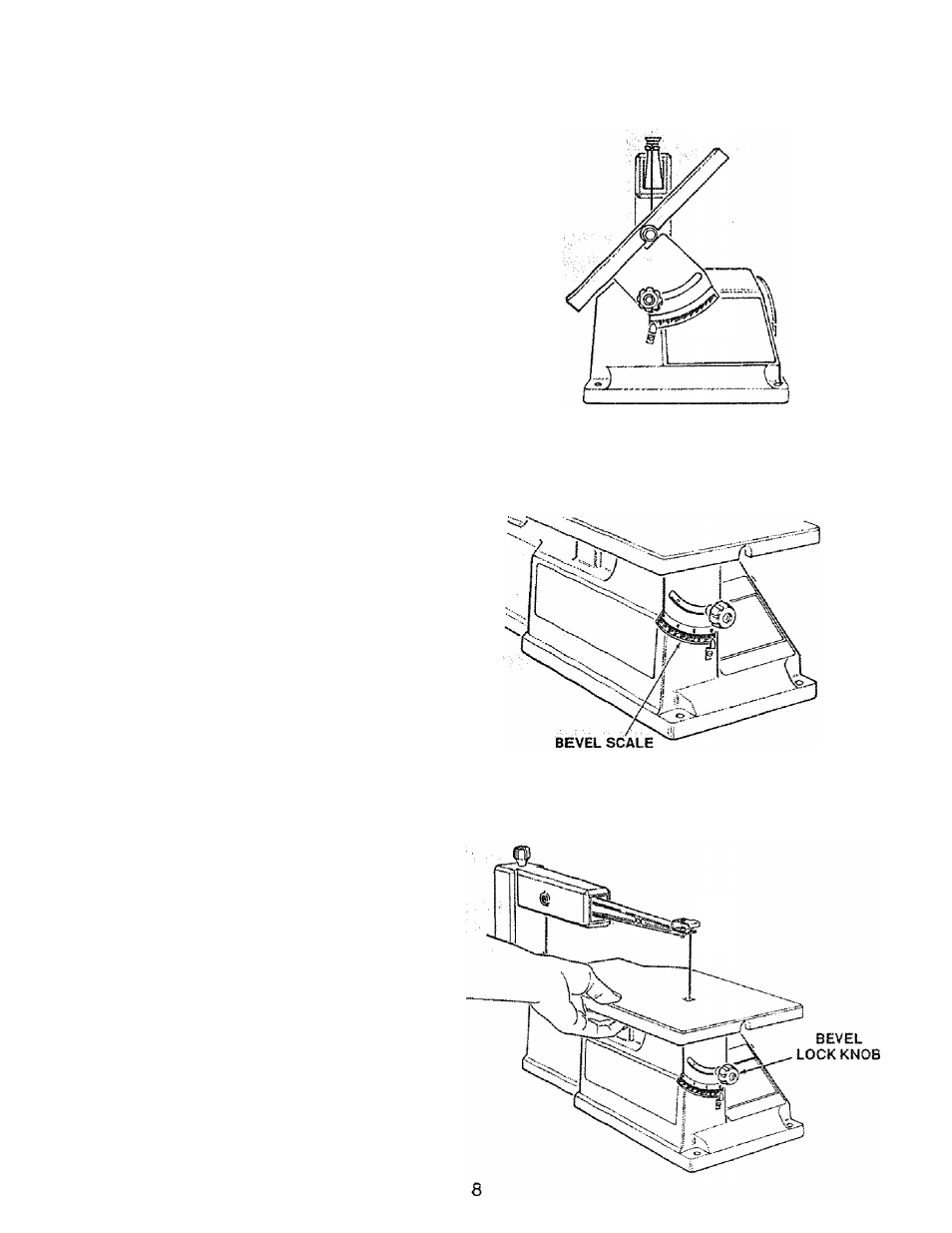

SETTING THE TABLE FOB HORIZOUtAL
OR BEVEL CUTTING
1 The scroll saw work table can be tilted to the left
lor bevel cutting up to 45“^ from the 0® or
horizontal cutting positionv ;
^ ^ ^
2. A bevel scale is provided under the work table as
a convenient reference for setting the approximate
table angle for bevel cutting.
When greater precision is required, make practice
cuts and adfusi the table as necessary for your
requirements.
TO ALIGN THE BEVEL iNDICATOR
1. Loosen the table bevel lock knob and move the
table until it is approximately perpendiculari or at a
right angle, to the blade.
^ ^ ^
