Outdoor (Condenser) Air Fan Adjustment

(Fig. 21) — Shut off unit power supply Remove fan

guard and loosen fan hub setscrews Adjust fan height

using a straight edge laid across venturi. Tighten set­

screws and replace rubber hubcap to prevent hub from

rusting to motor shaft. Fill hub recess with Permagum
if hub has no rubber hubcap.

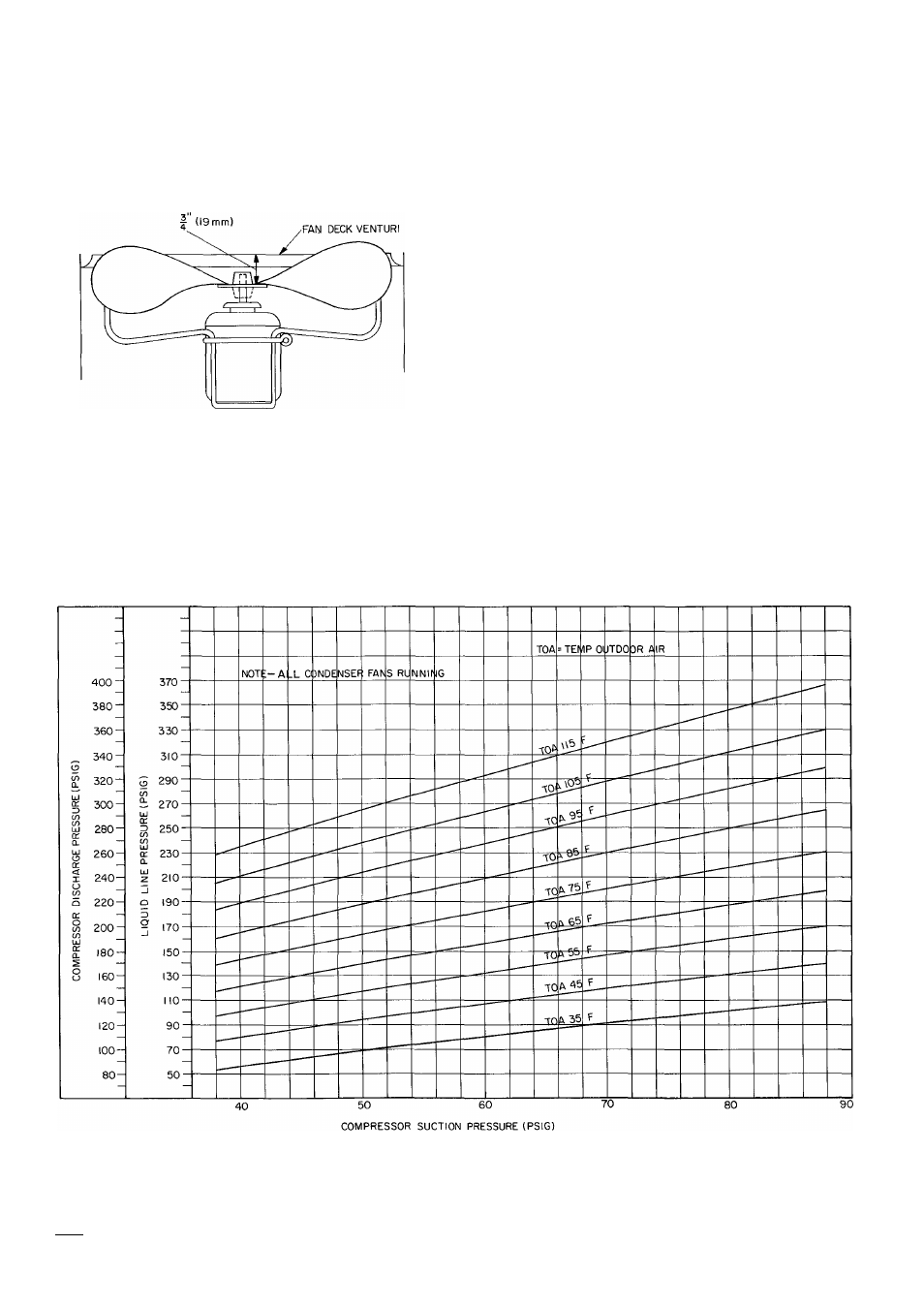

Fig. 21 — Outdoor Air Fan Adjustment

Damper Vent Position Setting
1. On constant volume units, adjust thermostat or trans­

mitter so there is no call for cooling. On variable

volume units, adjust set point knob on microprocessor
so there is no call for cooling. The economizer
dampers go to minimum position

2 Remove cap from vent adjustment screw on top of

damper motor terminal box cover

3. Turn adjustment screw slowly until dampers assume

desired vent position. Do not manually operate
clamper motor. Damage to motor will result.

POWER FAILURE — Dampers have a spring return.
In the event of a loss of power, dampers close until power
is restored Do not manually operate damper motor.

Damage to motor will result.

Refrigerant Charge — Amount of refrigerant charge

is shown on unit nameplate and in Table 1. When charg­
ing refrigerant system, refer to Carrier Standard Service

Techniques Manual, Chapter 1, Refrigerants. When

adding a complete charge, evacuate the system using
standard evacuating procedures and weigh in specified
amount of refrigerant. A charging chart (Fig. 22) is pro­
vided on unit control box door above compressor and
may be used (use of sight glass not required).

When using refrigerant liquid line sight glass to charge

system:

1. Install a jumper on the low-pressure switch if required.

2. Operate unit with restricted condenser airflow to

achieve an operating discharge pressure of about
375 psig.

3. Slowly add refrigerant until sight glass clears.

4. Remove jumper from low-pressure switch and remove

condenser air restriction.

Fig. 22 — Charging Chart; 50DF034, System 1 and System 2
