Winco ECO32 Revision 32 2012 - Manual (Page 77)

ECO-ECP MANUAL September 2012 revision 32 77

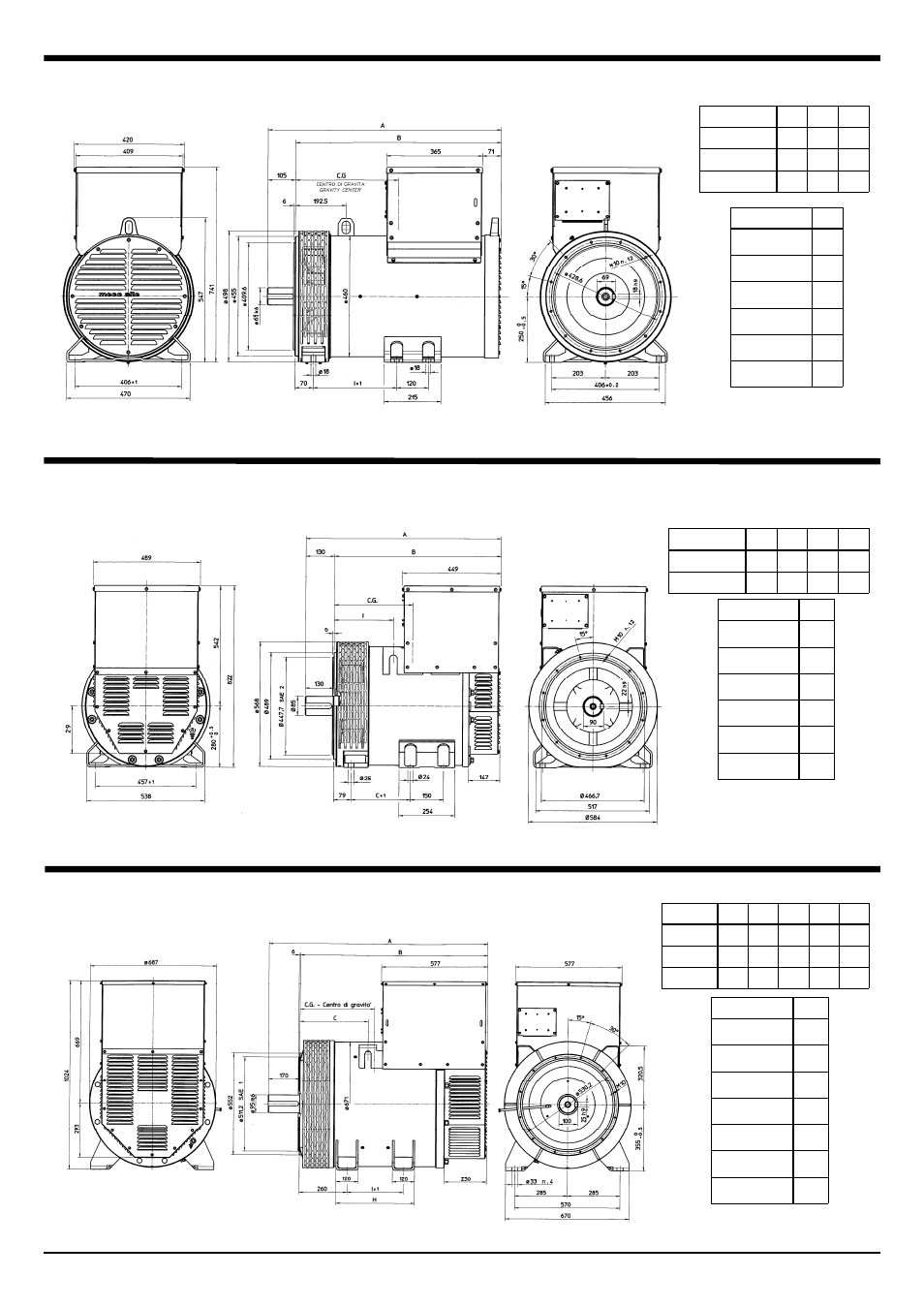

ECO 38N
FORMA FORM FORME B3/B14
ECO 40
FORMA FORM FORME B3/B14
dimensions in mm
dimensions in mm
ECP 34
FORMA FORM FORME B3/B14
dimensions in mm
TIPO / TYPE CG*
34-1S/4 310
34-2S/4 350
34-1L/4 365
34-2L/4 390
34-1.5VS/4 287
34-3L/4 390
* Center of Gravity
TIPO / TYPE A B I
34 S 806,5 701,5 227
34 L 886,5 781,5 317
34 VS 702 597 227
TIPO / TYPE CG*
38-1SN/4 358
38-2SN/4 371
38-3SN/4 385
38-1LN/4 400
38-2LN/4 437
38-3LN/4 476
TIPO / TYPE A B C I
38 SN 888 758 270 269
38 LN 1098 968 430 479
* Center of Gravity
TIPO / TYPE CG*
40-1S/4 362
40-2S/4 372
40-3S/4 442
40-1L/4 537
40-1.5L/4 542
40-2L/4 547
40-VL/4 594
* Center of Gravity
TIPO / TYPE A B C I H
40 S 1187 1017 369,5 305 425
40 L 1352 1182 534,5 470 590
40 VL 1452 1282 634,5 470 590
