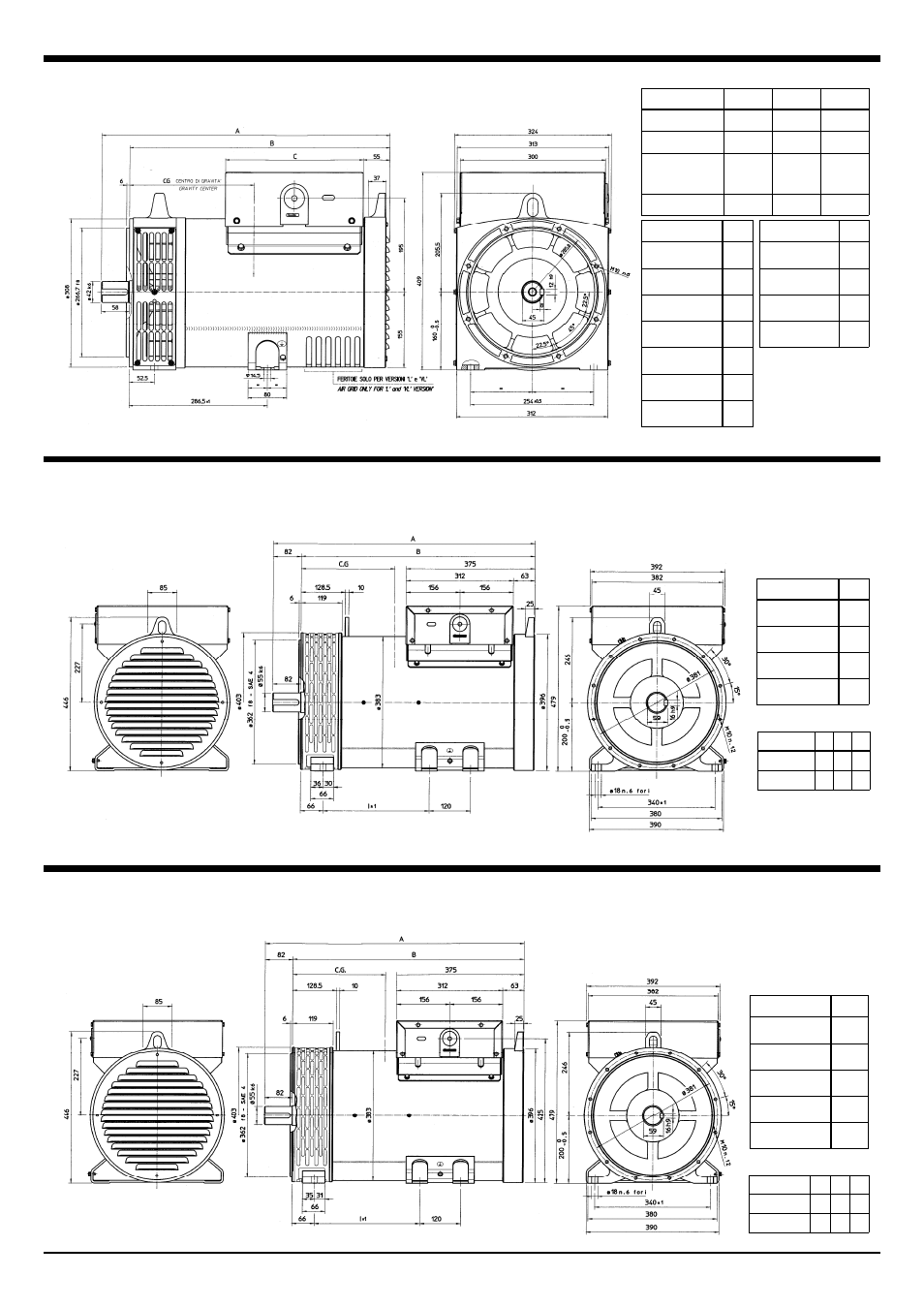

ECP 28
FORMA FORM FORME B3/B14
dimensions in mm
ECO 31N
FORMA FORM FORME B3/B14
dimensions in mm
ECO 32
FORMA FORM FORME B3/B14
dimensions in mm
TIPO / TYPE CG*
28-1VS/4 230
28-2VS/4 230
28-0S/4 235
28-S/4 237
28-1L/4 268
28-2L/4 275
28-VL/4 286
TIPO / TYPE CG*
28-1L/2 267
28-2L/2 271
28-3L/2 275
28-VL/2 291
TIPO / TYPE A B C
28 1VS/4-2VS/4 476 418 225
28 0S/4-S/4 516 458 285
28 1L/4-2L/4
28 1L/2-2L/2
28 3L/2
596 538 285
28 VL 626 568 285
* Center of Gravity
TIPO / TYPE CG*
31-2S/2 272
31-3S/2 285
31-1L/2 311
31-2L/2 336
* Center of Gravity
TIPO / TYPE A B I
ECO 31 S 658 576 205
ECO31 L 763 681 310
TIPO / TYPE CG*
32-2S/4 269
32-3S/4 274
32-1L/4 316
32-2L/4 330
32-3L/4 351
* Center of Gravity
TIPO / TYPE A B I
ECO 32 S 638 556 185
ECO32 L 763 681 310
