Right Angle Bracket 83-962-000

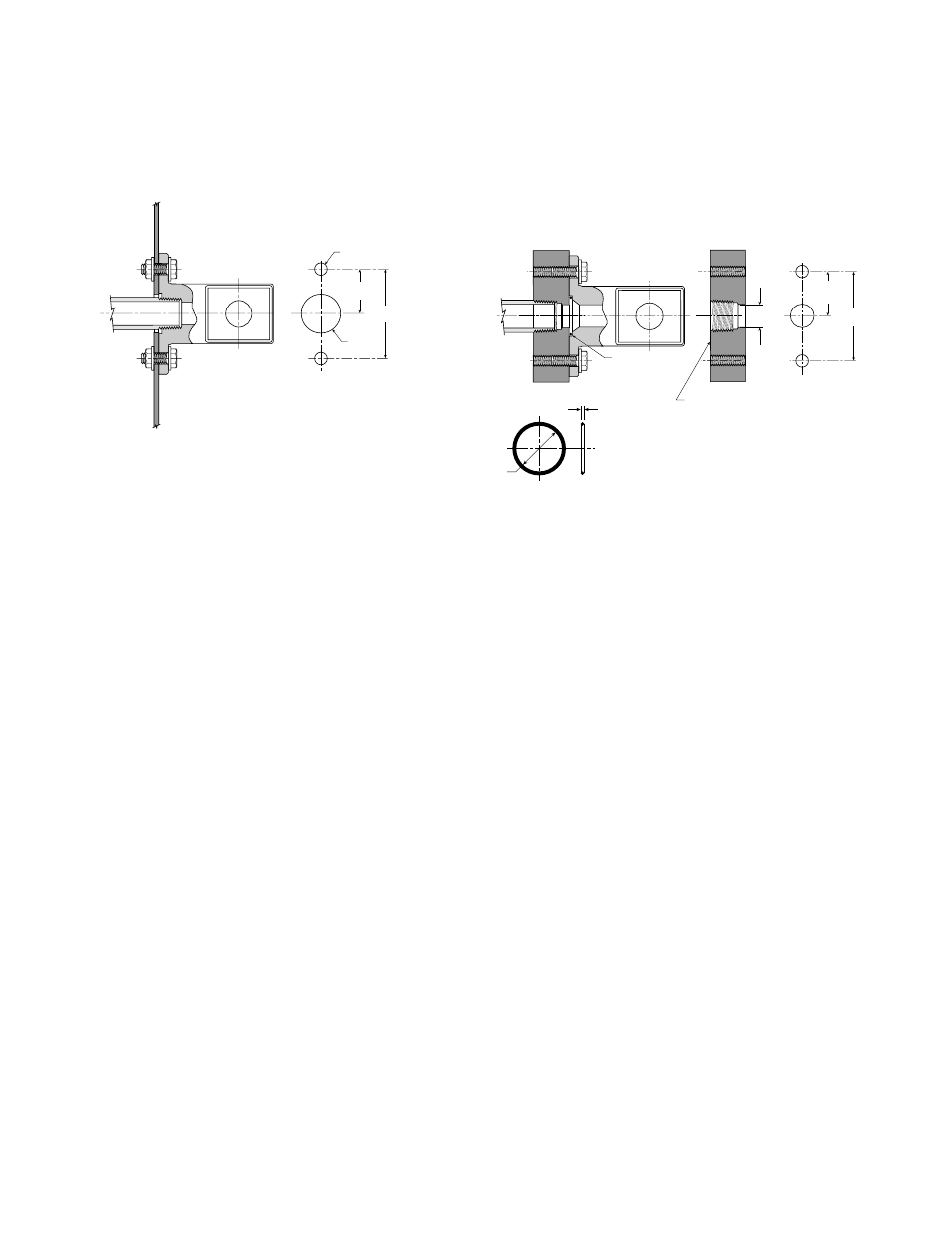

Direct Pipe Ported Method Manifold Mounting Method
Direct Piped Method
The direct piped method is used when the right angle bracket is
bolted to the user’s machine and the inlet and outlet pipe is
screwed directly into the back of the ninety degree bracket.
A through hole must be provided in the user’s machine to allow
access for the inlet and outlet pipe.
Manifold Method
This method is used when the right angle bracket is mounted to
the user’s manifold. The inlet and outlet pipe is screwed into the
manifold. An o-ring is used to seal between the bracket and
manifold.
1.142
29,0mm
2.383
58,0mm
.88Dia.
22,4mm
.28 Dia.
(7.1mm)
Mounting Holes Mounting Holes
Manifold
Not Included With
Right Angle Bracket
O-Ring
.103
.737 ID
1.142
29,0mm
2.383
58,0mm
.50 Dia.
12,7mm
