Wilkerson L42 - Manual

83-300-000 REV REL 8/95
Printed in the U.S.A. NNR=NOT NORMALLY REPLACED
WARNING
DO NOT PLACE PLASTIC BOWL UNIT IN SERVICE
WITHOUT METAL BOWL GUARD INSTALLED
Plastic bowl units are sold only with metal bowl guards. To minimize the danger of flying fragments in
the event of plastic bowl failure, the metal bowl guards should not be removed. If the unit is in service
without the metal bowl guard installed, manufacturer's warranties are void, and the manufacturer
assumes no responsibility for any resulting loss.
IF UNIT HAS BEEN IN SERVICE AND DOES NOT HAVE A METAL BOWL GUARD, ORDER ONE
AND INSTALL BEFORE PLACING BACK IN SERVICE..
CAUTION
Certain compressor oils, chemicals, household cleaners, solvents, paints and fumes will attack plastic
bowls and can cause bowl failure. Do not use near these materials. When bowl becomes dirty replace
bowl or wipe only with clean, dry cloth. Reinstall metal bowl guard or buy and install a metal bowl guard.
Immediately replace any crazed, cracked, damaged or deteriorated plastic bowl with a metal bowl or a
new plastic bowl and metal bowl guard.
SOME OF THE MATERIALS THAT WILL ATTACK
POLYCARBONATE PLASTIC BOWLS.
Acetaldehyde Chlorobenzene Methylene chloride
Acetic acid (conc.) Chloroform Methylene salicylate
Acetone Cresol Milk of lime (CaOH)
Acrylonitrile Cyclohexanol Nitric acid (conc.)
Ammonia Cyclohexanone Nitrobenzene
Ammonium flouride Cyclohexene Nitrocellulose lacquer
Ammonium hydroxide Dimethyl formamide Phenol
Ammonium sulfide Diozane Phosphorous hydroxy
Anaerobic adhesives Ethane tetrachloride chloride
and sealants Ethyl acetate Phosphorous trichloride
Antifreeze Ethyl ether Propionic acid
Benzene Ethylamine Pyridine
Benzoic acid Ethylene chlorohydrin Sodium hydroxide
Benzyl alcohol Ethylene dichloride Sodium sulfide
Brake fluids Ethylene glycol Styrene
Bromobenzene Formic acid (conc.) Sulfuric acid (conc.)
Butyric acid Freon (refrig. & propell.) Sulphural chloride
Carbolic acid Gasoline (high aromatic) Tetrahydronaphthalene
Carbon disulfide Hydrazine Tiophene
Carbon tetrachloride Hydrochloric acid (conc.) Toluene
Caustic potash solution Lacquer thinner Turpentine
Caustic soda solution Methyl alcohol Xylene
Perchlorethylene
and others
TRADE NAMES OF SOME COMPRESSOR OILS, RUBBER COMPOUNDS AND
OTHER MATERIALS THAT WILL ATTACK POLYCARBONATE PLASTIC BOWLS.
Atlas "Perma-Guard" National Compound #N11
Buna N "Nylock" VC-3
Cellulube #150 and #220 Parco #1306 Neoprene
Crylex #5 cement *Permabond #910
*Eastman 910 Petron PD287
Garlock #98403 (polyurethane) Prestone
Haskel #568-023 Pydraul AC
Hilgard Co.'s hil phene Sears Regular Motor Oil
Houghton & Co. oil #1120. #1130 & #1055 Sinclair oil "Lily White"
Houtosafe 1000
Stauffer Chemical FYRQUEL #150
Kano Kroil Stillman #SR 269-75 (polyurethane)
Keystone penetrating oil #2 Stillman #SR 513-70 (neoprene)
*Loctite 271 Tannergas
*Locite 290 Telar
*Loctite 601 Tenneco anderol #495 & #500 oils
Loctite Teflon-Sealant Titon
Marvel Mystery Oil *Vibra-tite
Minn. Rubber 366Y Zerex
*When in raw liquid form.
WE CANNOT POSSIBLY LIST ALL HARMFUL SUBSTANCES, SO CHECK WITH MOBAY
CHEMICAL OR THE GENERAL ELECTRIC OFFICE FOR FURTHER INFORMATION ON POLY-
CARBONATE PLASTIC.
CAUTION
EXCEPT as otherwise specified by the manufacturer, this product is specifically designed for com-
pressed air service, and use with any other fluid (liquid or gas) is a misapplication. For example, use
with or injection of certain hazardous liquids or gases in the system (such as alcohol or liquid petro-
leum gas) could be harmful to the unit or result in a combustible condition or hazardous external
leakage. Manufacturer's warranties are void in the event of misapplication, and manufacturer
assumes no responsibility for any resulting loss. Before using with fluids other than air, or for non-
industrial applications, or for life support systems consult manufacturer for written approval.
(see reverse side for Installation and Maintenance Instructions)

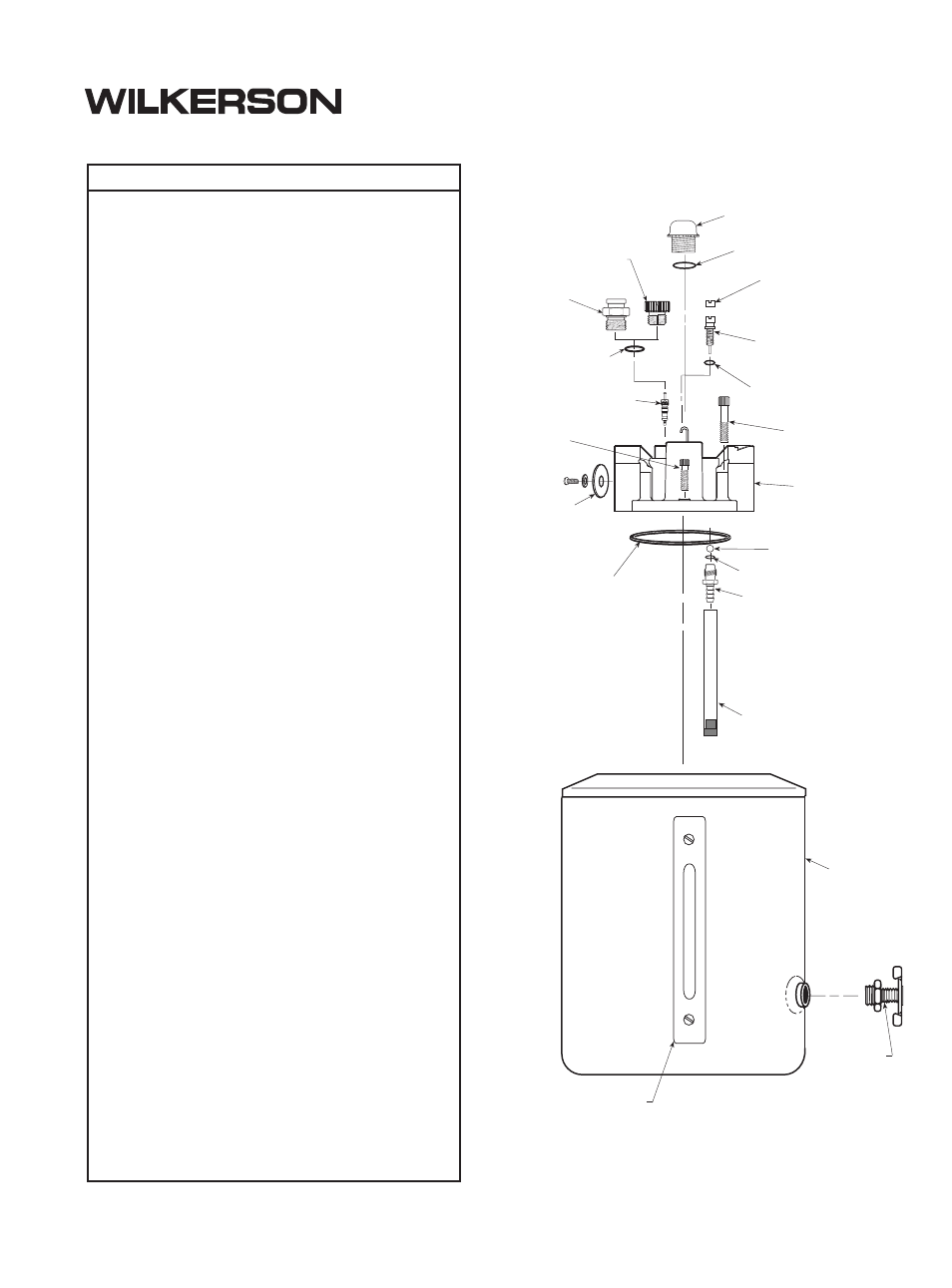

BODY
NNR
CHECK
VALVE
ADJUSTING
SCREW
O-RING
FORCE-FILL
ADAPTER KIT
FILL PLUG
SIGHT DOME
O-RING
O-RING
TAMPER-RESISTANT
KIT (Optional)
FLOW-GUIDE®
VARIABLE
ORIFICE
SCREW
(4 Required)
SCREW
(2 Required)
SIPHON TUBE
ADAPTER
O-RING
BALL
GASKET
TANK
NNR
PETCOCK
SIGHT GAUGE
(See Reverse Side
for Part Numbers
and Breakdown)
INSTALLATION AND
MAINTENANCE SHEET
Lubricator Model L41/L42
with Variations and Accessories
®
OPERATIONS
