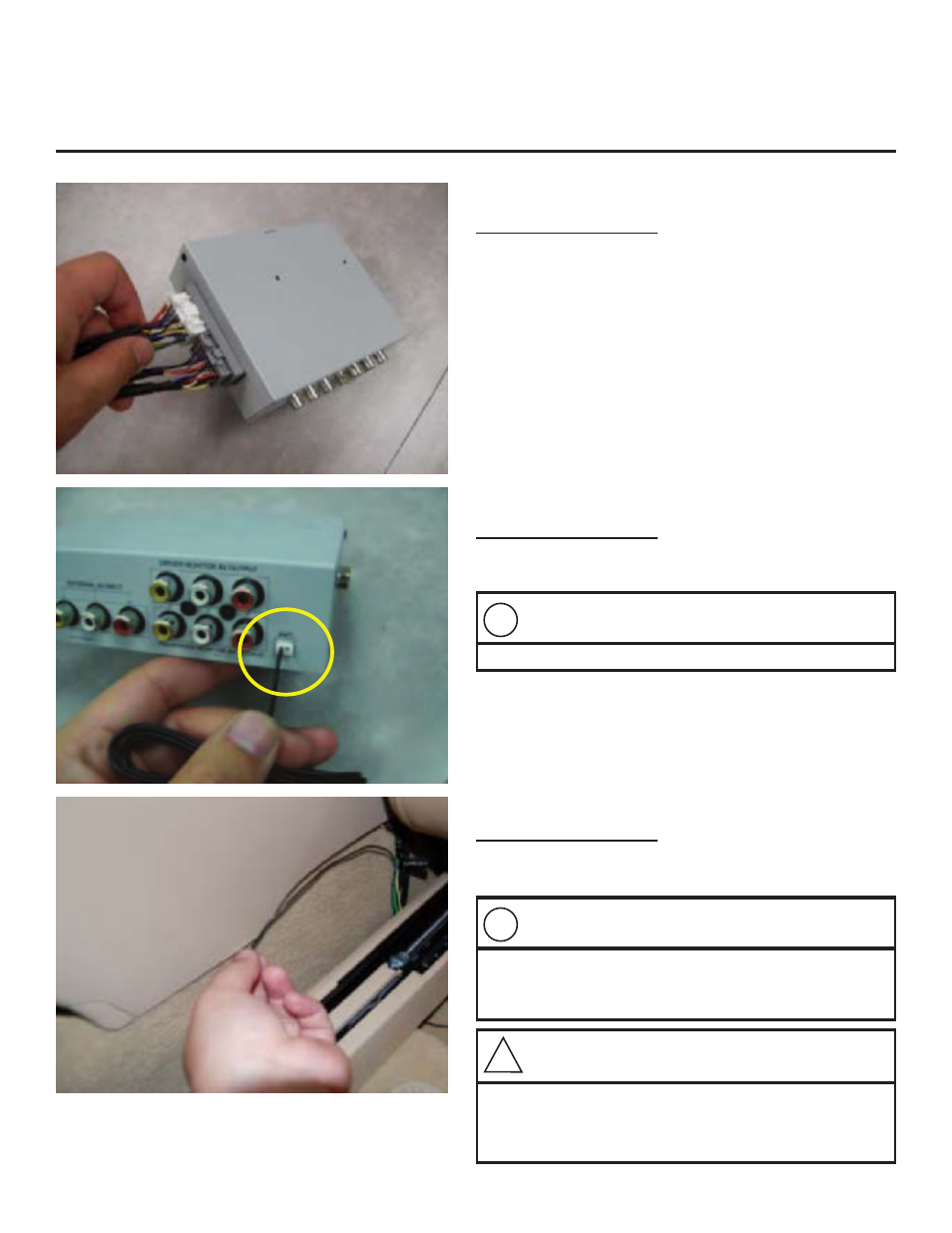

Step #14
A/V Box Installation:
Connect the A/V Power Harness to the A/V Box.
Step #15
A/V Box Installation:
Also connect the FM Modulator Antenna at this
time.
!
Note:
Not applicable for units sold in the E.U.
Step #16
A/V Box Installation:
Make sure to route the FM Modulator Antenna along
the rear of the center console.
!
Note:
The A/V Box can be set aside until both the
driver and passenger side headrest are
installed.
!
Warning:
Pay attention to the routing of wires, wiring connections,
and harnesses. Keep clear of moving parts that could
cut, damage or crush them, resulting in damaged or
inoperative system.
